Overview
ISO 6123-3:2026, published by the International Organization for Standardization (ISO), defines the dimensional and geometrical tolerances for rubber or plastics covered rollers. This standard outlines tolerance classes for roller diameter, cover length, radial run-out, cylindricity, and crown, alongside standardized test methods for measurement. The document ensures clarity and uniformity in roller manufacturing-critical for industries where precise roller operation influences equipment longevity, product quality, and process reliability.
Key Topics
- Dimensional Tolerances: ISO 6123-3:2026 establishes tolerance classes for roller diameters, taking into account roller rigidity, cover hardness, and length-to-diameter ratios.
- Classes include XP (high precision), P (precision), M (medium), and N (non-critical).
- Geometrical Tolerances: The standard covers geometric parameters such as cylindricity, crown, and radial run-out, referencing ISO 1101 for form tolerancing.
- Test Methods: Standardized procedures are described for measurement, including temperature conditioning (aligned with ISO 23529), use of suitable instruments (calipers, dial gauges, laser measurement), and specification of test pressures depending on material hardness.
- Tolerance Classes: Choice of tolerance class depends on application needs, roller type and cover hardness, with higher precision achievable by supplier-user agreement.
- Application-Specific Adaptation: Tolerances for rollers of insufficient rigidity or exceptional size must be individually agreed upon, ensuring flexibility in the standard’s application.
Applications
ISO 6123-3:2026 is essential in sectors utilizing rubber or plastics covered rollers-such as printing, packaging, textiles, paper production, and manufacturing processes. The document:
- Ensures Product Consistency: By specifying acceptable tolerance ranges, the standard mitigates variability in roller dimensions and performance, leading to consistent product quality.
- Facilitates International Trade: Conformance to an ISO standard assures customers and regulatory bodies of the reliability and interoperability of roller products across markets.
- Supports Equipment Reliability: Properly specified tolerances reduce the risk of misalignment, excessive wear, or vibration during operation, prolonging equipment life and minimizing maintenance.
- Guides Procurement and Inspection: Purchasing specifications and inspection protocols can directly reference ISO 6123-3:2026, streamlining quality assurance and compliance.
- Custom Solutions: The ability to assign different tolerance classes to different roller parameters provides manufacturers and end-users flexibility to optimize cost and performance.
Related Standards
- ISO 6123-1: Rubber- or plastics-covered rollers - Part 1: Principal dimensions and tolerances.
- ISO 1101: Geometrical product specifications (GPS) - Geometrical tolerancing - Tolerances of form, orientation, location and run-out.
- ISO 23529: Rubber - General procedures for preparing and conditioning test pieces for physical test methods.

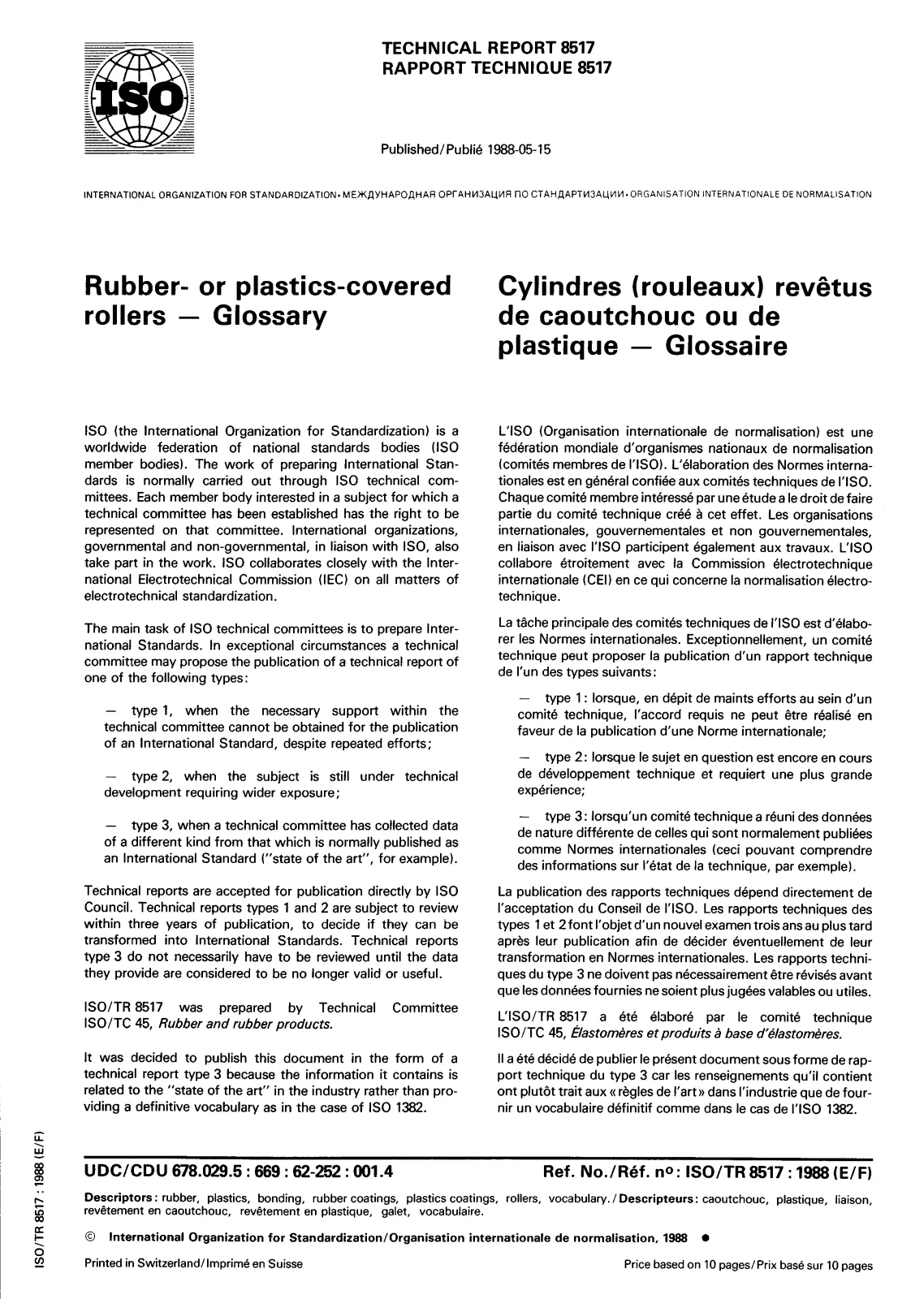

- ISO/TR 8517: Rubber- or plastics-covered rollers - Glossary.
Practical Value
By adhering to ISO 6123-3:2026, manufacturers of covered rollers can guarantee that their products meet globally recognized standards for accuracy and quality. End-users-especially those in precision-driven sectors-benefit from clear classification and validation of roller tolerances, reducing operational risks and boosting process efficiency.
