Overview
ISO 6200:1999 is an international standard published by the International Organization for Standardization (ISO) that addresses density specifications and measurement methods for first generation silver-gelatin microforms of source documents. This standard focuses explicitly on negative-appearing microforms produced from source documents, establishing a consistent method to measure and specify the density of these microforms to ensure clarity, legibility, and quality.
The standard excludes microforms for technical drawings (covered in ISO 3272-2), diazo and vesicular films (covered in ISO 8126), and COM microforms (covered in ISO 8514). By standardizing density values and measurement techniques, ISO 6200:1999 helps maintain high-quality archival and reproduction microforms.
Key Topics
-
Method of Measurement
The standard requires the use of a densitometer compliant with ISO 5-2 and ISO 5-3 to measure standard diffuse visual densities. Measurements are to be taken through an aperture between 0.5 mm and 3.0 mm in diameter, ensuring uniform density areas fully cover the aperture. The emulsion side of the microform must face the sensor during measurement.
-
Density Specifications
ISO 6200:1999 defines background density values tailored to different groups of document quality:
- Group 1: Dense black characters and high-contrast lines - density range 1.00 to 1.50
- Group 2: General commercial documents with fine lines or medium contrast - 0.90 to 1.10
- Group 3: Low contrast documents - 0.80 to 1.00
- Group 4: Very low contrast documents - 0.70 to 0.85
Background density is measured as ISO standard visual diffuse densities, after subtracting the base plus fog value (which should be below 0.10 for clear bases).
- Quality Considerations
Documents with fine-line details or complex characters, such as Chinese or Japanese scripts, may require densities at the lower end of the specified ranges to maintain legibility. For double-sided documents with noticeable show-through, the density may be reduced to minimize overlapping images.
Applications
The ISO 6200:1999 standard is essential for organizations that produce and archive analog microform records, including:
- Archival institutions managing historic or legal documents in microformat
- Government agencies requiring standardized document reproduction for long-term storage
- Commercial microfilming services that produce film copies of source documents for business records
- Libraries and research centers preserving journals, manuscripts, and other printed materials in microform
- Quality control laboratories verifying microform densities to comply with industry requirements
By applying this standard, these entities can ensure microform images have consistent density levels, thereby improving image legibility, durability, and reproducibility.
Related Standards
- ISO 3272-2 - Micrographics: Standards for microforms of technical drawings
- ISO 8126 - Micrographics: Density measurement and specifications for diazo and vesicular films
- ISO 8514 - Standards related to COM (computer output microfilm) microforms
- ISO 5 series (5-1, 5-2, 5-3) - Terms, geometric, and spectral conditions for photographic density measurements
- ISO 6196 series - Micrographics vocabulary detailing terms related to image quality, materials, and equipment
These standards complement ISO 6200:1999 by providing comprehensive guidance on different types of microforms, measurement practices, and definitions for micrographic processes.
Keywords: ISO 6200, micrographics standard, silver-gelatin microforms, microform density measurement, ISO microfilm standard, microform quality control, archival microforms, densitometer microform, microfilm image density, first generation microforms

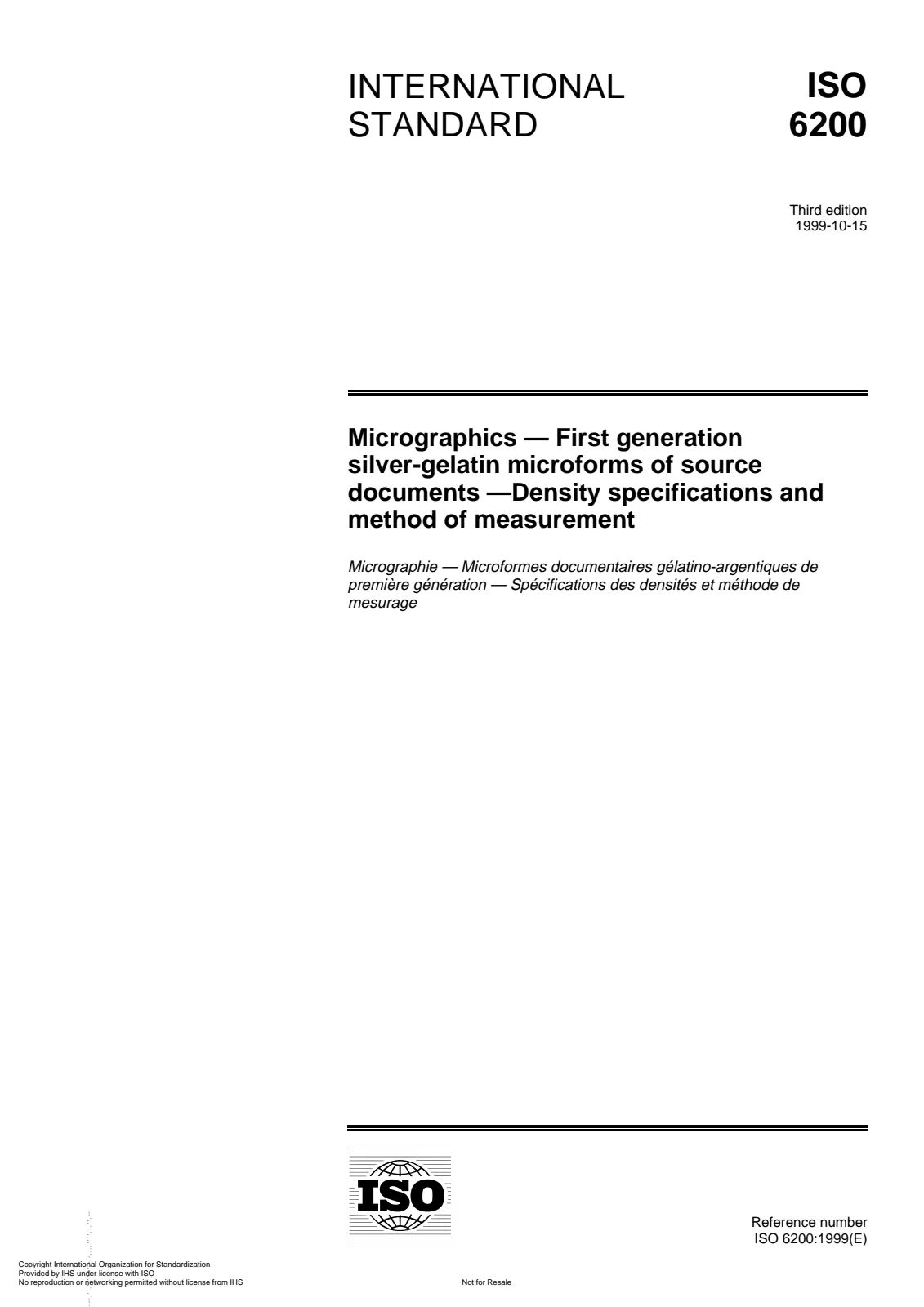

Open preview (PDF)Micrographics — First generation silver-gelatin microforms of source documents — Density specifications and method of measurement
