Overview
ISO 7077:1981 - Measuring methods for building - provides general principles and procedures for verifying dimensional compliance in building construction. It defines the scope and organization of verification measurements for setting out, component manufacture and assembly, and the completed building. The standard applies to all types of building construction and is intended to support consistent, reliable dimensional control on site and in prefabrication.
Key topics and requirements
- Scope and definitions: Establishes what is meant by a “verification measurement” (measurements to check compliance with specified admissible deviations for completed construction phases).
- Precision requirements: Recommends that the inherent standard deviation of a verification measurement procedure be roughly 1/10 of the admissible tolerance. (Equivalently, 2.5·σ ≈ 0.25 of the admissible deviation.) Verification methods must be significantly more precise than the tolerances they check.
- Measurement planning: A verification programme must list:
- operations to be measured,
- timing of measurements,
- reference physical conditions,
- detailed measurement methods,
- any other relevant notes (priority, acceptable corrective actions).
- Methods and references: Recommends using measurement methods described in ISO 4463 for many verification tasks. Other referenced standards include ISO 1803 (vocabulary) and ISO 4464 (tolerance relationships).
- Avoiding propagation of original errors: For building setting-out verification, measurements should, where possible, be performed by a different operator and a different instrument of comparable accuracy to avoid repeating errors from the original layout.
- Verification of the measurement method: Before use, the effective precision of the chosen measurement procedure must be verified under similar conditions by the person responsible for verification.
- Timing: Measurements should be scheduled early enough to allow corrective work if tolerances are exceeded.
Practical applications and users
ISO 7077:1981 supports:
- quality control and acceptance testing on construction sites,
- dimensional verification in prefabrication and component assembly,
- final inspection of building geometry and tolerances,
- contractual compliance checks between clients, contractors and manufacturers.
Typical users:
- site surveyors and geometric control technicians,
- construction quality managers and inspectors,
- architects and engineers managing tolerance specifications,
- prefabrication and off-site manufacturing teams.
Related standards
- ISO 4463 - Methods of measuring for building (measurement techniques)
- ISO 1803 - Tolerances for building - Vocabulary

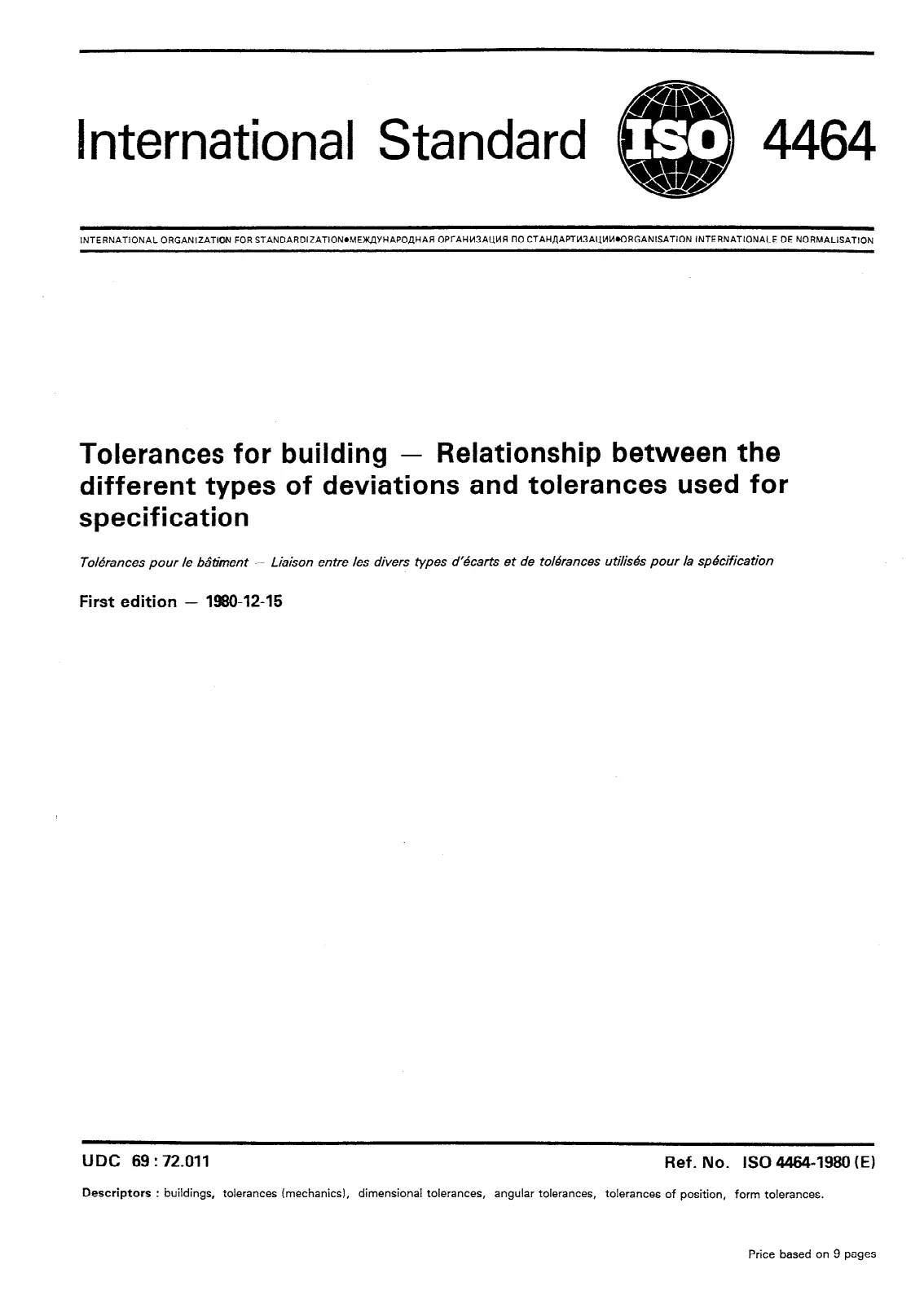

- ISO 4464 - Tolerance relationships for building specification
ISO 7077:1981 gives a practical, procedural framework for ensuring reliable dimensional compliance - essential for quality assurance, dispute avoidance, and safe, accurate construction delivery.
