Overview
ISO 7268:1983/Amd 1:1984 is an important international standard amendment that clarifies the definition of nominal pressure (PN) for pipe components. Developed by ISO Technical Committee ISO/TC 5 focused on ferrous metal pipes and metallic fittings, this amendment refines how nominal pressure should be understood and applied across pipeline components. Published in 1984, it enhances compatibility and interoperability within piping systems by standardizing the designation and dimensioning principles associated with nominal pressure and nominal size (DN).
Key Topics
-
Nominal Pressure (PN) Definition

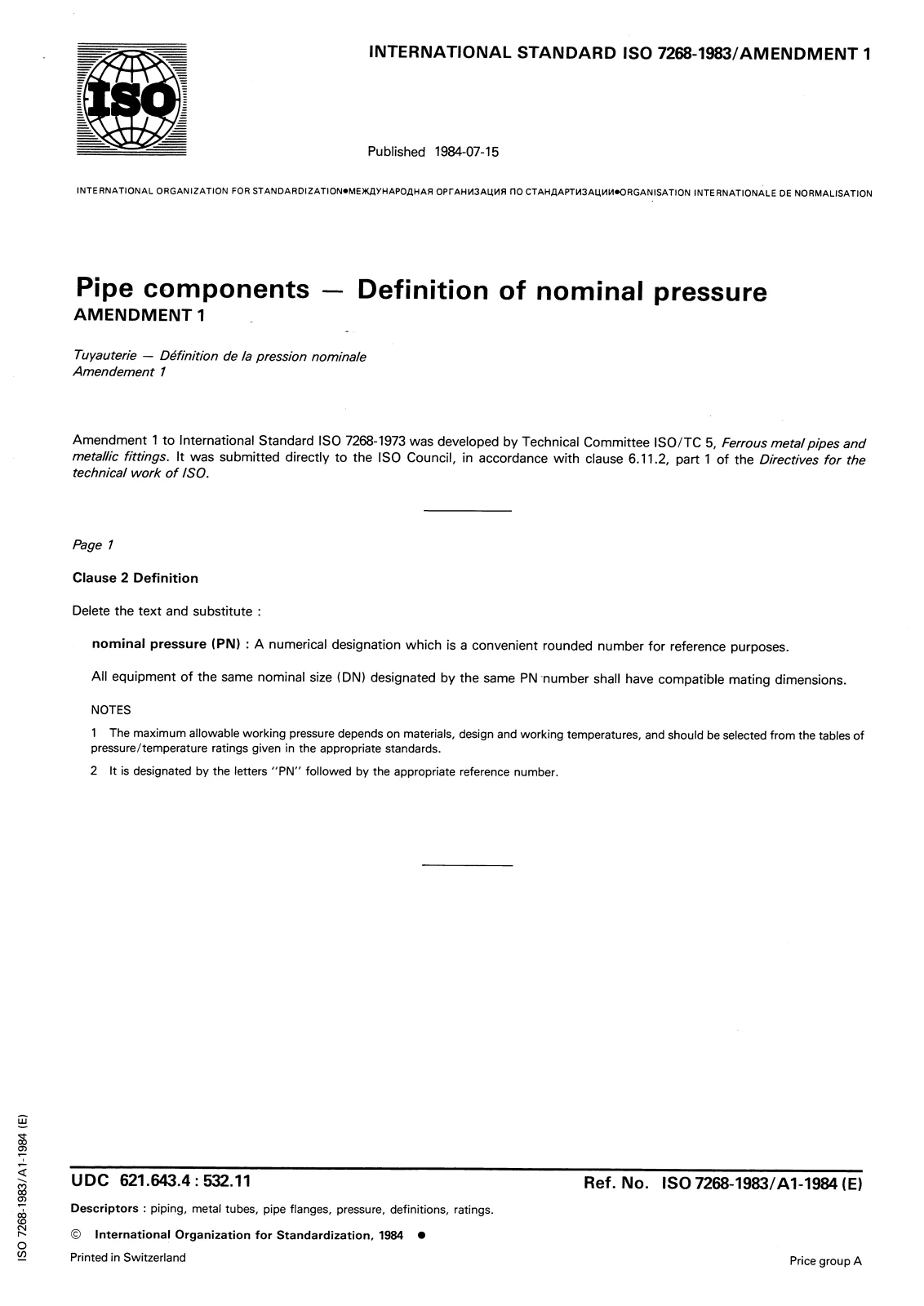

This amendment replaces the previous clause 2 with a precise and simplified definition:
Nominal pressure (PN) is a numerical designation which is a convenient rounded number for reference purposes.
This makes it clear that PN values serve as standardized reference points rather than exact pressure limits.
-
Compatibility Based on PN and DN
All equipment with the same nominal size (DN) and designated by the same PN number must have compatible mating dimensions. This ensures that components such as pipes, flanges, and fittings can be reliably connected without issues arising from dimension mismatches.
-
Guidance Notes
- The maximum allowable working pressure for a component depends on the material, design, and operating temperature. Correct pressure ratings should be selected from specific pressure/temperature rating tables provided in appropriate standards.
- The nominal pressure designation uses the letters “PN” followed directly by the assigned reference number, for example, PN10, PN16.
Applications
This amendment is essential for industries involving pipeline construction, maintenance, and design to ensure proper selection and compatibility of pipe components:
-
Pipeline Engineering
Enables engineers to specify pressure classes clearly, ensuring that pipes and fittings will fit properly and safely handle intended pressures.
-
Manufacturing of Pipe Components
Manufacturers apply the PN designation to standardize product ranges, simplifying inventory, quality control, and interchangeability.
-
Pressure Rating Selection
Assists designers and safety inspectors in choosing correct components that meet not only dimensional but also performance requirements at given operating conditions.
-
Standardization in Construction Projects
Facilitates international and cross-sector projects by creating a common language and reference for nominal pressure and pipe sizing.
Related Standards
ISO 7268:1983/Amd 1:1984 works in conjunction with other key standards in the field of piping and pressure components, including:
- ISO 7268:1983 – Original standard for pipe component pressure designations.
- ISO/TC 5 Series Standards – Cover ferrous metal pipes and fittings with related specifications.
- ISO Pressure-Temperature Rating Tables – Provide detailed guidance for selecting allowable working pressures based on material and temperature.
- ISO 6708 – Defines nominal size (DN) designations to complement PN definitions.
Summary
ISO 7268:1983/Amd 1:1984 clarifies the concept of nominal pressure (PN) as a practical, rounded reference number enabling consistent classification and interoperability of pipe components across various industries. By standardizing dimension compatibility and encouraging proper pressure rating selection, it enhances pipeline safety, reliability, and simplifies component specification. This amendment remains a cornerstone for manufacturers, engineers, and standards bodies working with pressure piping systems internationally.
