Overview
ISO 7375-1:1986 is an international standard developed by the International Organization for Standardization (ISO) that specifies the dimensional requirements for coiled pipe assemblies used in pneumatic braking connections between motor vehicles and their towed units. Specifically, this part addresses the minimum dimensional conditions needed to ensure reliable and compatible pneumatic braking system connections within vehicle combinations.
This second edition, published in 1986, replaces the first edition from 1982. It focuses on the physical dimensions of coiled flexible pipes equipped with their connectors, which are critical to maintaining braking compatibility and ensuring optimal response time in pneumatic braking systems.
Key Topics
-
Scope and Application
ISO 7375-1 applies exclusively to spiral coiled pipe assemblies designed for pneumatic braking systems in motor vehicle and trailer combinations. It does not cover other types of thermoplastic tubing used in such systems.
-
Dimensional Specifications
- Two standard types of coiled pipes are defined based on their effective length:
- Type 1: 4 meters
- Type 2: 4.5 meters
- The standard specifies parameters such as pipe length, maximum uncoiled length, and allowable ovalization (distortion) after spiral forming.
- Detailed figures illustrate the cross-sectional dimensions and connectors of the coiled pipes.
-
Performance and Compatibility
While Part 1 focuses on physical dimensions, a complementary Part 2 of ISO 7375 will address performance requirements such as durability and pressure resistance. Together, these parts ensure that all pneumatic brake connections maintain fast and reliable response times, crucial for vehicle safety.
-
Design Flexibility
The standard allows manufacturers freedom regarding external pipe design, attachment methods, and auxiliary features like anti-kinking devices, provided the dimensional criteria are met.
Applications
ISO 7375-1:1986 is essential for manufacturers, designers, and maintenance professionals involved in:
- Automotive and trailer manufacturing where pneumatic brake lines must conform to international dimensions to guarantee interchangeability and operational safety.
- Fleet operators and service centers ensuring replacement and repair parts meet standardized dimensional tolerances to maintain braking system integrity.
- Safety inspectors and regulatory bodies verifying compliance with standardized brake connection specifications during vehicle certification or roadworthiness assessments.
This standard supports the smooth operation of pneumatic braking systems by facilitating:
- Consistent and compatible connections between motor vehicles and trailers.
- Minimized response time delays in pneumatic brake signals, enhancing overall road safety.
- Interchangeability of components among different manufacturers in global markets.
Related Standards
ISO 7375-1:1986 complements other international standards focused on vehicle braking system components and connections, including:
- ISO 7375-2 – Specifies the performance requirements for spiral coiled pipe assemblies with connectors used in pneumatic braking systems.
- ISO 1726 – Standardizes mechanical couplings between tractors and semi-trailers for towing safety and interoperability.
- ISO 1728 – Details pneumatic brake line fittings, connectors, and tubing specifications for reliable brake operation.
- ISO 4039 – Provides terminology and vocabulary related to braking in road vehicles and trailers for consistent communication.
Using ISO 7375-1 alongside these standards helps ensure a harmonized approach to pneumatic brake system design, manufacturing, and maintenance worldwide.
Keywords: ISO 7375-1, pneumatic braking system, coiled pipe assemblies, vehicle brake connections, motor vehicles, towed vehicles, spiral flexible pipes, braking compatibility, response time, vehicle safety standards, automotive pneumatic brakes, brake system connectors, international braking standards.

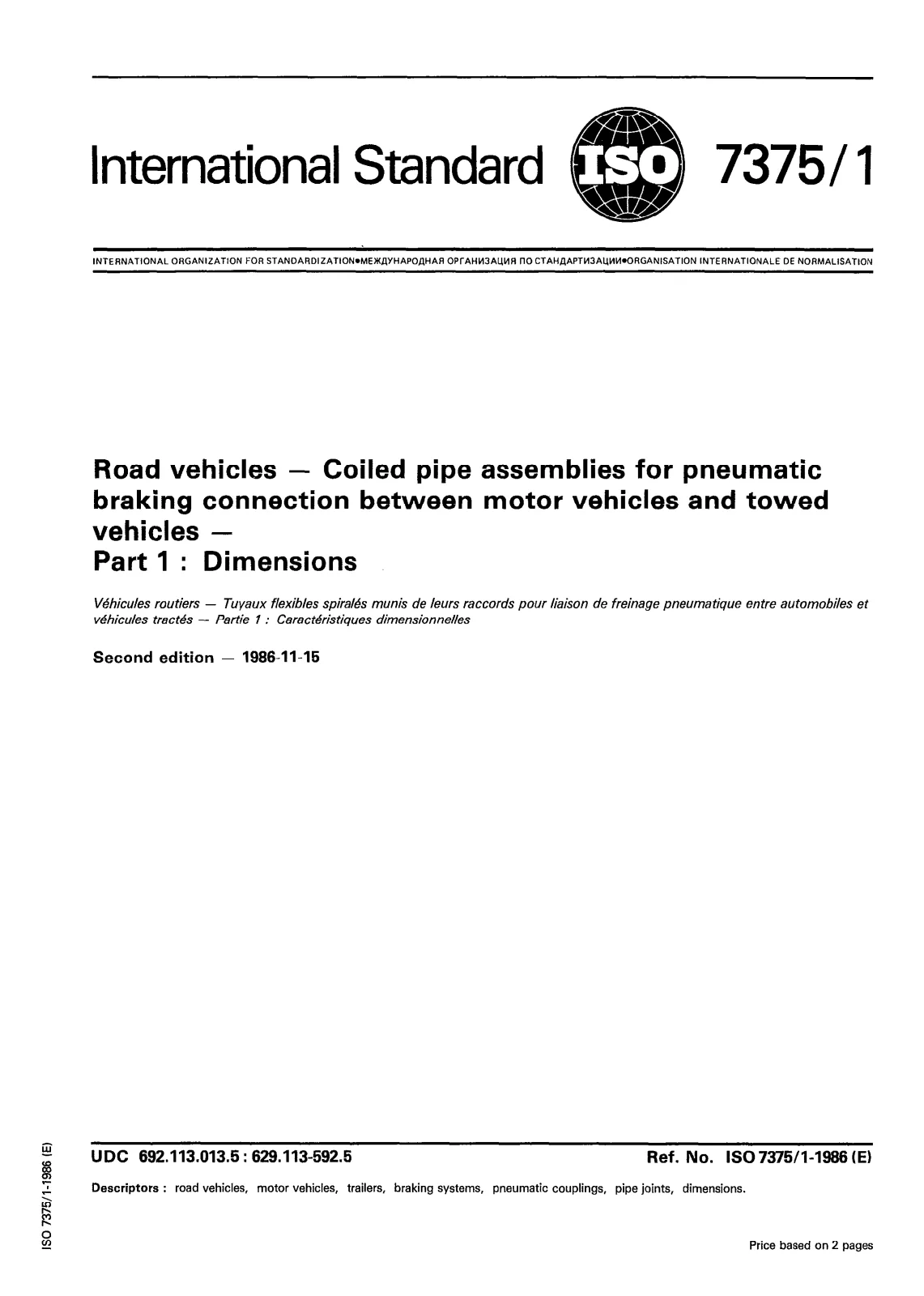

Open preview (PDF)Road vehicles — Coiled pipe assemblies for pneumatic braking connection between motor vehicles and towed vehicles — Part 1: Dimensions
