Overview

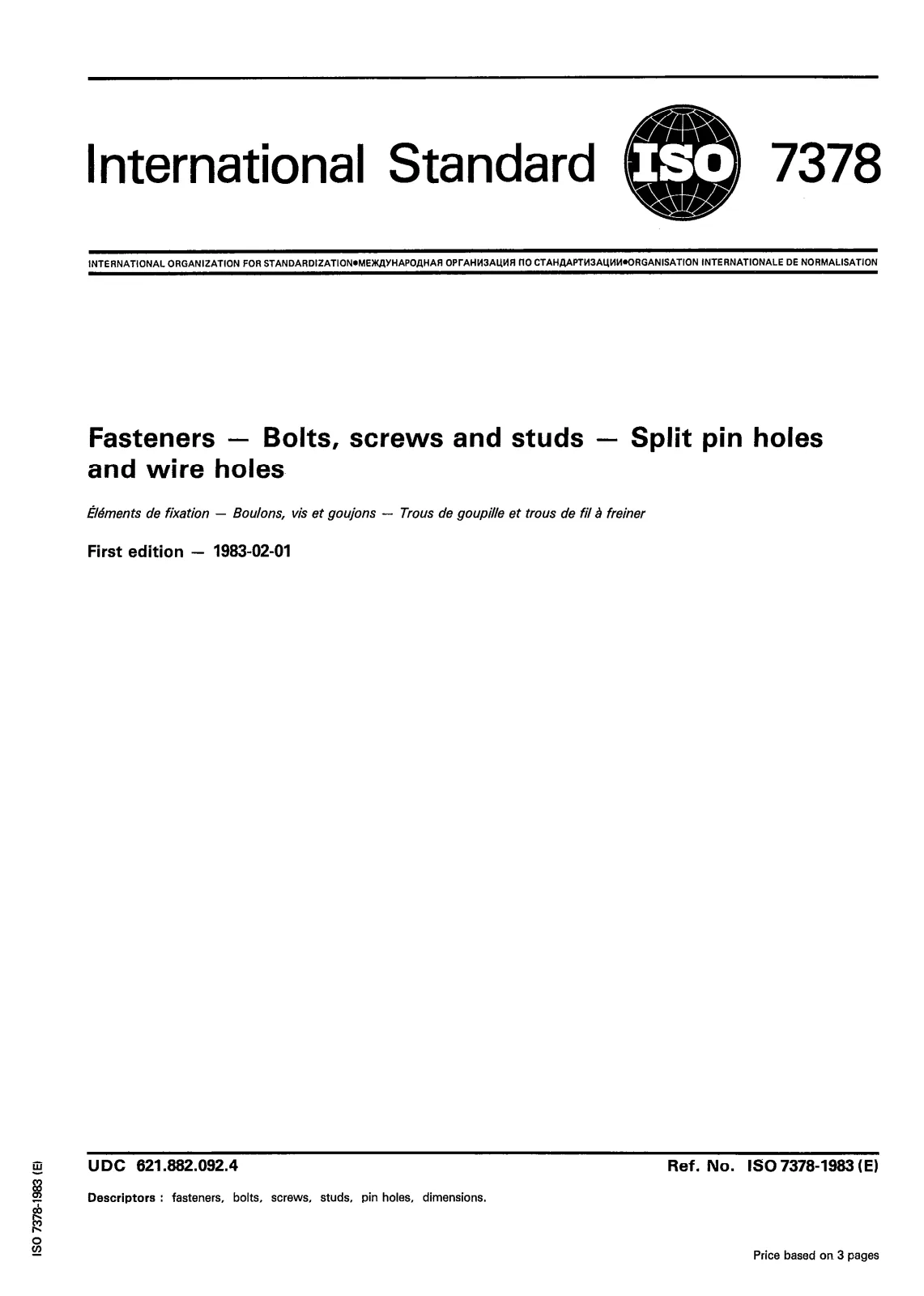

ISO 7378:1983 is an international standard published by the International Organization for Standardization (ISO) that defines the dimensions and positioning of split pin holes and wire holes for fasteners such as bolts, screws, and studs. The standard covers thread diameters ranging from 4 mm up to 52 mm and specifies the tolerances applicable to different product grades-A, B, and C. It is intended to ensure consistency and interchangeability in the manufacturing and application of fasteners requiring secure locking mechanisms via split pins or safety wire.
This standard supports engineering, manufacturing, and quality assurance processes by providing clear guidance on the hole sizes and positions necessary for effective mechanical locking. By adhering to ISO 7378, design and production teams can maintain high safety standards and enhance fastener reliability.
Key Topics
-
Scope and Application
ISO 7378:1983 applies to bolts, screws, and studs that require holes for split pins or wire locking. The standard is recommended for use in conjunction with specific product standards unless otherwise specified.
-
Hole Dimensions and Positions
The standard tabulates precise dimensions for split pin holes and wire holes. These dimensions correspond to a range of thread diameters from 4 mm to 52 mm, facilitating selection for various fastener sizes.
-
Tolerance Grades
ISO 7378 specifies three product grades (A, B, and C) with distinct tolerances aligned with ISO 4759/1. These grades determine acceptable manufacturing variations in hole size and positioning to suit different application requirements.
-
Manufacturing Guidance
The standard includes notes on tolerance accumulation and minimum distances from hole centers to fastener ends, ensuring the mechanical integrity and optimal placement of locking features.
Applications
ISO 7378:1983 is essential in industries and sectors that rely on secure fastening systems with mechanical locking methods, including:
-
Aerospace and Aviation
Used for critical applications where safety wire locking prevents fastener loosening under vibration or stress.
-
Automotive and Transportation
Ensures reliable locking of bolts and studs in engines, transmissions, and chassis.
-
Construction and Heavy Machinery
Applied to fasteners in heavy-duty equipment requiring secured mechanical joints.
-
Machinery and Equipment Manufacturing
Supports standardized component design to maintain interchangeability and assembly efficiency.
-
Maintenance and Repair Operations
Guides inspection and replacement of fasteners with split pin or wire locking features to meet safety standards.
By following ISO 7378, manufacturers and engineers improve product reliability and safety while facilitating international trade through adherence to recognized global standards.
Related Standards
-
ISO 4759-1: Tolerances for Fasteners
Provides the detailed tolerance classifications (grades A, B, and C) referenced for split pin and wire hole precision.
-
ISO 898-1: Mechanical Properties of Fasteners
Defines mechanical strength grades for bolts and screws related to their performance when combined with locking mechanisms.
-
ISO 4014 / ISO 4017: Hexagon Head Bolts
Covers dimensions and tolerances of hex bolts for which ISO 7378 hole specifications may apply.
-
ISO 2320: Prevailing Torque Type Locknuts
Addresses locking nut design, complementing systems using split pin or wire locking fasteners.
Implementing ISO 7378 alongside these standards ensures a comprehensive approach to fastener design, manufacturing, and quality control, enhancing mechanical joint security and safety.
Keywords: ISO 7378, fasteners, bolts, screws, studs, split pin holes, wire holes, mechanical locking, fastening standards, thread diameter, hole tolerances, safety wire locking, international standards, manufacturing guidelines, product grades, ISO certification.
