Overview

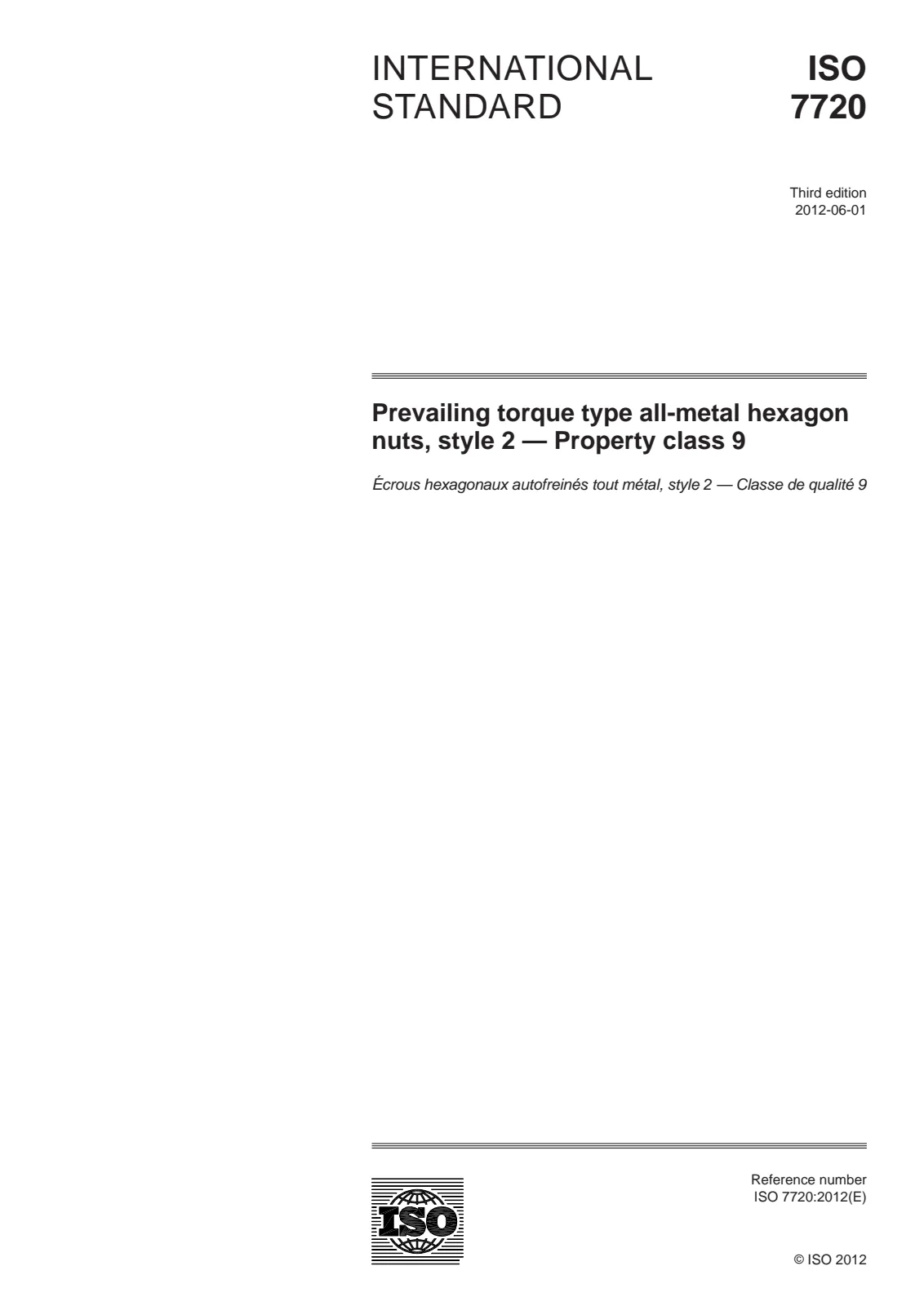

ISO 7720:2012 defines the specifications for prevailing torque type all-metal hexagon nuts, style 2, property class 9. This international standard covers hexagon nuts with metric threads ranging from M5 up to and including M36. Nuts for threads up to M16 are classified under product grade A, while those with threads over M16 fall under product grade B. These nuts feature a prevailing torque mechanism ensuring secure fastening without the need for additional locking elements.
Developed under the auspices of ISO Technical Committee ISO/TC 2 (Fasteners), this third edition updates previous versions to reflect current mechanical performance and manufacturing tolerances. The standard is essential for manufacturers, engineers, and quality inspectors involved with assembling machinery or structural components requiring high-strength fastening solutions.
Key Topics
-
Material & Property Class
The nuts are made from steel and classified as property class 9, indicating high mechanical strength appropriate for demanding applications.
-
Thread Sizes and Grades
Thread sizes covered range from M5 to M36:
- Product grade A for M5–M16
- Product grade B for M20–M36
-
Dimensions and Tolerances
Dimensional characteristics align mostly with ISO 4033, except for specific nut height dimensions. Thread profiles and tolerances comply with ISO 261, ISO 724, and ISO 965-2 to ensure compatibility and interchangeability.
-
Mechanical and Performance Properties
Performance meets the requirements detailed in ISO 898-2 and ISO 2320, addressing strength, prevailing torque, and locking capabilities.
-
Surface Finishes and Coatings
Surface coating specifications include electroplating (ISO 4042) and zinc flake coatings (ISO 10683). Additional finishes must be agreed upon between suppliers and purchasers.
-
Inspection and Quality Control
Acceptance inspection follows ISO 3269, with surface integrity according to ISO 6157-2 ensuring minimization of defects affecting performance.
Applications
ISO 7720:2012 hexagon nuts are widely used in mechanical assemblies requiring secure, vibration-resistant fastening. Typical applications include:
- Automotive and aerospace industries where high-strength fasteners maintain joint integrity under dynamic loads.
- Machinery and heavy equipment manufacturing requiring durable, reliable nuts to withstand stress and environmental conditions.
- Construction frameworks where safety-critical connections depend on prevailing torque nuts to prevent loosening.
- Electrical and electronic assemblies that mandate consistent mechanical performance of fasteners.
By selecting nuts compliant with ISO 7720, designers and engineers can ensure standardized quality and fit, enhancing the overall reliability and safety of their products.
Related Standards
ISO 7720:2012 interacts closely with several other ISO standards critical for the full specification and application of hexagon nuts:
- ISO 4033 – Defines dimensions for hexagon nuts, style 2.
- ISO 7042 – Covers nuts of property classes 5, 8, 10, and 12.
- ISO 898-2 – Mechanical properties of carbon and alloy steel nuts with specified property classes.
- ISO 2320 – Mechanical and performance properties of prevailing torque type steel hexagon nuts.
- ISO 4759-1 – Tolerances for fasteners in product grades A and B.
- ISO 8992 – General requirements for bolts, screws, studs, and nuts.
- ISO 4042 and ISO 10683 – Standards governing electroplated and non-electrolytically applied zinc coatings respectively.
- ISO 3269 – Defines acceptance inspection procedures.
- ISO 6157-2 – Specifies limits for surface discontinuities to ensure fastener integrity.
Adhering to ISO 7720:2012 alongside these related standards guarantees a comprehensive approach to selecting and using prevailing torque type all-metal hexagon nuts, resulting in enhanced assembly safety and performance.
