Overview

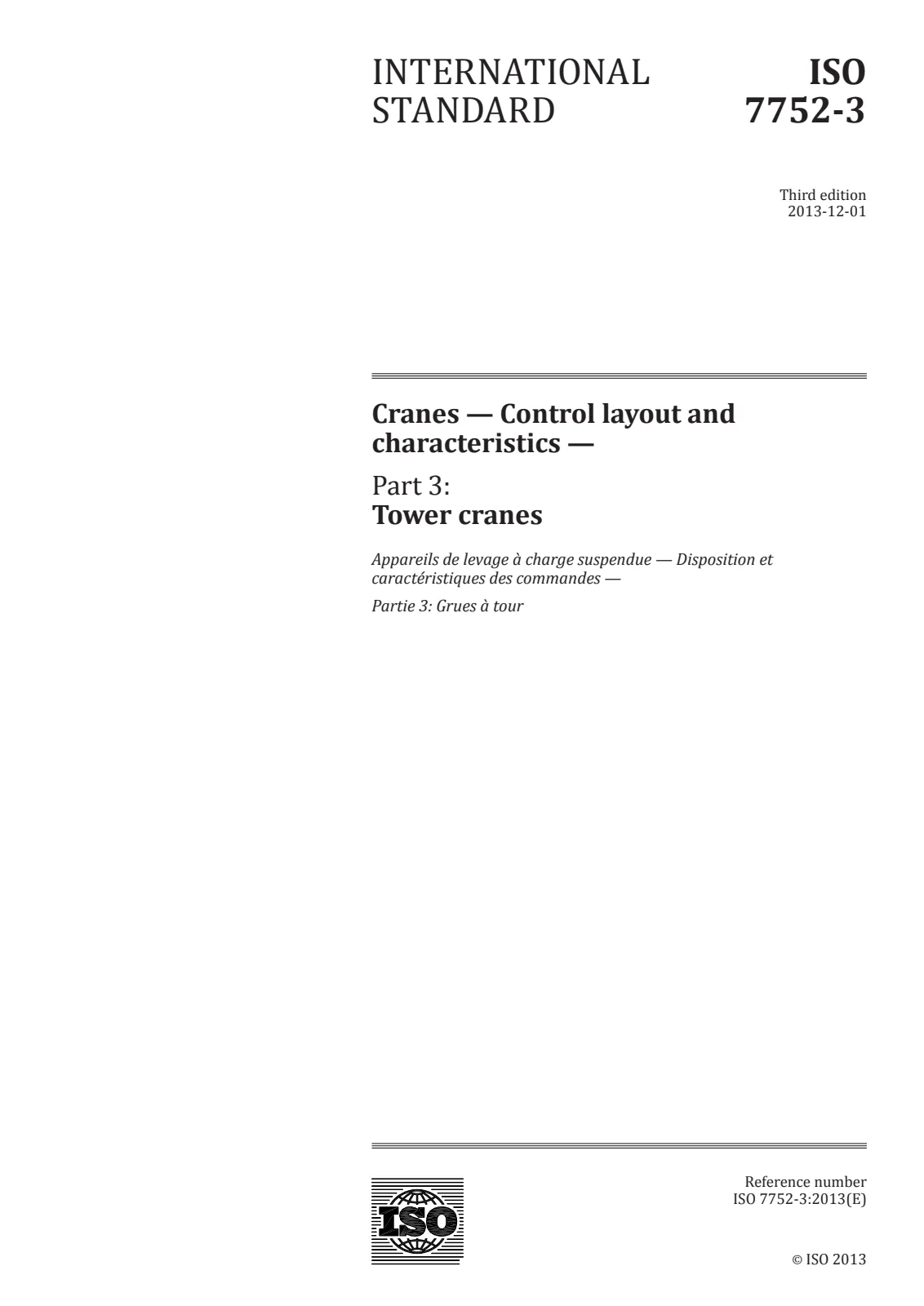

ISO 7752-3:2013 is an international standard developed by ISO specifically addressing the control layout and characteristics for tower cranes. Tower cranes, as defined in ISO 4306-3, are essential in construction and heavy lifting industries for positioning loads with precision and safety. This standard outlines the particular requirements for controls, ensuring operators can efficiently and safely maneuver loads.
Part 3 of the ISO 7752 series focuses exclusively on tower cranes, complementing other parts dealing with mobile cranes, jib cranes, and overhead travelling cranes. The standard is essential for manufacturers, operators, and safety inspectors involved in the crane industry.
Key Topics
-
Control Requirements
ISO 7752-3 builds on general control principles given in ISO 7752-1, specifying the layout and operation for tower crane controls to provide consistent and intuitive handling.
-
Basic Control Arrangement
Controls are systematically arranged:
- Right side controls: operation of hoisting (raising and lowering loads) and crane travelling
- Left side controls: slewing (rotating crane) and luffing or crab movement (adjusting jib angle or position)
-
Control Lever Types
The standard specifies the direction of movements for lever controls, particularly when using ball-and-socket or universal joint types. For example:
- Pulling the lever towards the operator hoists the load or luffs in
- Pushing the lever away lowers the load or luffs out
- Slewing right or left corresponds to lever movement towards the respective side
-
Stop Functions
Safety stop requirements follow IEC 60204-32:2008, mandating stop times of 1 second for tower cranes and 0.5 to 2 seconds for radio remote controls to enhance operator safety.
-
Consoles
Console designs must follow the general requirements in ISO 7752-1, ensuring ergonomic and functional operator interfaces.
Applications
ISO 7752-3:2013 serves as a critical reference for:
-
Crane Manufacturers
Ensuring control systems for tower cranes meet international safety and usability requirements, promoting reliability and operator familiarity across different crane models.
-
Construction and Engineering Firms
Employing cranes that comply with ISO 7752-3 enhances operational safety and efficiency on-site. Clear control standards reduce operator errors and accidents.
-
Operator Training Programs
Providing standardized control layouts allows for consistent training modules, enabling operators to quickly adapt to various tower crane models.
-
Regulatory Compliance and Safety Audits
Authorities and safety inspectors use ISO 7752-3 to verify that tower cranes adhere to internationally recognized control standards, helping maintain high safety standards in lifting operations.
Related Standards
For comprehensive understanding and implementation in crane control systems, ISO 7752-3 should be considered alongside these relevant standards:
-
ISO 7752-1:2010
General principles for crane control layout and characteristics.
-
ISO 4306-3:2003 / ISO 4306-3:2003/Amd 1:2011
Vocabulary and definitions specific to tower cranes, clarifying terminology used in control arrangements.
-
IEC 60204-32:2008
Safety requirements for electrical equipment on hoisting machines, specifying important stop and control safety provisions.
-
Other Parts of ISO 7752 Series
Including Part 2 for mobile cranes, Part 4 for jib cranes, and Part 5 for overhead travelling cranes and portal bridge cranes, for broader crane control standardization.
Adoption of ISO 7752-3:2013 ensures tower crane controls are standardized globally, promoting safer, more efficient, and user-friendly crane operation. This contributes to reducing accidents and improving productivity in construction and industrial lifting applications.
