Overview

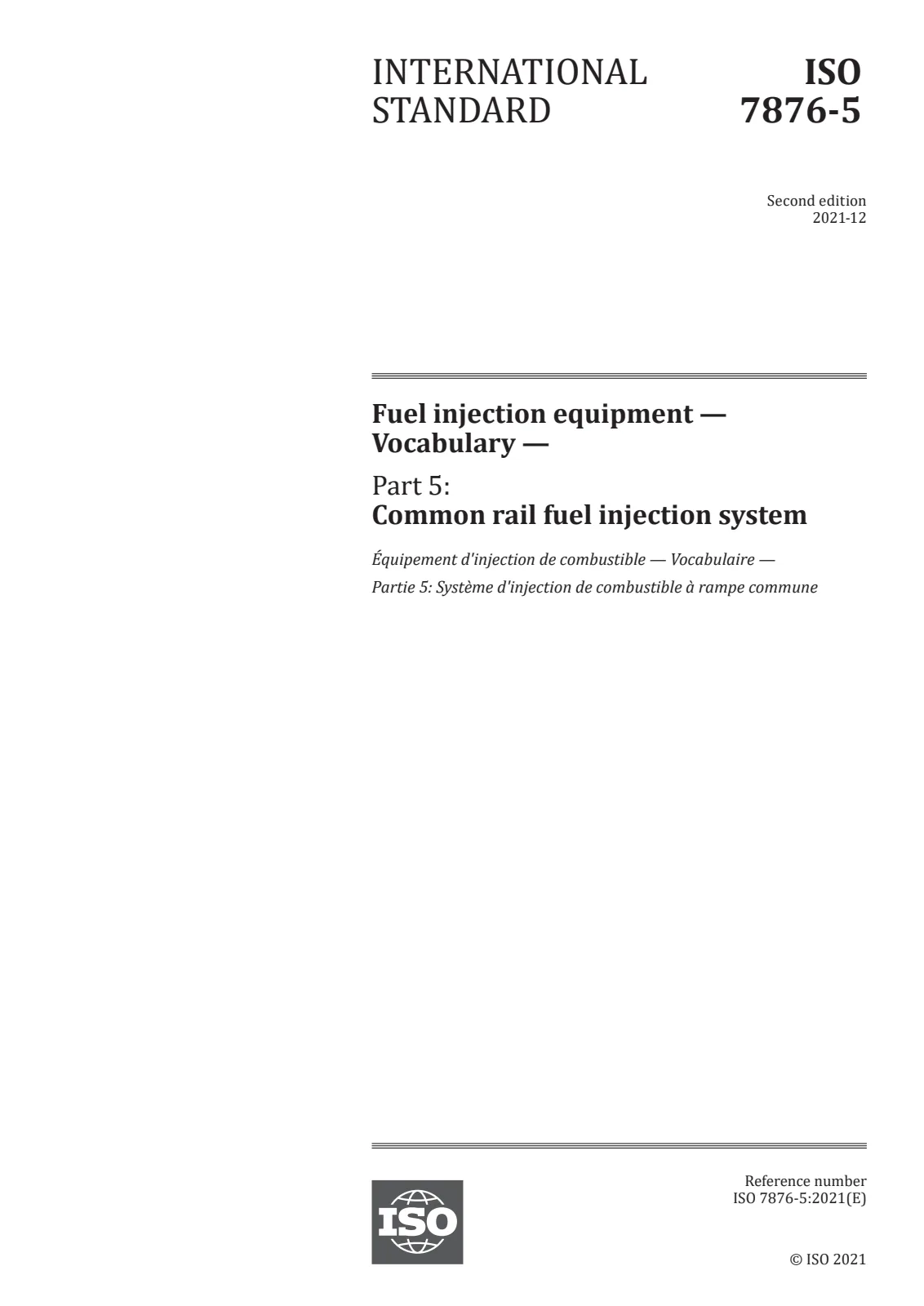

ISO 7876-5:2021 - Fuel injection equipment - Vocabulary - Part 5: Common rail fuel injection system - is the ISO international vocabulary for common rail (CR) fuel injection systems used on diesel (compression‑ignition) engines. This second edition (2021) updates and extends the terminology used worldwide to describe CR components, functions and injection strategies. The standard is descriptive (no normative references) and is part of the wider ISO 7876 series covering fuel injection equipment.
Key topics and defined terms
This document establishes precise definitions for terms unique to common rail systems, enabling consistent communication across design, testing and regulatory contexts. Important entries and technical topics include:
- Common rail fuel injection system (CRS) - defined by a high‑pressure supply pump, a rail or distribution block, and CR injectors; rail pressure is electronically controlled and independent of engine speed/load.
- CR injector - an injector with an electrical valve (solenoid or piezo) to control start/end of injection; may include a pressure amplifier.
- High‑ and low‑pressure supply components:
- fuel feed pump (low‑pressure)
- high‑pressure supply pump
- internal transfer pump
- Pressure and flow control devices:
- pressure control valve (electrically actuated spill valve)
- inlet control valve and outlet control valve
- pressure limiter (safety valve)
- CR pressure sensor
- Rail and distribution:
- rail (long tube‑type high‑pressure chamber) and distribution block (non‑long shaped high‑pressure chamber)
- flow limiter and flow damper
- Injection strategies:
- multiple injection, pre (pilot) injection, main injection, post (after) injection
The Introduction notes that terms have been added to reflect updated CR functionality aimed at improved engine performance, emissions control, fuel economy and NVH.
Applications and users
ISO 7876-5:2021 is practical for organizations and professionals who need unambiguous, standardized terminology for common rail systems, including:
- Engine and powertrain designers and calibration engineers
- OEMs and component suppliers (injectors, rails, pumps, sensors, valves)
- Test laboratories and validation teams
- Technical writers, translators and documentation teams
- Regulatory bodies, certification authorities and procurement specialists
- Training providers and maintenance/repair organizations
Using the standardized vocabulary reduces misinterpretation in specifications, design reviews, service manuals and regulatory submissions.
Related standards
- ISO 7876 series - other parts for different fuel injection systems (see ISO website for the full list)
- ISO 7876-2 - Fuel injectors vocabulary
- ISO 2710 (all parts) - Reciprocating internal combustion engines - Vocabulary
Keywords: ISO 7876-5:2021, common rail, CRS, CR injector, fuel injection equipment, diesel engines, vocabulary, fuel system terminology.
