Overview

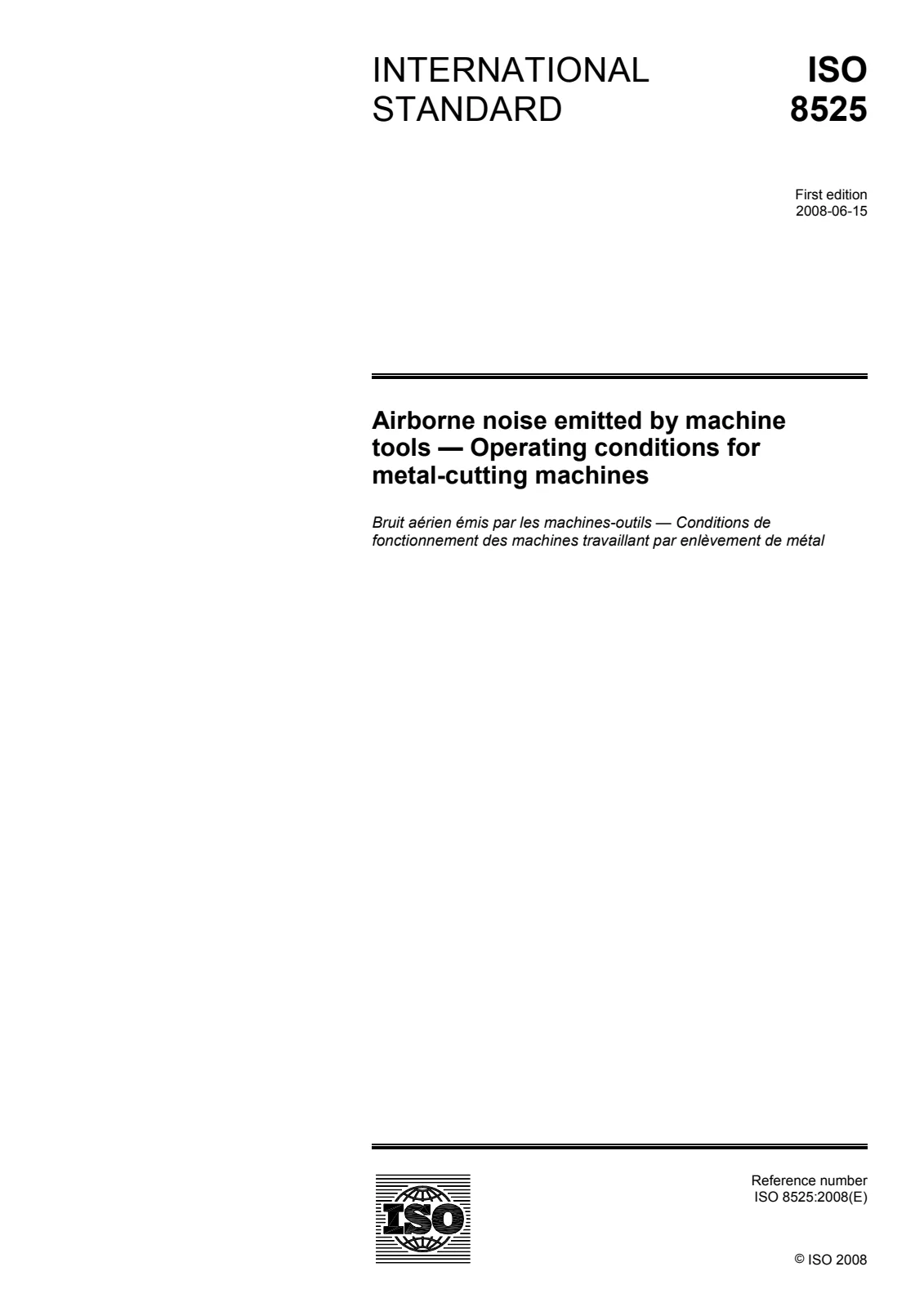

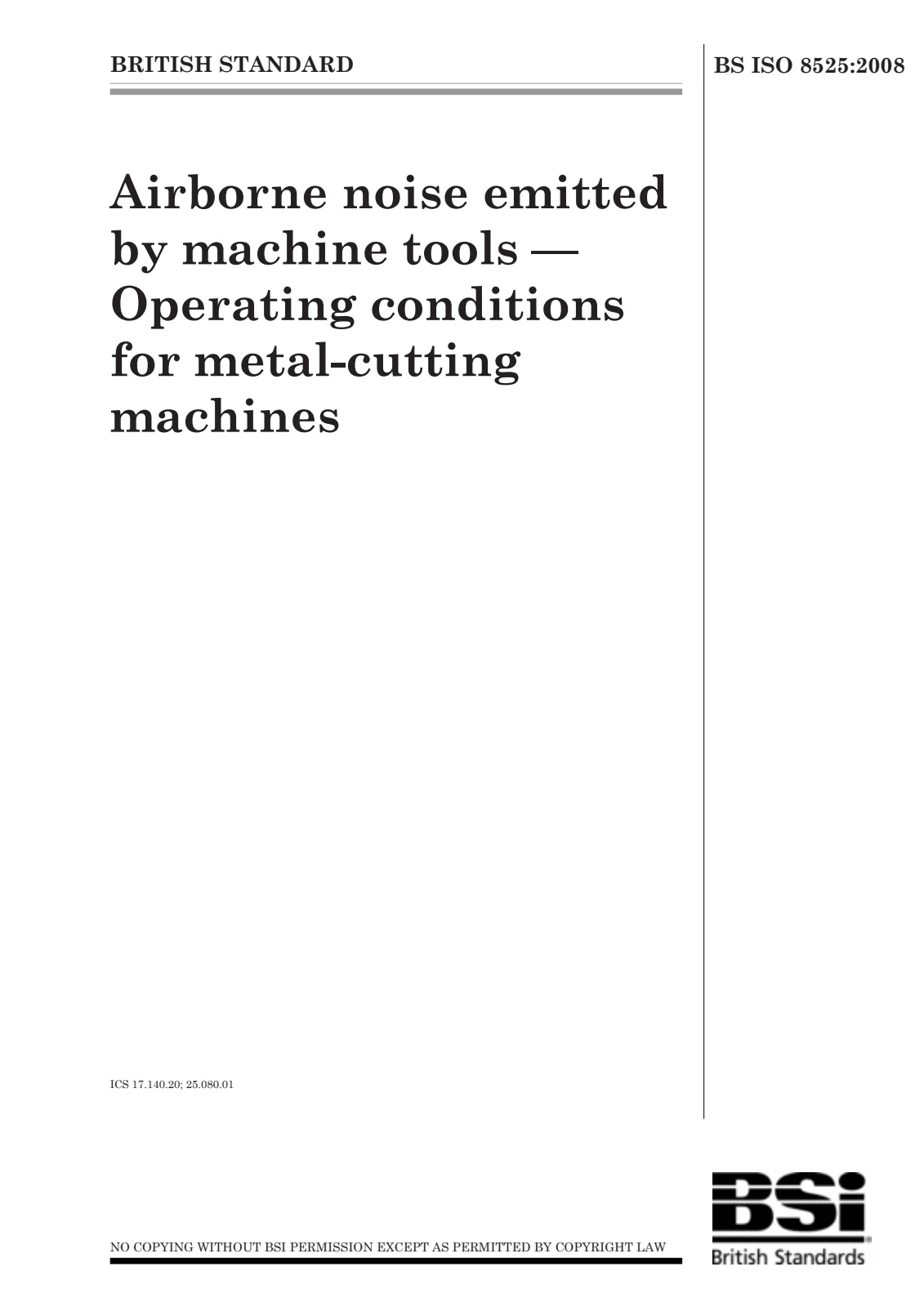

ISO 8525:2008 - "Airborne noise emitted by machine tools - Operating conditions for metal‑cutting machines" specifies the mechanical and acoustical operating conditions needed for reproducible noise tests of metal‑cutting machines. With direct reference to ISO 230‑5, it aims to produce comparable noise-emission results (sound power and emission sound pressure levels) for similar turning and milling machines, including NC/automatic types and machining centres. Test results are intended for comparison, acceptance, maintenance and other verification purposes.
Key topics and requirements
- Scope: Applies to all kinds of turning and milling machines; excludes actual cutting processes unless specifically agreed.
- Test reference: Uses ISO 230‑5 as the basic test code; microphone layouts and measurement surfaces follow ISO 230‑5 (accuracy grade 3) or ISO 3744 (accuracy grade 2).
- Operating conditions: Defines standard idle, acceleration/braking, tool change and “ready for service” states; tests are normally under no‑load conditions. For NC machines, a representative automatic test cycle that exercises movable components is required.
- Installation & mounting: Machines must be installed per manufacturer instructions (or stated alternative), on a reflecting plane, with all supplied protective/acoustic guards fitted. Auxiliary systems (e.g., dust extraction) must be running if provided.
- Measurement uncertainty: Acknowledges sources of uncertainty and refers to ISO 230‑5 for detailed treatment.
- Reporting & declaration: Specifies the data to record and report - machine identification, installation, measurement positions (including operator position), background noise, A‑weighted sound pressure levels at operator positions, A‑weighted sound power level (LWA) and measurement durations. Declarations must follow ISO 230‑5 and be verifiable per ISO 4871 (dual number: value and uncertainty).
Applications and users
Who uses ISO 8525:2008:
- Machine tool manufacturers and suppliers (noise declaration, product specification)
- Test laboratories and acoustic consultants (routine and acceptance testing)
- Purchasing/procurement teams and OEMs (comparative evaluation)
- Maintenance engineers (baseline and diagnostic measurements)
- Regulators and occupational health professionals (verification and compliance)
Practical applications:
- Producing reproducible, comparable noise data for tendering and acceptance
- Verifying supplier noise declarations and labeling
- Assessing machine noise for shop‑floor planning and hearing protection programs
- Supporting noise control or retrofit decisions
Related standards
- ISO 230‑5:2000 - Test code for machine tools (noise determination)
- ISO 3744 - Sound power determination (engineering method)
- ISO 4871 - Declaration and verification of noise emission values
- ISO 3740 - Basic standards guidance (referenced in ISO 8525)
Keywords: ISO 8525:2008, airborne noise, machine tools, metal‑cutting machines, noise measurement, sound power level, emission sound pressure, turning machines, milling machines, operating conditions, noise declaration.
Open preview (PDF)Airborne noise emitted by machine tools — Operating conditions for metal-cutting machines
