Overview

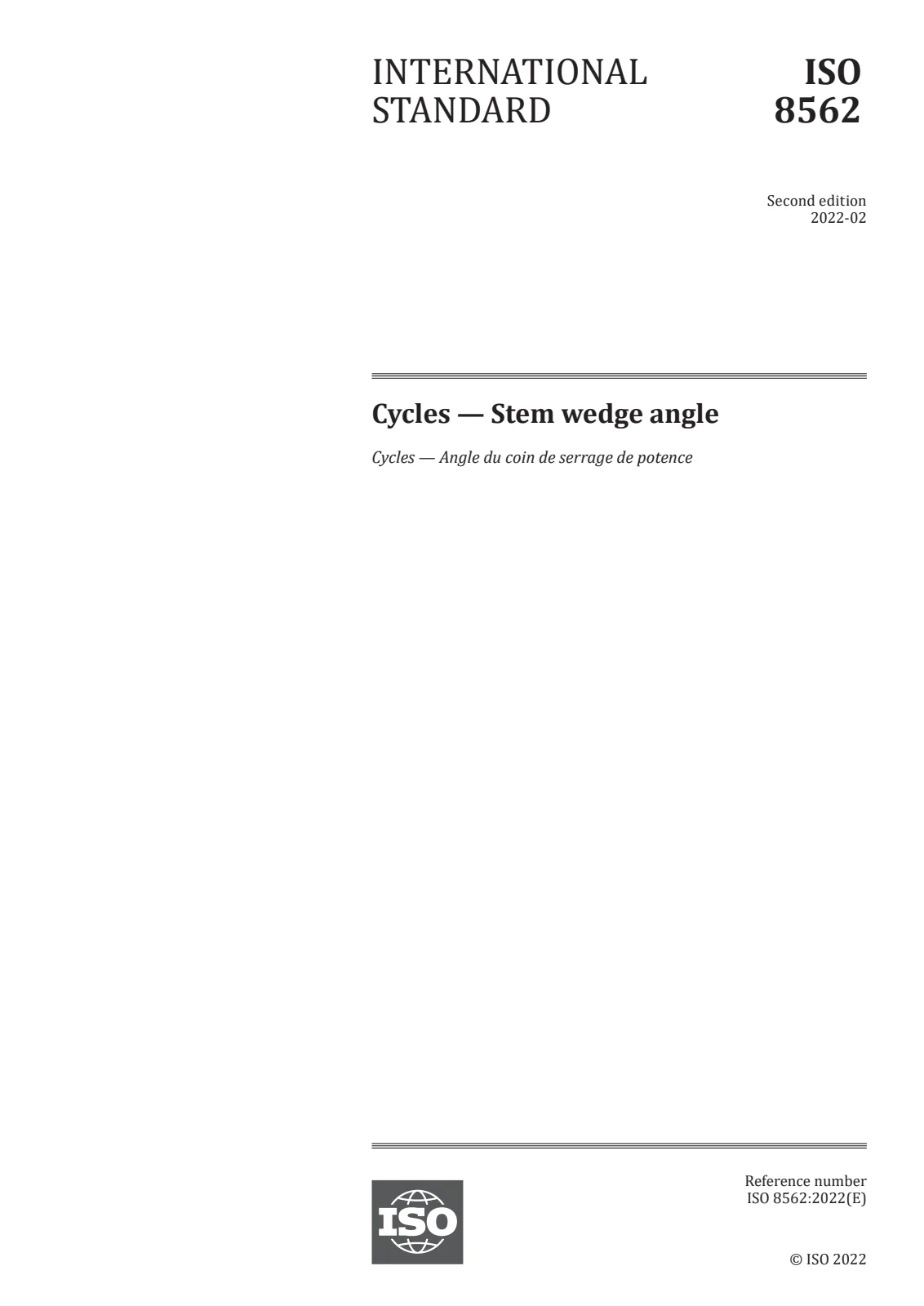

ISO 8562:2022 defines the required stem wedge angle for bicycle stems to ensure a secure mechanical connection between the handlebar stem and the fork stem. The document sets a nominal angle α = 36° with a maximum tolerance of ±1° and clarifies assembly conditions referencing applicable safety test standards. This second edition replaces ISO 8562:1990 and adds the angle tolerance and updated normative references.
Key Topics
- Stem wedge angle requirement: The nominal wedge angle is specified as 36° with a tolerance of ±1°, intended to provide consistent engagement equivalent to an expander cone angle.
- Function: The wedge angle performs the same role as the angle of the expander cone, ensuring secure clamping of the stem within the fork steerer.
- Assembly conditions: Assembly with the expander bolt tightened in accordance with the manufacturer's instructions must comply with the steering and assembly provisions of ISO 4210-2:2015 and the steering test methods of ISO 4210-5:2014.
- Edition changes: The 2022 edition introduced an explicit tolerance to the angle and updated references to related ISO standards.
Applications
This standard is directly applicable to manufacturers, designers, test laboratories and conformity assessors working with bicycle steering components. Practical uses include:
- Ensuring component interoperability between handlebar stems and fork steerer assemblies.
- Supporting design specifications for stems and expander cones where predictable wedge engagement is required.
- Guiding assembly instructions and torque/installation practices to meet ISO 4210 safety test requirements.
- Helping test labs verify that assembled stems meet the steering performance and safety criteria referenced by ISO 4210.
Benefits of adhering to ISO 8562:2022 include improved rider safety, reduced risk of slippage or loosening, and clearer compatibility requirements for component suppliers.
Related Standards
- ISO 4210-2:2015 - Cycles - Safety requirements for bicycles (city, trekking, young adult, mountain and racing bicycles): referenced for assembly and steering requirements (clauses 4.7.3 and 4.7.6).
- ISO 4210-5:2014 - Cycles - Safety requirements for bicycles - Steering test methods: referenced for steering test methods (clauses 4.2, 4.4 and 4.6).
For manufacturers and conformity assessors, ISO 8562:2022 should be used together with ISO 4210 series guidance to document assembly procedures, perform required tests, and demonstrate compliance. For full technical and legal use, consult the published ISO 8562:2022 document and national standards bodies for licensing and implementation details.
