Overview

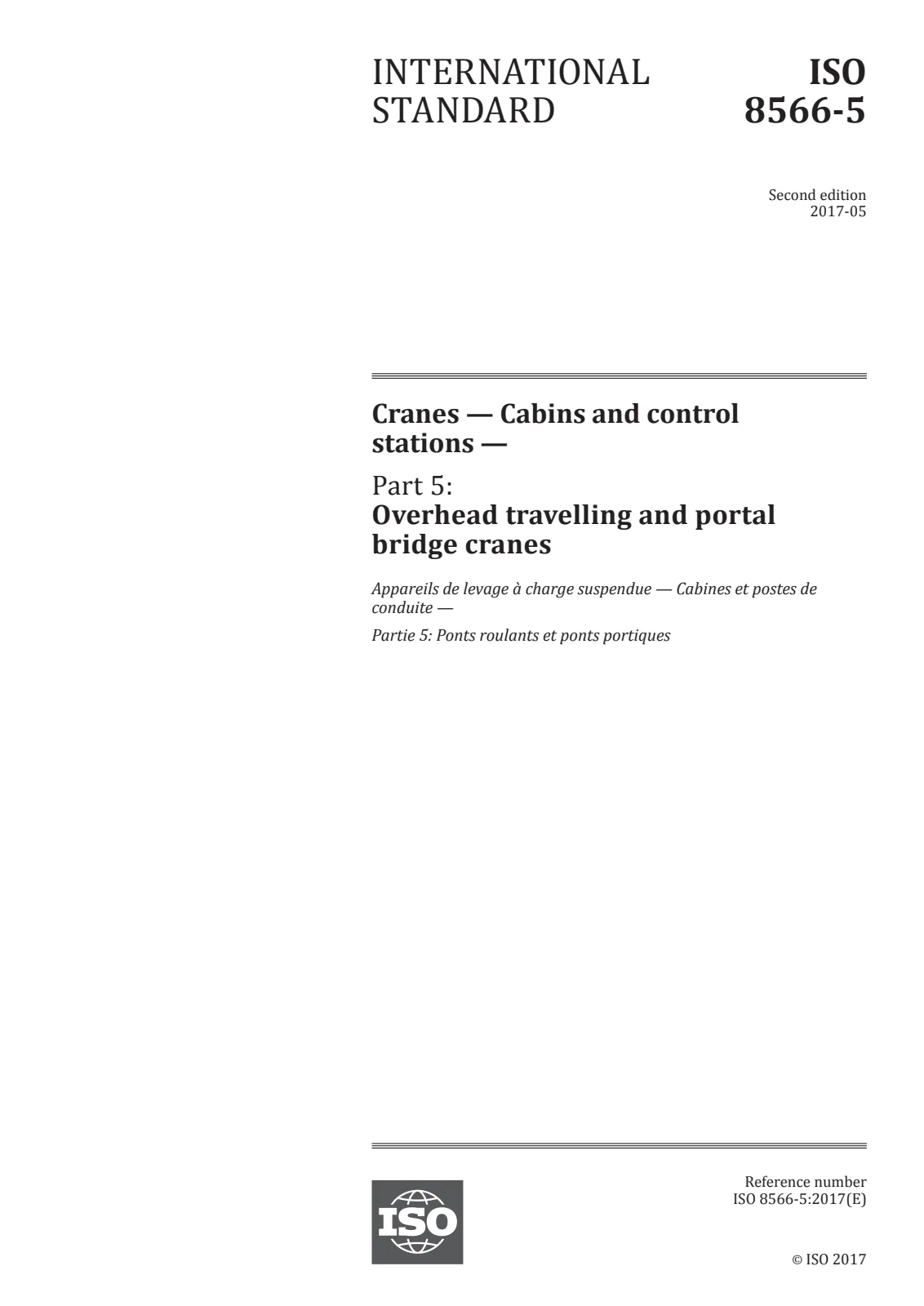

ISO 8566-5:2017 specifies requirements for cabins and control stations used on overhead travelling cranes and portal bridge cranes (as defined in ISO 4306‑1). The standard addresses cabin construction, operator seating and control-element layout while taking the actual conditions of use into account. It is part of the ISO 8566 series covering crane cabins and control stations and updates the previous edition to reflect current ergonomic and safety practices.
Key topics and technical requirements
- Scope: Applies to cabins and control stations for overhead travelling and portal bridge cranes; conditions of use are considered in design and layout.
- Cabin construction: General construction requirements from ISO 8566‑1 apply. Minimum internal dimensions (measured through the seat index point) are specified:
- Inside height: 1 600 mm
- Inside breadth: 900 mm
- Inside depth: 1 300 mm
- Minimum internal volume: 3 m³
These dimensions are minimums and should be increased where practical, with allowance for number of persons and actual working time.
- Operator’s seat: Seats must be steady, inclinable (backwards 3°–7°), and adjustable horizontally (±80 mm) and vertically (±50 mm). Other seat requirements include an inclinable backrest, non‑heat‑retaining covering, springs/cushioning for vibration reduction, lockable positions, pads and adjustable elbow rests, and easy access.
- Control elements: Layout and characteristics must conform to ISO 7752‑1 (general control principles) and ISO 7752‑5 (principles specific to overhead travelling and portal bridge cranes).
- Scope change note: Heating and cooling requirements were removed from this part and are addressed in ISO 8566‑1.
Applications and users
ISO 8566-5:2017 is used by:
- Crane manufacturers and cabin designers to ensure ergonomic, safe cabin layouts.
- OEM engineers specifying operator stations for overhead travelling and portal bridge cranes.
- Safety professionals and compliance officers assessing cabin safety and operator ergonomics.
- Procurement teams and facility managers evaluating crane cabins for industrial use.
- Regulatory bodies and inspection authorities referencing standard dimensions and seat/control requirements.
Related standards
- ISO 4306‑1 - Cranes: vocabulary and definitions
- ISO 8566‑1 - Cranes: cabins and control stations - General requirements
- ISO 7752‑1 - Control layout and characteristics - General principles
- ISO 7752‑5 - Controls specific to overhead travelling and portal bridge cranes
Keywords: ISO 8566-5, crane cabins, control stations, overhead travelling cranes, portal bridge cranes, operator’s seat, cabin dimensions, safety requirements, ISO 7752-5, ISO 8566-1.
