ISO 8641:2008 - "Aerospace - Self‑locking nuts with maximum operating temperature greater than 425 °C - Procurement specification" - defines procurement, inspection and quality requirements for metric self‑locking nuts (MJ thread) intended for aerospace use at temperatures above 425 °C. The standard is a procurement/specification document: it applies when referenced in a nut’s definition document (e.g., drawing, in‑house or other standard) and complements material, dimensional and functional requirements given elsewhere.
Key topics and technical requirements
- Scope and applicability: Metric MJ‑thread self‑locking nuts for aerospace applications where maximum operating temperature > 425 °C.
- Material and microstructure: Material type must be verified (spectrographic/spectroscopic analysis) and microstructure inspected to ensure freedom from cracks, acceptable inclusion levels and grain size per the material standard.
- Surface discontinuities: Permissible discontinuity types and maximum depths are specified (see Annex A). Fluoroscopic inspection is used to detect internal/hidden defects.
- Mechanical definitions: The standard defines torques relevant to locking performance - self‑locking torque, seating torque, unseating torque, breakaway torque and wrench torque - to guide testing and functional requirements.
- Quality assurance & sampling: Manufacturers must demonstrate continuous capability; qualification testing (e.g., 100 nuts by simple random sampling for full qualification) and production acceptance inspections are required. Sampling plans reference ISO 2859‑1 AQL schemes. Specific sample sizes for individual tests (e.g., spectrographic, micrographic, fluoroscopic) are included in Table 1.
- Test methods and traceability: Where no single international method exists, user and manufacturer must agree on methods for spectrographic analysis, micrographic inspection, chemical reagent checks for coatings, surface roughness measurement and fluoroscopy. ISO 8642 (test methods) is a related reference.
- Use of SPC: The standard permits substitution of lot sampling by an approved Statistical Process Control (SPC) program if validated and accepted by the qualifying authority.
Applications and typical users
- Applications: High‑temperature aerospace assemblies such as engines, hot structures, exhaust and turbine interfaces, and any fastened joint exposed regularly to >425 °C where reliable self‑locking performance is critical.
- Users: Fastener manufacturers and suppliers, aerospace OEMs and MROs, procurement and quality engineers, certification authorities, and design engineers specifying high‑temperature fasteners.
Related standards
Commonly referenced standards in ISO 8641:2008 include:
ISO 8641:2008 provides the procurement and acceptance framework to ensure self‑locking nuts perform reliably in high‑temperature aerospace environments.

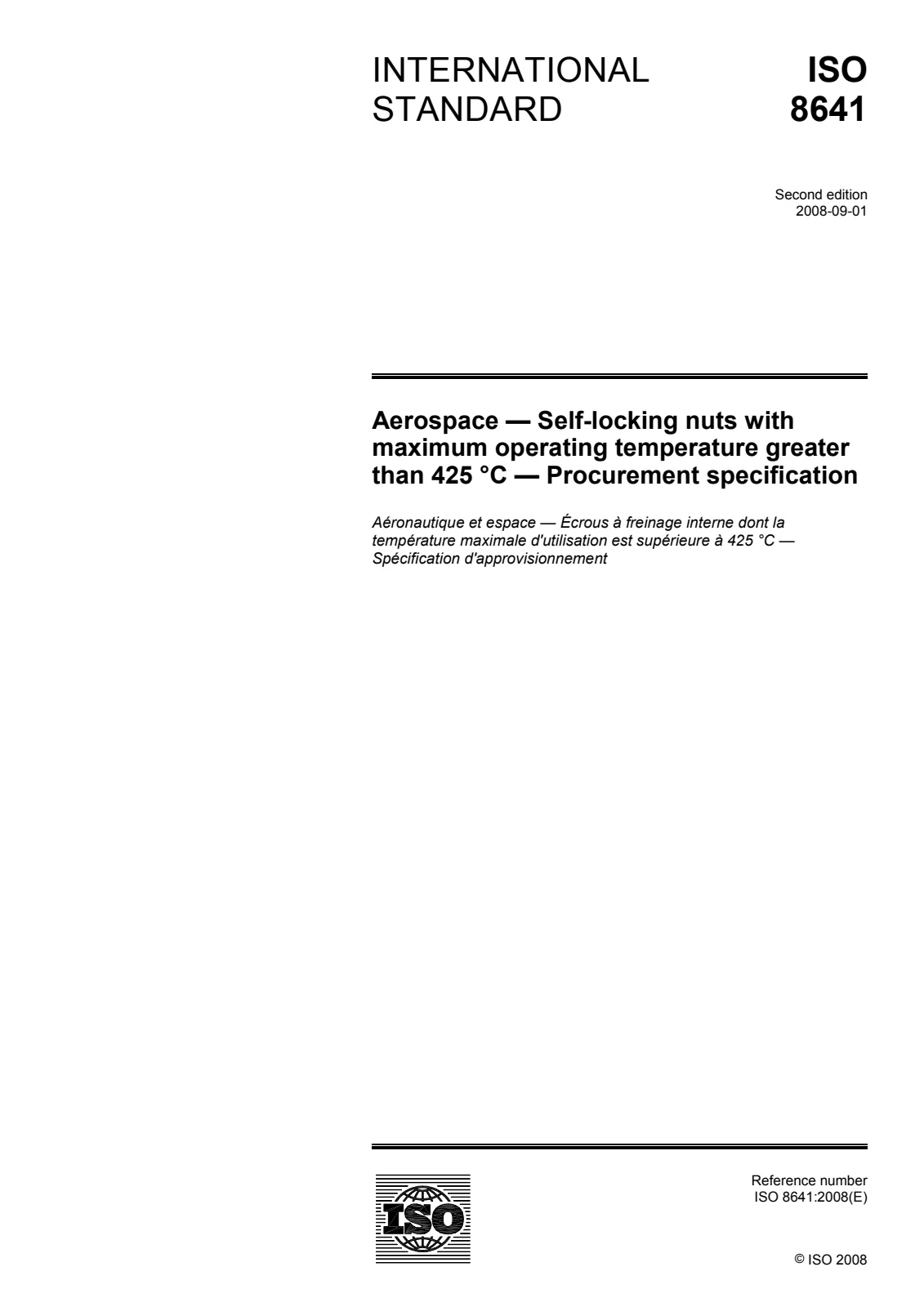

Open preview (PDF)Aerospace — Self-locking nuts with maximum operating temperature greater than 425 degrees C — Procurement specification
