ISO 8984-1:1993 - Diesel engines - Testing of fuel injectors - Part 1: Hand-lever-operated testing and setting apparatus - defines the minimum requirements for hand‑lever‑operated equipment used to test and set diesel fuel injectors that have a spring‑loaded nozzle valve actuated by fuel pressure. It applies primarily to injectors for diesel engines requiring fuel delivery up to 300 mm³/(injection × cylinder). The actual test procedures are given in ISO 8984-2; this part establishes the apparatus, mounting, and validation conditions needed to get reproducible results.
Key topics and technical requirements
- Scope and injector type: Covers injectors with spring‑loaded nozzle valves actuated by fuel pressure, up to the stated delivery rate.
- Mandatory components: Pump and operating handle, inlet filter, fluid container, non‑return valve, ducts, isolating valve, pressure gauge, outlet connection, and a variable volume device (or equivalent compensation) are specified.
- Mechanical and hydraulic parameters (as specified in the standard):
- Operating handle stroke along line of action: 125 mm – 325 mm.
- Specific delivery: 4.5 – 6 mm³ per mm of stroke (at atmospheric conditions).
- Hydromechanical stiffness (isolating valve closed): ≥ 0.2 MPa/mm measured in the 5–35 MPa range.
- Pressure gauge range: 0–40 MPa (400 bar) with defined accuracy, scaling and damping characteristics.
- Outlet connection: to comply with ISO 2974 (M14 × 1.5 thread).
- Internal volume elasticity and sealing: Detailed acceptance limits and a method for measuring trapped fluid elasticity (using a volume measuring device) to ensure consistent back‑leakage and leakage testing.
- Validation and maintenance: Required tests include system tightness, pump plunger leakage, valve isolation leakage, gauge integrity, and internal volume elasticity (see clause 4 and Table 1). Annex A provides informative guidance on a volume micrometer device.
Applications and who uses it
- Injector manufacturers - for production and setting of injectors to meet repeatable performance criteria.
- Test laboratories and quality control departments - to verify injector function (nozzle opening pressure, chatter/atomization, spray pattern, seat leakage, back‑leakage) under standardized apparatus conditions.
- Aftermarket and automotive service facilities - where hand‑lever injector testers are used for diagnostic and refurbishment tasks.
- Equipment manufacturers - to design and certify hand‑lever‑operated injector testing apparatus that conforms to ISO requirements.
Related standards
Using ISO 8984-1:1993 ensures consistent test apparatus performance and reliable, reproducible injector assessment across manufacturing, R&D and service environments. Keywords: ISO 8984-1:1993, diesel injector testing, hand‑lever‑operated tester, nozzle opening pressure, spray pattern, back‑leakage.

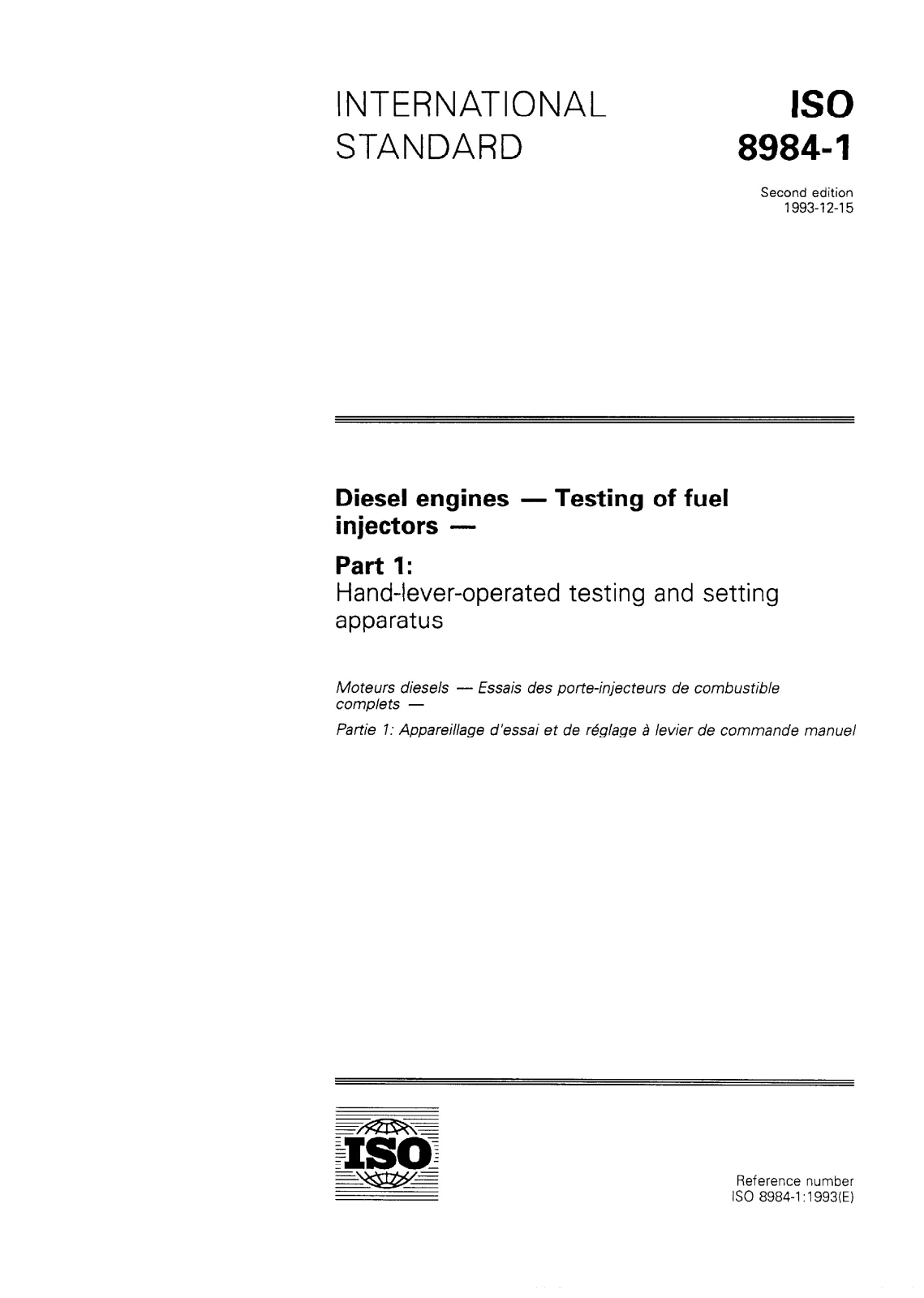

Open preview (PDF)Diesel engines — Testing of fuel injectors — Part 1: Hand-lever-operated testing and setting apparatus
