ISO 8984-2:1993 PDF

Diesel engines — Testing of fuel injectors — Part 2: Test methods

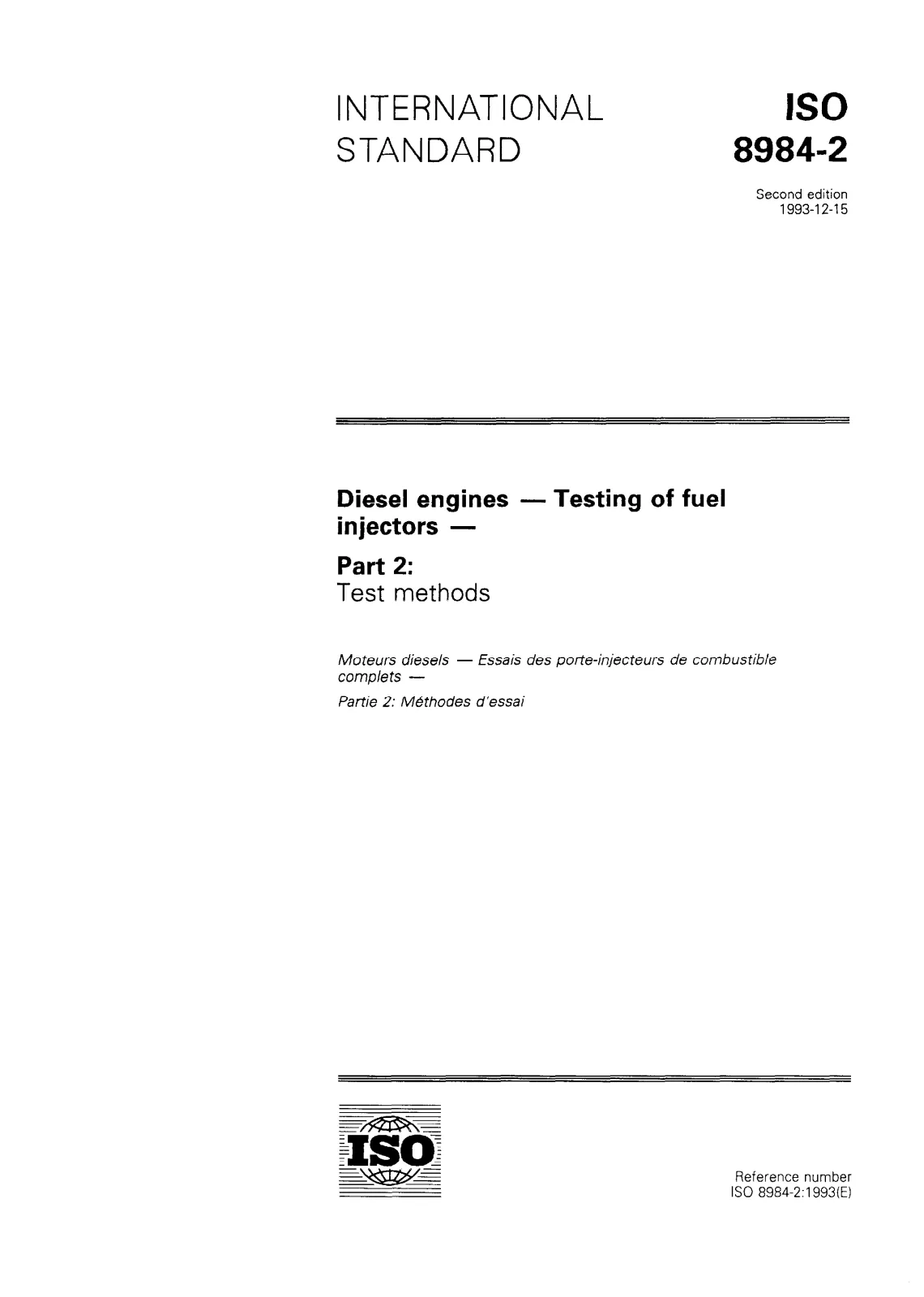

Open preview (PDF)

Title (English):

ISO 8984-2:1993

Diesel engines — Testing of fuel injectors — Part 2: Test methods

Document status:: Active
Format:: Electronic (PDF)
Number of pages:: 3
Publication date:: December 16, 1993
Edition:: ISO IS 8984 edition 2 version 1
ICS:: 43.060.40

Delivery type:

Full version25 €Read online 24h10 €Read online 72h15 €

Document language:

enru

Delivery time:Immediate download

Price:25 €

Description (English):

Specifies tests which may be performed on fuel injectors for diesel engines (requiring fuel delivery of up to 300 mm^3/(injection × cylinder) at full load) using hand-lever-operated testing and setting apparatus, as specified in ISO 8984-1. These tests are: nozzle opening pressure, chatter (atomization), spray pattern, seat leakage, back-leakage.

Technical details

Technical committee: ISO/TC 22/SC 34 - Propulsion, powertrain and powertrain fluids
SKU: ISO 8984-2:1993

Abstract

Overview

ISO 8984-2:1993 defines standardized test methods for fuel injectors used in diesel (compression-ignition) engines. It applies to injectors requiring fuel delivery up to 300 mm3/(injection × cylinder) at full load and is intended for use with the hand-lever-operated testing and setting apparatus specified in ISO 8984-1. The part focuses on repeatable bench tests to assess injector performance and leakage characteristics under controlled conditions.

Key topics and requirements

Scope and test apparatus
- Tests are carried out using hand-lever-operated apparatus conforming to ISO 8984-1.
- Calibration fluid shall conform to ISO 4113.
- Operating fluid temperature: 23 °C ± 5 °C (seek manufacturer guidance if outside this range).
- Injector-to-apparatus adaptor: specified by the injector manufacturer.
Specified tests (may be performed as required by manufacturer)
- Nozzle opening pressure - point at which fluid emits from the nozzle tip; monitor pressure rise and/or drop.
- Chatter (atomization) - assessed by sound, visual observation of spray, and feel of the operating handle.
- Spray pattern - observed by rapidly depressing the handle and compared to manufacturer specifications (do not assess during some other tests).
- Seat leakage - after verifying nozzle opening pressure, raise pressure (typically to 2 MPa / 20 bar below recorded nozzle opening pressure), hold and check that no drops separate from the tip after 10 s. Additional rules apply for calibrating injectors per ISO 4008-3.
- Back-leakage - flush injector, raise to a predetermined pressure PA, release handle and measure pressure decay time between Ps and Pc. Parameters PA/PB/PC and acceptable leakage rates reference ISO 4008-3; PA ≥ 0.5 MPa and Ps at least 2.5 MPa below nozzle opening pressure; PB and PC are referenced as 3 MPa (30 bar) where specified.

Practical applications and users

Injector manufacturers: type approval, production QC and diagnostic procedures.
OEMs and test laboratories: bench testing, component validation and supplier audits.
Service and repair workshops: diagnostic bench checks and setting of injectors when matching manufacturer procedures.
Regulatory/standards bodies and research organizations that require consistent, repeatable injector performance data.

Related standards

ISO 8984-1: Hand-lever-operated testing and setting apparatus
ISO 4113: Calibration fluid for diesel injection equipment
ISO 4008-3: Fuel injection pump testing - application and test procedures
ISO 7440-1: Calibrating nozzle and holder assemblies

Keywords: ISO 8984-2:1993, diesel engines, fuel injector testing, nozzle opening pressure, chatter, spray pattern, seat leakage, back-leakage, hand-lever-operated testing.
