Overview

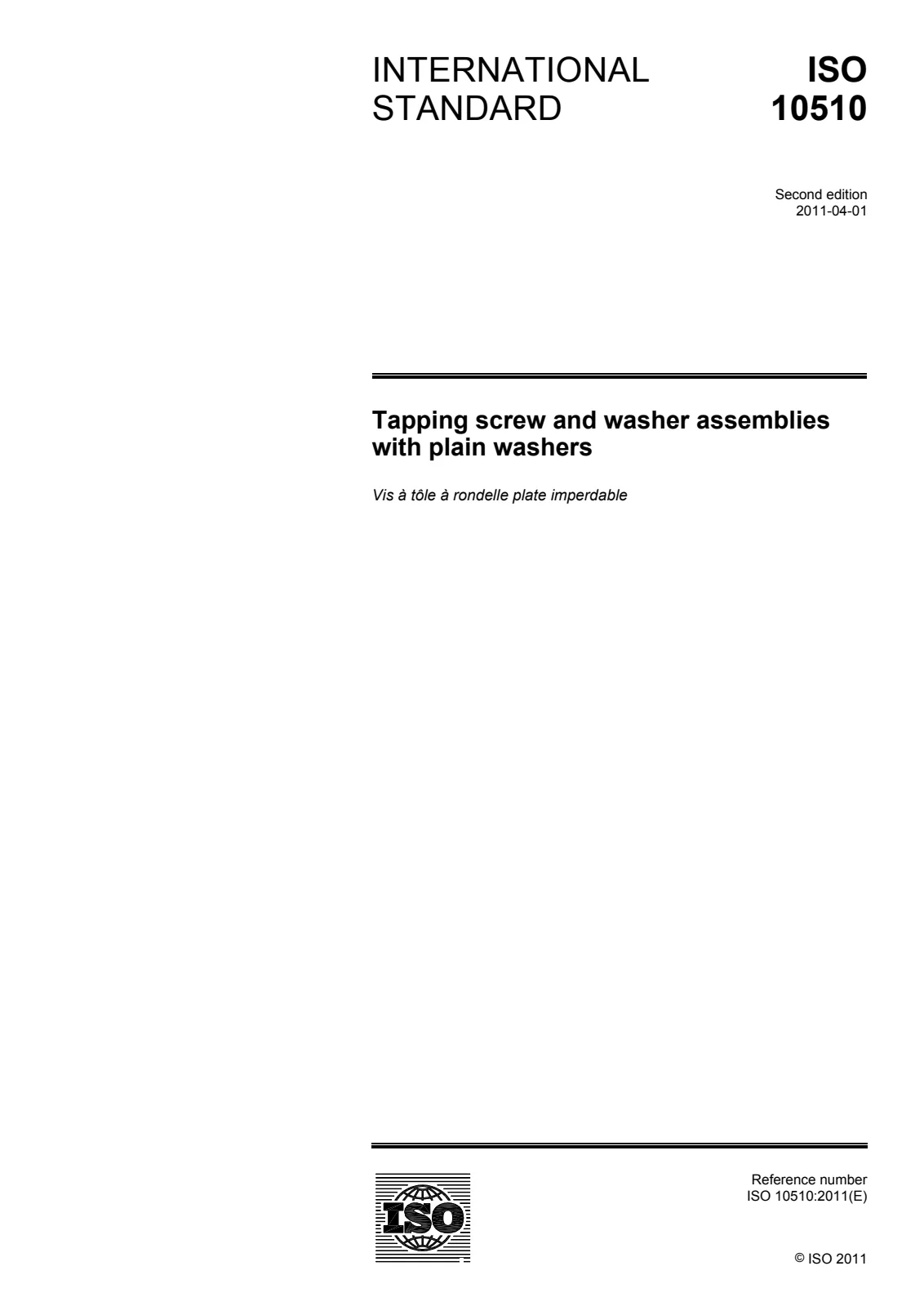

SIST EN ISO 10510:2011 is a European and International Standard developed by CEN and ISO that specifies the requirements for tapping screw and plain washer assemblies. The standard covers tapping screws with thread sizes ranging from ST2.2 to ST9.5 inclusive, equipped with flat seating heads. It defines essential mechanical properties based on ISO 2702, and details the dimensions and assembly characteristics to ensure consistent quality and performance. Plain washers used with these screws are captive-meaning they are fixed but free to rotate-and must meet hardness standards to maintain durable fixation.
This standard is essential for manufacturers, engineers, and quality assurance professionals involved in fastener production and application, ensuring product reliability and interchangeability in a broad range of industrial and construction uses.
Key Topics
- Scope and Application: Defines tapping screw sizes ST2.2 up to ST9.5 with flat heads and corresponding plain washers that are captive yet rotatable.
- Dimensional Specifications: Details on screw shank diameters, thread lengths, and washer sizes according to ISO 10669. Includes tolerances ensuring the washer fits freely around the screw without binding.
- Mechanical Properties: Screws must comply with ISO 2702 heat-treated steel mechanical properties. Washers require Vickers hardness between 90 HV and 320 HV, verified using ISO 6507-1 testing protocols.
- Designation System: A clear coding system for designation includes screw size, length, thread end type per ISO 1478, screw type symbols (hex head, pan head, slotted), and washer type (normal or large series).
- Normative References: References to related ISO standards such as ISO 1478 (tapping screw threads), ISO 1479 (hex head screws), ISO 7049 (cross-recessed screws), ISO 1481 (slotted screws), ISO 10669 (washers), and ISO 2702 (mechanical properties).
- Quality Assurance: Special attention to preventing detrimental case hardening of washers during heat treatment (e.g., copper plating) to ensure hardness requirements are met.
Applications
SIST EN ISO 10510:2011 tapping screw and washer assemblies are widely used in:
- Metal Sheet Fabrication: Providing secure fastening in thin sheet metal components.
- Mechanical Assemblies: Ensuring stable and durable screw fastening with vibration resistance due to the captive washer design.
- Automotive and Machinery: Fastening parts where precise dimensions and mechanical properties are critical.
- Construction and Electronics: Applicable wherever standard tapping screws with plain washers are required, enhancing joint integrity and reliability.
- Manufacturing Standardization: Enables producers to manufacture components that conform to universal standards, facilitating international trade.
This standard permits engineers and designers to select tapping screws and washers with confidence in compatibility, strength, and durability, reducing failure risk in finished products.
Related Standards
Understanding and applying SIST EN ISO 10510:2011 is enhanced by familiarity with these interconnected standards:
- ISO 2702: Specifies heat treatment and mechanical properties for steel tapping screws.
- ISO 10669: Covers dimensions and product grades for plain washers used with tapping screws.
- ISO 1478: Defines the thread profiles and thread end types used in tapping screws.
- ISO 1479: Details hexagon head tapping screws.
- ISO 7049: Specifications for cross-recessed pan head tapping screws.
- ISO 1481: Defines slotted pan head tapping screws.
- ISO 6507-1: Describes Vickers hardness testing method to ensure washer hardness compliance.
These standards collectively ensure a comprehensive framework for selecting, producing, and applying tapping screw and washer assemblies that meet robust performance and quality criteria. Compliance with SIST EN ISO 10510:2011 helps manufacturers deliver standardized fasteners suitable for diverse industrial and commercial applications worldwide.
