Overview

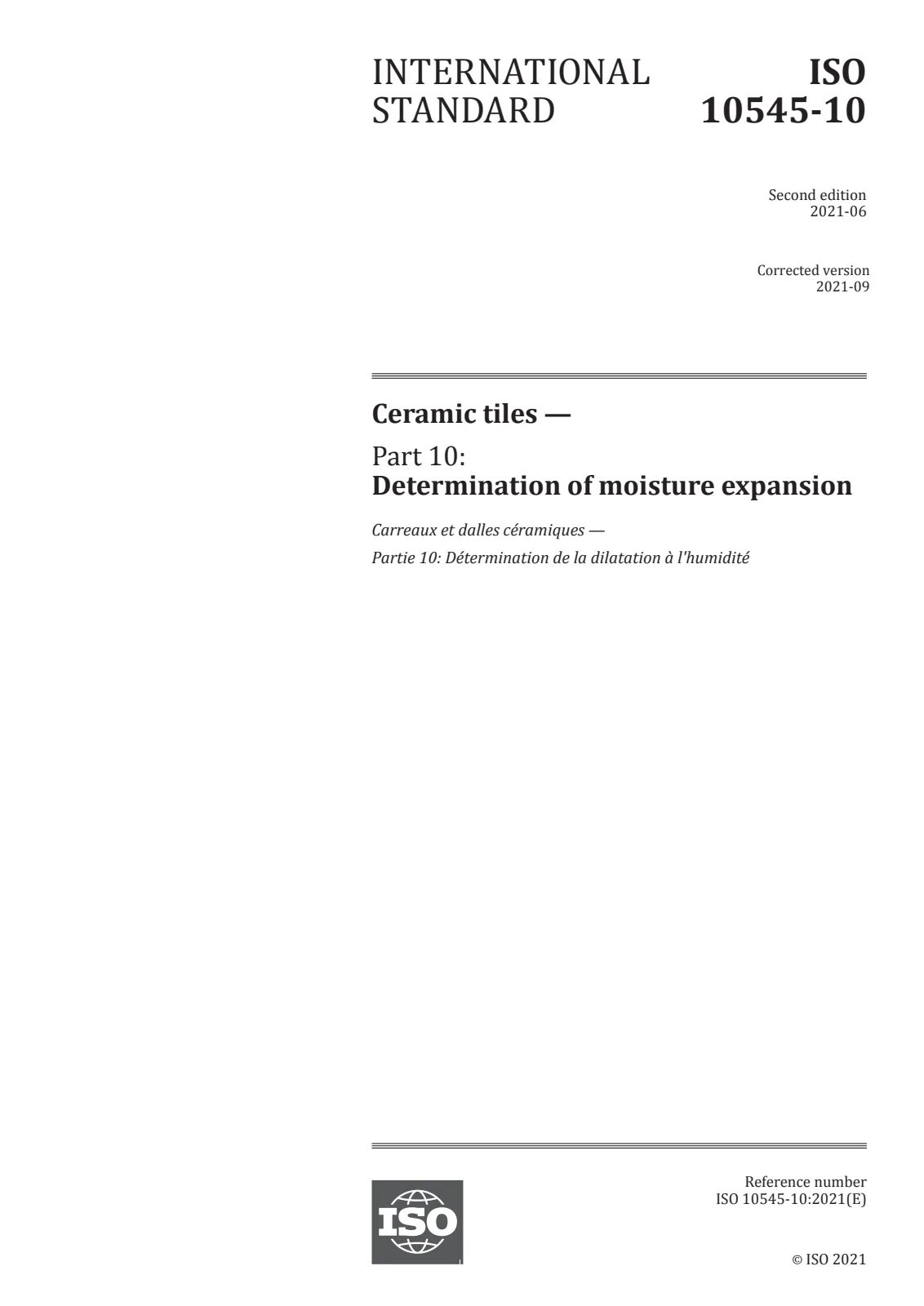

SIST EN ISO 10545-10:2021 - Ceramic tiles – Part 10: Determination of moisture expansion is an international standard published by CEN and ISO. It specifies a test method to determine the moisture expansion of ceramic tiles. Moisture expansion refers to the proportional change in size that occurs when ceramic tiles absorb water, often after they are subjected to boiling water in controlled conditions. This standard supports both manufacturers and specifiers in ensuring that ceramic tiles meet performance expectations for durability and dimensional stability.
Key Topics
- Moisture Expansion: This standard defines moisture expansion as the accelerated increase in tile dimensions resulting from prolonged water exposure, simulating real-world use and adverse environmental conditions.
- Test Procedure: The method involves subjecting reheated ceramic tile specimens to boiling water and measuring the length change with precise instruments.
- Apparatus Requirements: Key equipment includes a highly accurate measuring frame, Invar reference bars, a kiln for refiring specimens, and a boiling apparatus for water immersion.
- Specimen Preparation: Guidance is given on how to prepare whole tiles or cut specimens, based on their size, ensuring consistent and reliable testing results.
- Result Expression: Moisture expansion is expressed in millimetres per metre, with an alternative calculation as a percentage. The test report must include specific data to ensure traceability and comparability.
- Limit Recommendations: Annex A highlights that, under typical fixing and conditions, most ceramic tiles have negligible moisture expansion. However, a maximum recommended limit is stated for challenging environments or poor fixing practices.
Applications
SIST EN ISO 10545-10:2021 is vital for several stakeholders across the ceramic tile industry:
- Manufacturers: Use this standard to verify tile quality, demonstrating compliance with product guarantees for dimensional stability.
- Construction Professionals: Architects, specifiers, and contractors use moisture expansion data to select suitable tiles for environments exposed to moisture or temperature fluctuation, such as bathrooms, commercial kitchens, outdoor spaces, and swimming pool surrounds.
- Quality Control: Routine testing according to this method is essential for continuous improvement and maintaining certification for exported products.
- Regulatory Compliance: The standard provides harmonized testing conditions, supporting procurement, project specifications, and regulatory requirements across Europe and globally.
Proper implementation reduces the risk of tile deformation, cracking, or failure due to environmental factors, enhancing the long-term appearance and performance of tiled installations.
Related Standards
To achieve comprehensive ceramic tile performance and conformity, SIST EN ISO 10545-10:2021 is typically used together with other standards in the EN ISO 10545 series:
- EN ISO 10545-1: Sampling and basis for testing
- EN ISO 10545-2: Determination of dimensions and surface quality
- EN ISO 10545-3: Determination of water absorption, apparent porosity, and density
- EN ISO 10545-4: Determination of modulus of rupture and breaking strength
- EN ISO 10545-9: Determination of resistance to thermal shock
Manufacturers and users should consult the full series to ensure all relevant aspects of ceramic tile testing and performance are addressed.
Keywords: SIST EN ISO 10545-10:2021, ceramic tile standards, moisture expansion, tile testing, dimensional stability, CEN, boiling water test, ISO 10545 series, tile quality, construction standards.
