Overview

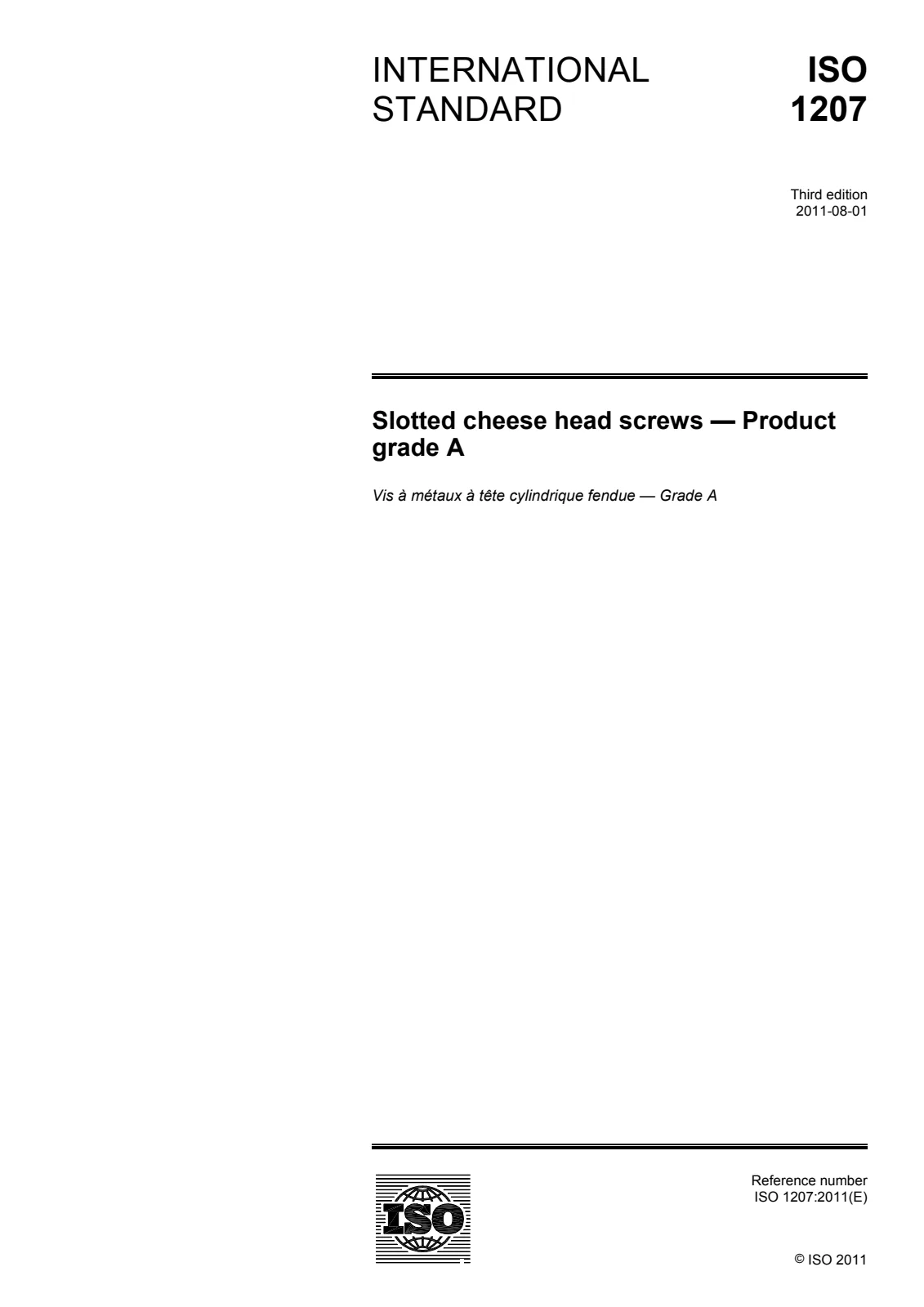

SIST EN ISO 1207:2011 - Slotted cheese head screws - Product grade A (ISO 1207:2011) - is an internationally recognized standard that specifies the characteristics and dimensions of slotted cheese head screws of product grade A. This standard, prepared by ISO Technical Committee TC 2 "Fasteners" in collaboration with CEN/TC 185, covers metric screw threads ranging from M1.6 to M10 inclusive. It ensures compatibility, interchangeability, and consistent quality in both design and manufacturing processes for slotted cheese head screws used worldwide.
Key Topics
- Product Grade A: SIST EN ISO 1207:2011 applies to slotted cheese head screws produced to high precision (grade A), which are commonly used in applications requiring strict dimensional tolerances.
- Thread Sizes: Specifies metric thread sizes from M1.6 up to and including M10, making the standard suitable for a wide array of fastening needs.
- Material Flexibility: Covers screws made from steel, stainless steel, and non-ferrous metals, allowing for selection based on mechanical and environmental requirements.
- Interoperability: Adopts internationally consistent definitions and symbols for screw dimensions, ensuring global compatibility.
- Referenced Standards: Incorporates references to related ISO documents for mechanical properties, surface finishes, acceptance inspection, and tolerances, such as ISO 261 (thread profiles), ISO 898-1 (mechanical properties), ISO 4042 (coating requirements), and ISO 3269 (acceptance inspection).
Applications
Slotted cheese head screws standardized by SIST EN ISO 1207:2011 are widely used in multiple industries where reliable fastening with precise tolerances is necessary, including:
- Industrial Machinery: Ensures secure assembly and alignment, vital for machine tools, automotive components, and electrical devices.
- Electronics: Commonly used in cases and assemblies where controlled tightening is crucial and where ease of removal for maintenance is required.
- Equipment Manufacture: Ideal for fastening components in consumer appliances, control panels, and instrumentation.
- Construction and Assembly: Frequently used for applications demanding moderate to high precision and where access for a slotted driver is available.
By adhering to this standard, manufacturers and engineers can ensure compatibility with globally sourced fasteners, maintain product quality, and streamline procurement processes.
Related Standards
For comprehensive specification and quality assurance, SIST EN ISO 1207:2011 is used in conjunction with several related standards:
- ISO 261: General plan for metric screw threads.
- ISO 898-1: Mechanical properties of carbon and alloy steel fasteners.
- ISO 965-2, ISO 965-3: Tolerances for screw threads.
- ISO 4759-1: Tolerances for fasteners - specifically product grades A, B, and C.
- ISO 3269: Acceptance inspection for fasteners.
- ISO 4042, ISO 10683, ISO 16048: Surface treatment and coatings, including electroplating and passivation.
- ISO 8839: Mechanical properties for non-ferrous metal fasteners.
- ISO 8992: General requirements for bolts, screws, and studs.
Practical Value
Implementing SIST EN ISO 1207:2011 provides clarity and uniformity in the selection, specification, and quality control of slotted cheese head screws. Adherence to this standard benefits manufacturers, distributors, and end users by:
- Reducing errors and miscommunication in global supply chains
- Ensuring product reliability and safety through standardized testing and inspection
- Enabling seamless replacement and maintenance using standardized fasteners
Overall, SIST EN ISO 1207:2011 is essential for anyone involved in the design, procurement, or application of slotted cheese head screws in modern engineering and manufacturing environments.
Keywords: slotted cheese head screws, ISO 1207:2011, SIST EN ISO 1207:2011, product grade A, metric screws, fastener standards, bolts, precision screws, mechanical properties, standardization.
