Overview

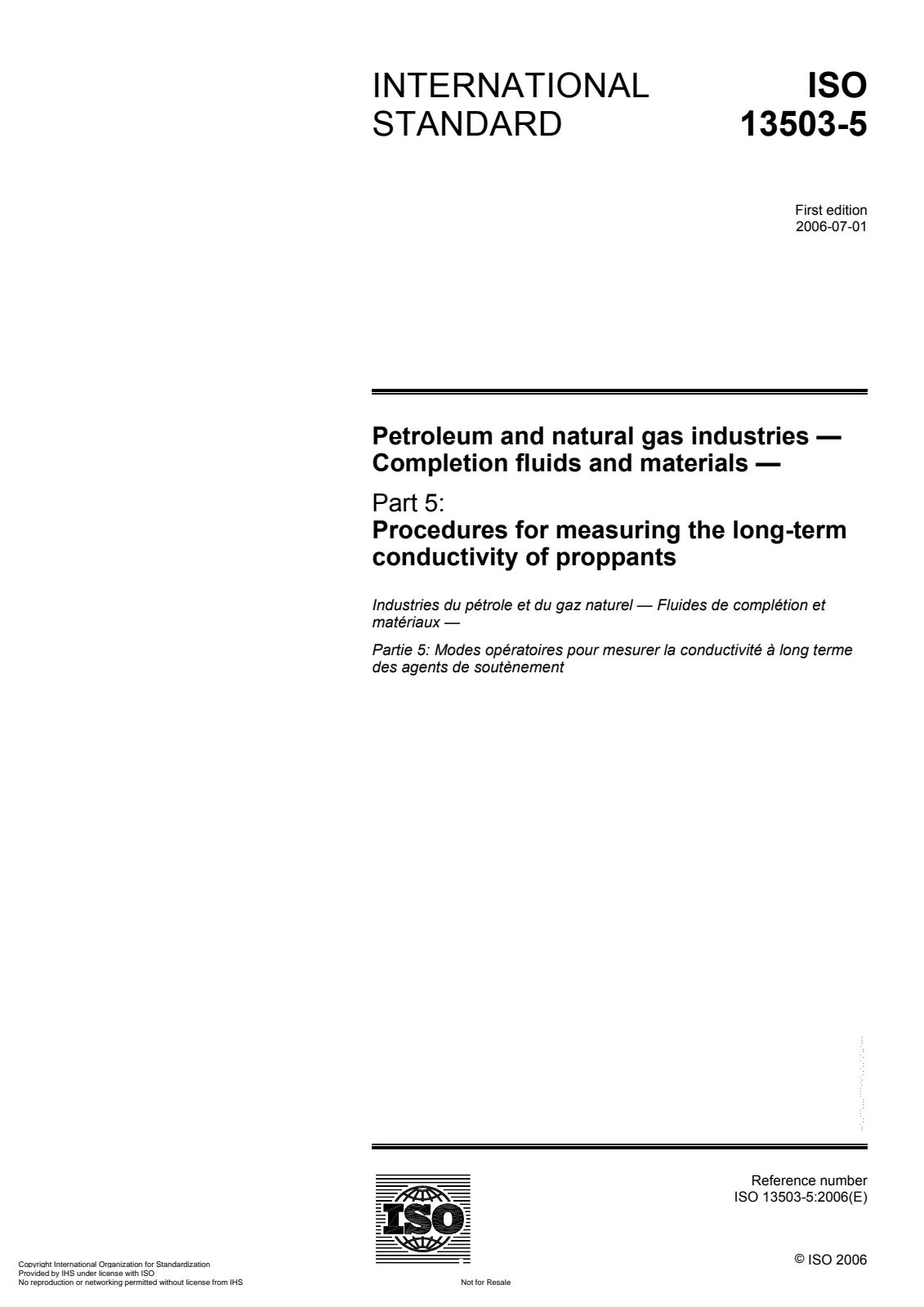

EN ISO 13503-5:2006 (CEN adoption of ISO 13503-5:2006) defines standardized laboratory procedures for measuring the long-term conductivity of proppants used in hydraulic fracturing and gravel-packing operations. The standard establishes consistent test methods for proppant materials - including sand, ceramic media, resin-coated proppants and gravel-pack media - to enable repeatable comparisons of proppant pack permeability and conductivity under controlled laboratory conditions.
Note: the standard explicitly states these laboratory tests are not intended to provide absolute proppant pack conductivity values under downhole reservoir conditions.
Key topics and technical requirements
- Scope & objective: Provide a consistent methodology for long-term proppant conductivity evaluation rather than downhole-absolute values.
- Test apparatus and setup: Requirements for test units, hydraulic load frames, pack width measurement devices, fluid drive systems and differential pressure transducers.
- Test fluids & materials: Specification and handling of test fluids, and use of reference media (e.g., sandstone) where applicable.
- Environmental control: Temperature control, oxygen removal, and silica saturation monitoring to reproduce long-term chemical conditions.
- Calibration & leak testing: Procedures for calibrating pressure indicators, flow rates, pack width measurements and leak verification of systems.
- Cell loading and press procedures: Stepwise methods for preparing, loading and compressing proppant cells in the press.
- Data acquisition & calculations: Methods for collecting flow/pressure data and calculating permeability and conductivity (fracture width × permeability).
- Reporting & annexes: Required data reporting elements and informative/normative annexes (conversion factors; silica-saturation vessel setup; figures and bibliography).
Practical applications and users
EN ISO 13503-5:2006 is primarily used by:
- Petroleum and completion engineers comparing proppant performance for hydraulic fracturing and gravel packing
- Laboratory technicians and test facilities performing proppant qualification and QA/QC
- Proppant manufacturers validating product conductivity characteristics
- R&D groups assessing the long-term stability and degradation of proppant packs
Typical uses include comparative material selection, quality control testing, and research into factors affecting long-term pack conductivity (e.g., temperature, cyclic stress, embedment, fracturing-fluid residues, formation fines).
Related standards
EN ISO 13503 is a multi-part series on completion fluids and materials. Part 5 complements other parts (e.g., Parts 1–4) that cover viscous properties, proppant properties, heavy brines and leakoff testing. Users should consult the other ISO 13503 parts and referenced industry guidance (API/ASTM documents) for a complete test and evaluation framework.
Keywords: EN ISO 13503-5:2006, ISO 13503-5, proppant long-term conductivity, hydraulic fracturing testing, gravel packing, proppant pack conductivity, laboratory procedures.
