Overview

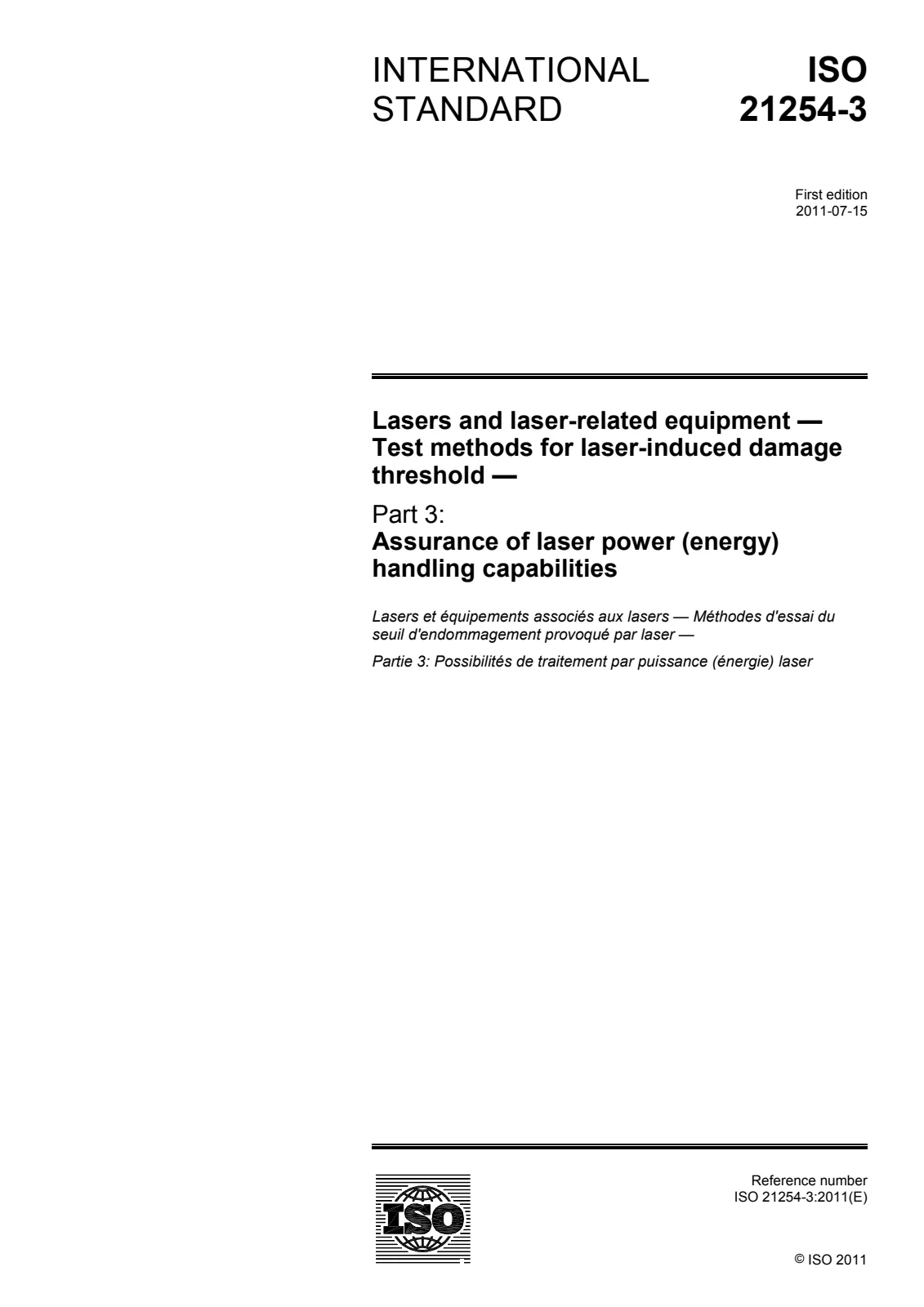

EN ISO 21254-3:2011 (ISO 21254-3:2011) defines standardized test methods to assure the power (energy) handling capability of optical surfaces exposed to laser radiation. It specifies two complementary approaches - a rigorous (type 1) assurance test with quantified confidence in the absence of low-threshold defects, and a simple, empirical (type 2) screening test for cost‑effective production checks. The standard applies to coated and uncoated optics across laser wavelengths and pulse lengths and supports consistent, comparable laser‑induced damage threshold (LIDT) verification.
Key topics and requirements
- Two test types
- Type 1 (rigorous): statistical sampling to demonstrate, at a specified confidence level (γ), that no defects below a chosen assurance level (φ) (energy or power density) are present across an agreed fraction of the optic.
- Type 2 (empirical): higher‑rate, lower‑cost screening using empirically derived test levels for production environments.
- Parameters and metrics
- Assurance level (φ): energy density (J/cm²) for pulsed lasers, or linear power density (W/cm) for cw/quasi‑cw systems.
- Assurance area and fraction tested (A, A_test, f): defines how much of the optic must be interrogated to meet the confidence goal.
- Site spacing and array geometry: distance between test sites is determined from assurance area, test area and chosen packing (hexagonal or square); beam overlap (Ωx, Ωy) and beam profile (flat‑top preferred) must be considered.
- Test modality: selection of 1‑on‑1 or S‑on‑1 interrogation, pulse repetition frequency, and microscopic pre/post inspection to detect damage.
- Reporting and accuracy: the standard specifies test-report content and accuracy considerations to allow inter‑laboratory comparison.
- Safety note: extrapolating damage data can be hazardous with toxic materials (see ISO 21254‑1); users must observe material safety precautions.
Practical applications
- Acceptance testing and lot sampling of laser optics, mirrors, coatings and windows.
- Non‑destructive verification for high‑power laser systems (research, industrial, medical, defense, and aerospace).
- Production screening and quality assurance for optical component manufacturers.
- Sub‑aperture inspection and witness sampling during assembly or integration of laser systems.
Who should use this standard
- Optical component manufacturers and coating houses
- Laser system integrators and OEMs
- Test laboratories and QA teams performing LIDT verification
- Procurement and specification engineers who need verified power/energy handling data
Related standards

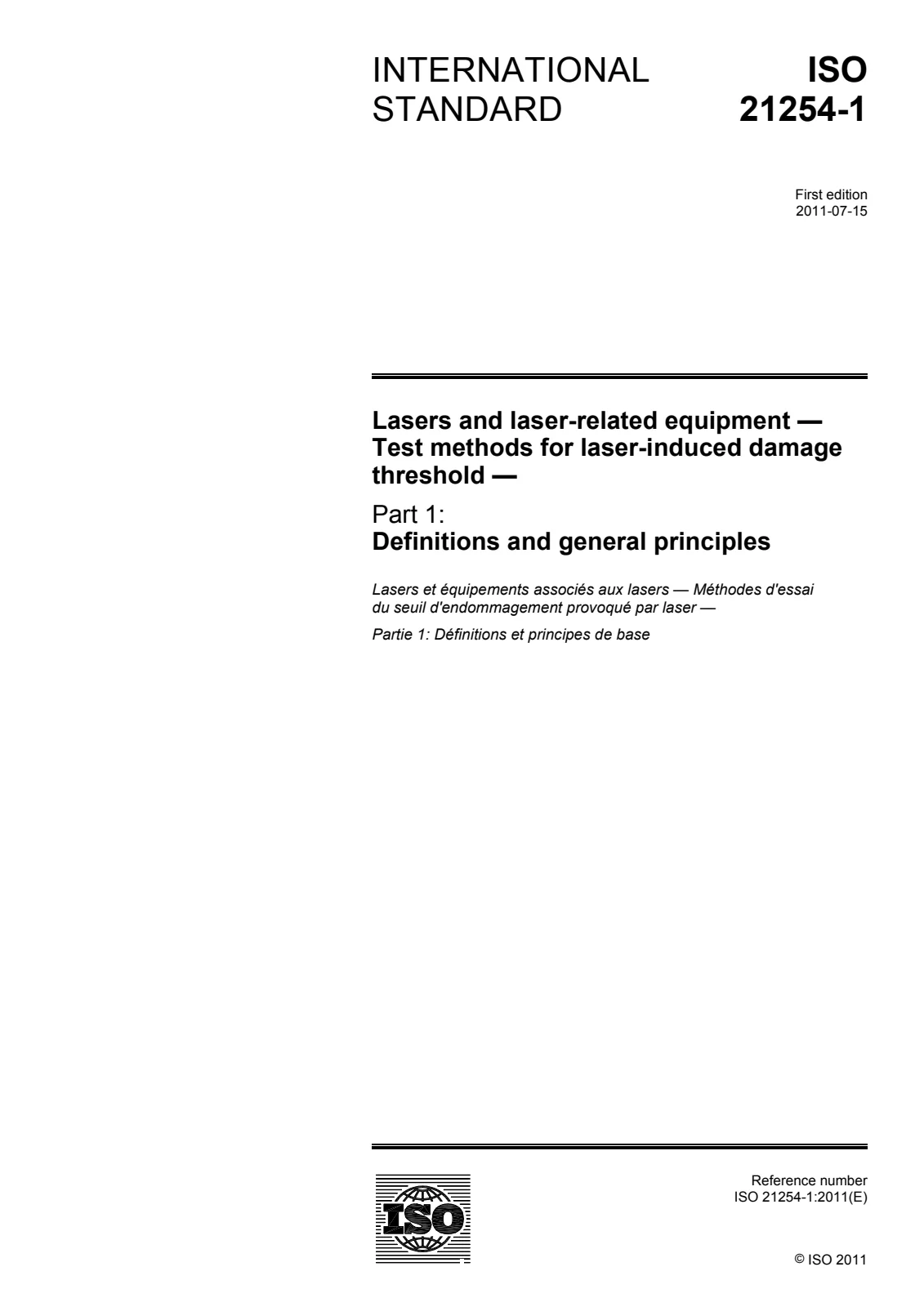

- ISO 21254‑1:2011 - Definitions and general principles (referenced normative)
- ISO 21254‑2 - Threshold determination methods
- ISO 21254‑4 - Inspection, detection and measurement (Technical Report)
- ISO 11145 - Optics and photonics vocabulary and symbols
Keywords: laser-induced damage threshold, LIDT, power density, energy density, assurance test, optical components, flat-top beam, confidence level, laser damage testing.
