Overview
SIST EN ISO 3521:2000 is an international standard developed by CEN for determining the overall volume shrinkage of unsaturated polyester and epoxy resins. This method provides a reliable way to measure the combined shrinkage that occurs during resin curing and after cooling to ambient temperature. As a technical revision of the original 1976 edition, it reflects updated procedures for improved accuracy and consistency in volume shrinkage assessment.
Volume shrinkage is a critical property affecting the dimensional stability, mechanical performance, and quality of thermosetting plastic materials widely used in industrial and manufacturing applications. The standard focuses on measuring volume changes in resin compositions by evaluating their specific gravity before and after curing, offering an essential tool for material characterization in quality control and product development.
Key Topics
-
Scope of Measurement
Applicable to unsaturated polyester and epoxy resins, the method addresses both shrinkage during the curing process and post-curing cooling shrinkage to ambient temperature.
-
Definition of Overall Volume Shrinkage
Calculated as the percentage reduction of volume based on changes in specific gravity before and after curing.
-
Test Principle
Measurement of resin specific gravity immediately after mixing and after curing/conditioning at 23°C. The difference in densities quantifies volume shrinkage.
-
Apparatus and Materials
- Precision balance with 1 mg accuracy
- Sinker with known volume, avoiding wall effects
- Temperature-controlled silicone-oil bath
- Test tubes and suspension wires
-
Test Procedures
Distinct processes depending on resin curing temperature:
- For cure at elevated temperatures: specific gravity is measured over time during curing to extrapolate zero-time density.
- For ambient cure resins: densities of individual components are measured separately then combined by calculation.
-
Calculation Methods
Includes formulas for calculating initial and post-cure specific gravity and volume shrinkage percentage.
-
Post-Curing and Sample Conditioning
Guidelines for post-curing treatments and repeated weighings to ensure accurate density measurement.
-
Reporting Requirements
Reports must include standard reference, material identification, volume shrinkage percentage, and any deviations from the method.
Applications
-
Quality Control in Plastics Manufacturing
Ensures consistency in resin batches by monitoring volume shrinkage which affects product dimensions and performance.
-
Material Research and Development
Assists scientists and engineers in evaluating the effects of formulation changes on resin shrinkage properties.
-
Performance Prediction for Composite Materials
Volume stability data supports design decisions for composites used in automotive, aerospace, and construction industries.
-
Process Optimization
Informs curing cycles and conditions to minimize defects related to shrinkage, such as warping or cracking.
-
Regulatory Compliance
Helps manufacturers meet product standards that require adherence to specified shrinkage limits.
Related Standards
-

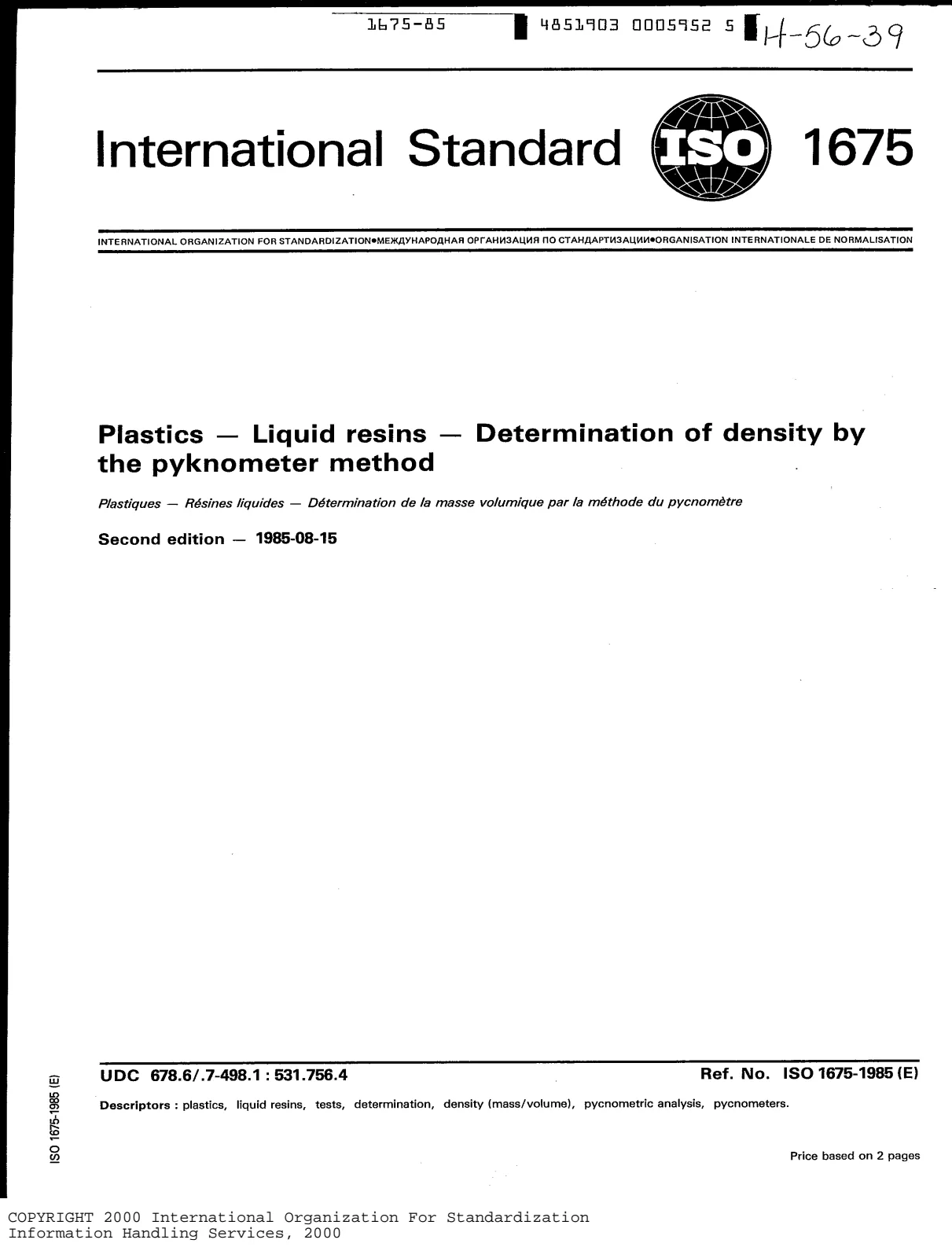

ISO 1675:1985 - Provides methods for determining the density of liquid resins by pyknometer, referenced within EN ISO 3521 for specific gravity measurements.
-
ISO 61 - Test methods for the determination of shrinkage and dimensional stability in plastics, useful for complementary assessments.
-
ISO 9001 - Quality management systems standard, applicable for implementing testing and reporting procedures related to resin shrinkage.
-
ASTM D2566 - Comparable standard for measuring volume shrinkage of unsaturated polyester resins, relevant for cross-referencing international methods.
