Overview

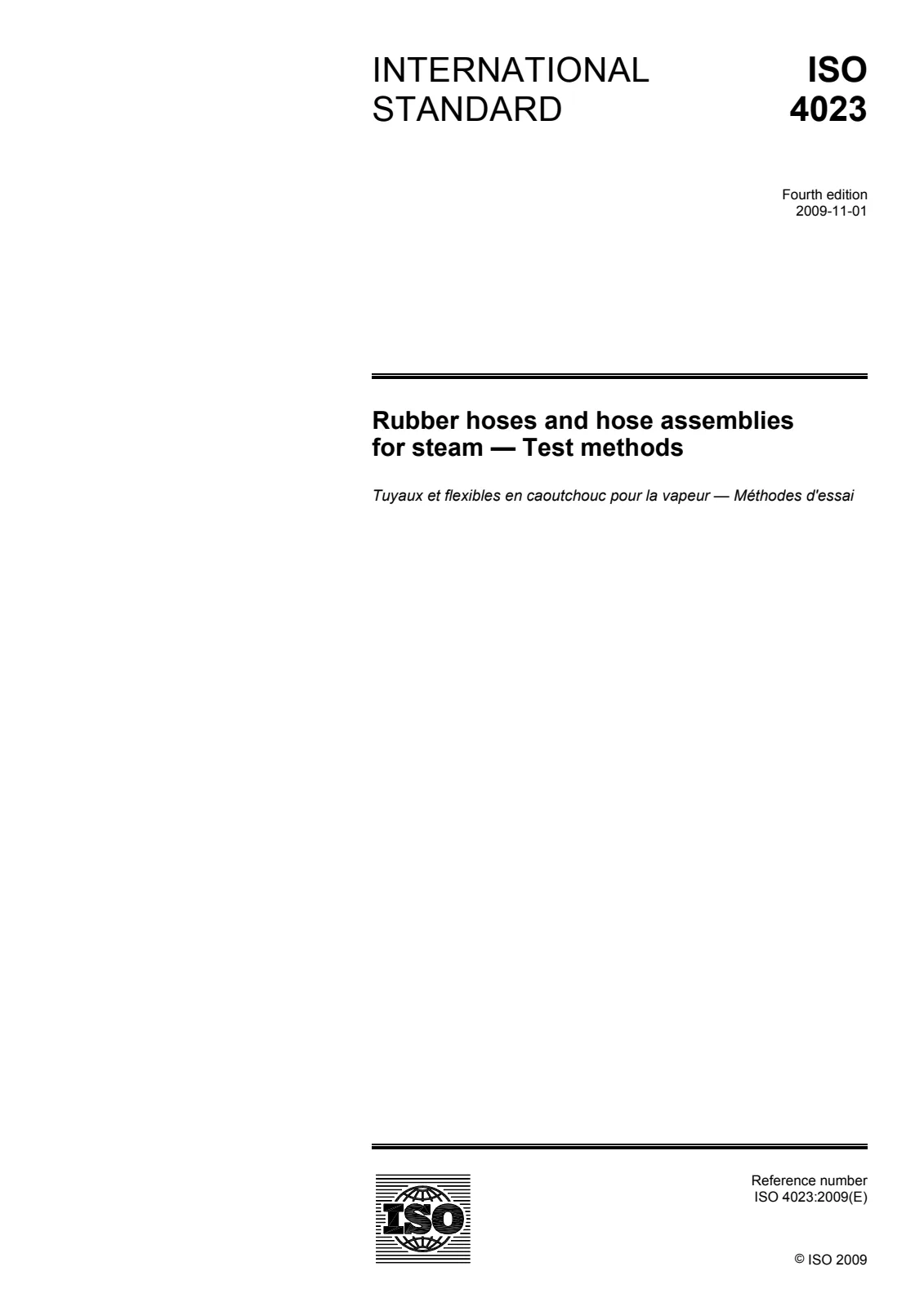

EN ISO 4023:2009 - Rubber hoses and hose assemblies for steam: Test methods defines standardized laboratory procedures for exposing rubber hose test pieces and complete hose assemblies to saturated steam to simulate real service conditions. The standard specifies four principal steam test methods (vertical and horizontal rack tests and two flexing arrangements) and sets out how to perform the tests, report results and handle common assembly issues such as initial end‑fitting leakage.
Key topics and technical requirements
- Scope: Test methods apply to rubber hoses and hose assemblies subjected to saturated steam; the precise steam pressure, temperature and exposure time for a particular hose type are given in the related product specification (see ISO 6134).
- Four methods specified:
- Method A - Vertical rack: Test pieces are held vertically while steam passes through.
- Method B - Horizontal rack: Test pieces are supported horizontally allowing sag and condensate collection.
- Method C - Flexing test, vertical arrangement: Hoses are flexed in a vertical arrangement under steam exposure.
- Method D - Flexing test, horizontal arrangement: Flexing under steam with horizontal layout.
- Test specimens: Hoses and hose assemblies must be of minimum length (specified in the standard) and, for assemblies, fitted with the recommended end fittings and couplings.
- Performance checks: Relevant product standards (e.g., ISO 6134) normally specify which physical properties to measure after exposure - commonly bursting strength, tensile strength, elongation at break, layer adhesion, and visually assessed criteria (cracking, blistering, reinforcement rupture). Some standards allow the time to failure as a criterion.
- End‑fitting leakage: Initial tightening to stop slight initial leakage is permitted (unless forbidden by the product standard); further tightening to stop later leakage is not allowed - such leakage constitutes test failure.
- Reporting requirements: Test reports must include a full description of the test piece, reference to EN ISO 4023:2009 (method used), applicable acceptance criteria, visual assessments, measured physical results, time to failure (if applicable) and special observations.
Practical applications
- Quality control and acceptance testing of steam hoses used in steam systems
- Type approval and validation of hose assemblies and end fittings
- Product development and comparative endurance testing under simulated steam service
- Failure analysis and forensic testing after in-service problems
Who uses this standard
- Hose manufacturers and assemblers
- Independent testing laboratories and certification bodies
- Maintenance and procurement engineers in industries using steam (power generation, chemical and petrochemical, food processing, heating systems)
- Standards committees and compliance officers
Related standards
- ISO 6134 - Rubber hoses and hose assemblies for saturated steam - Specification (referenced for test conditions and acceptance criteria)
Keywords: EN ISO 4023:2009, rubber hoses, hose assemblies, steam test methods, saturated steam, vertical rack, horizontal rack, flexing test, hose testing, ISO 6134.
