Overview - EN ISO 5821:2025 (Female electrode caps for spot welding)

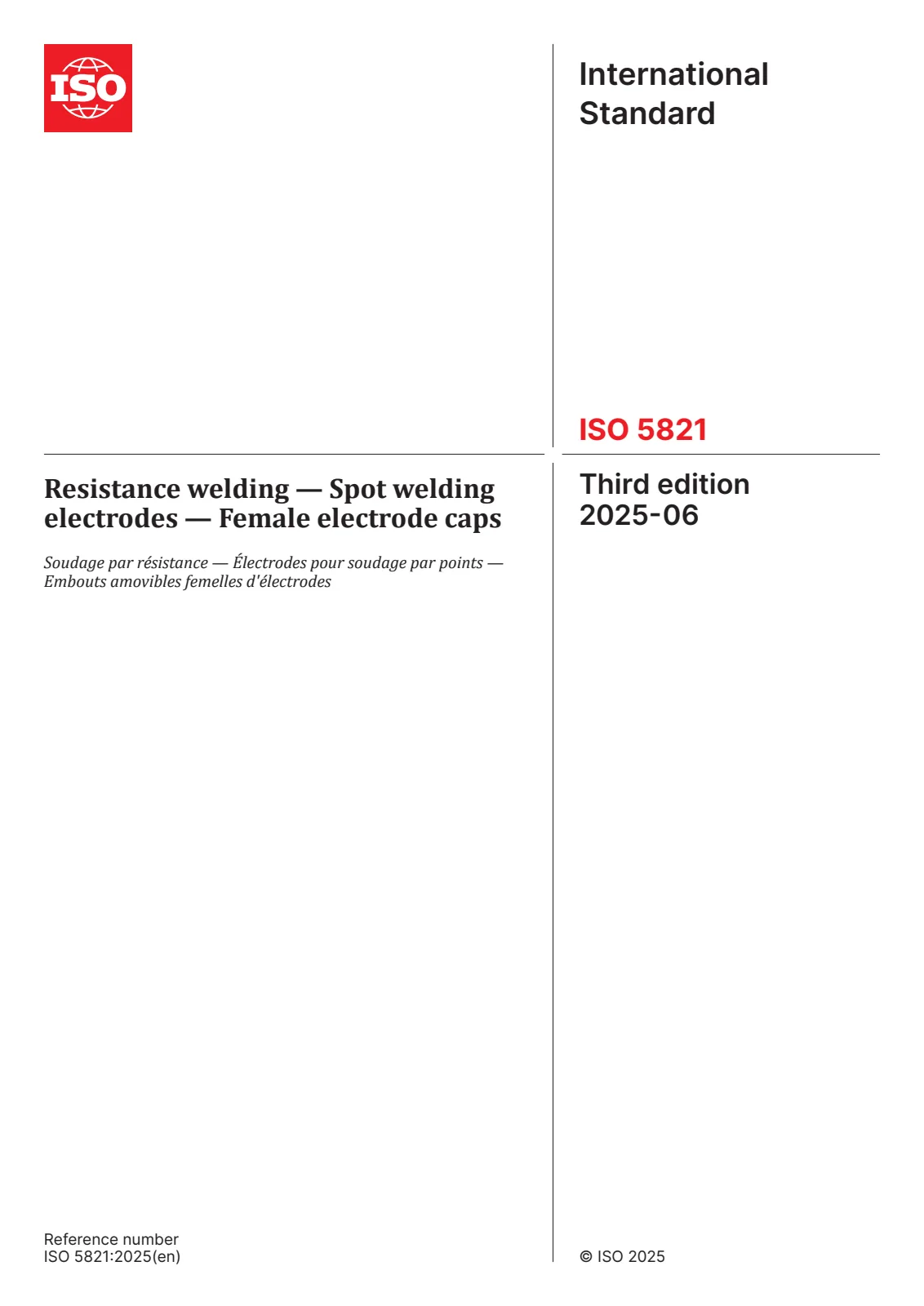

EN ISO 5821:2025, adopted by CEN from ISO 5821:2025, specifies the dimensions and tolerances of female electrode caps used for resistance spot welding of metallic materials. This third edition updates and replaces the previous edition (2009/2010) and standardizes preferred taper 1:10 configurations, dimensional tables, and marking/designation rules to ensure interchangeability and reliable welding performance.
Key topics and technical requirements
- Scope: Dimensions and tolerances for female (internal taper) electrode caps for resistance spot welding.
- Taper fits: Taper dimensions and tolerances follow ISO 1089; locking tapers are covered separately by ISO 20168.
- Materials: Electrode materials must comply with ISO 5182 (materials for electrodes and ancillary equipment).
- Dimensions & types: Standard defines multiple cap types (e.g., A0, B0, C0, D0, D1, E0, F0, F1, G0) with preferred values in Table 1 and accompanying drawings (Figure 1).
- Tolerances: Numeric tolerances (examples from Table 2) include:
- d ± 0,15 mm (outer diameter)
- d1 ± 0,2 mm
- l ± 0,5 mm (nominal lengths where applicable)
- α ± 1° (angle)
- c (circularity) ± 0,02 mm
- Performance guidance: Informative Table 3 gives example maximum electrode forces (for d = 13, 16, 20 mm) depending on electrode hardness (≤ 150 HV and > 150 HV).
- Cooling features: Illustrative water‑cooling hole bottom profiles and guidance on hole depth (Figure 2) to improve cooling efficiency for different cap lengths.
- Designation, labelling & marking: A standard designation format is defined (example sequence: “ISO 5821 - Type - d - l - R - d1 - α - e”), plus package labelling and individual cap marking requirements.
Applications and who uses this standard
- Welding equipment and electrode manufacturers - design, produce and specify compatible female electrode caps.
- Tooling and maintenance engineers - ensure proper cap selection, interchangeability and maintenance (tip dressing, cooling).
- Quality, procurement and compliance teams - verify incoming parts meet dimensional tolerances and marking/traceability needs.
- Welding process engineers - match cap geometry, contact area and cooling to welding schedules and base materials.
