Overview
SIST EN ISO 7822:2000 is an international standard developed by CEN and ISO for the assessment of void content in textile glass reinforced plastics (TGRP). The void content, or volume of air pockets and gaps within the composite, is a critical factor influencing the mechanical and physical properties of reinforced plastics. This standard specifies reliable methods to accurately determine void content using loss on ignition, mechanical disintegration, and statistical counting techniques. It primarily applies to composites where constituents are solid materials, focusing on enhancing quality control and consistency in manufacturing textile glass reinforced plastics.
Key Topics
-
Void Content Determination
The standard covers three principal methods to evaluate void content in textile glass reinforced plastics:
- Method A: Loss on Ignition
Measures voids based on weight loss due to burning off resin components, effective when test effects on materials are well known.
- Method B: Mechanical Disintegration
Involves crushing the composite to open voids and measuring volume differences; suitable when densities are unknown or indeterminable.
- Method C: Statistical Counting
Uses micrographic sections analyzed under a microscope with grid overlay to statistically count void fractions, applicable for void content ≤1% by volume.
-
Measurement Principles and Accuracy
- Loss on ignition assumes known behavior of resin and fibers during ignition.
- Mechanical disintegration is destructive and requires careful handling, especially with ductile matrix materials.
- Statistical counting provides high accuracy with potential for manual or automated analysis.
-
Apparatus and Equipment
The methods require precision instruments such as muffle furnaces, pyknometers for volume measurement, disintegration presses, microscopes with grid oculars, polishing machines and embedding molds for micrographic sample preparation.
-
Sample Preparation and Conditioning
Proper specimen dimensions and conditioning under standard atmospheres are essential for reproducibility. Specimens must be clean, dry, and representative of the composite material.
-
Calculation and Reporting
The void content is expressed as a percentage of composite volume. Detailed formulas and procedures are provided for calculating densities, volumes, and void percentages. Test reports include method details, material descriptions, number of specimens, individual and average results, and additional observations relevant to the applied method.
Applications
-
Quality Control in Composite Manufacturing
Manufacturers of textile glass reinforced plastics use EN ISO 7822 to monitor and control void content, which impacts mechanical strength, durability, and performance of finished products.
-
Material Characterization
This standard aids researchers and engineers in assessing the internal structural integrity of composites, enabling improved design and formulation of reinforced plastics.
-
Failure Analysis and Compliance
Helps in diagnosing defects related to voids, which can lead to premature failure, and ensures compliance with industry specifications demanding maximum void limits.
-
Research and Development
Supports R&D efforts in composite materials by providing standardized, reproducible methods for quantifying internal porosity in textile glass reinforced plastics.
Related Standards
EN ISO 7822 references and aligns with several key standards for broad compatibility and accuracy:
- ISO 291:1977 – Plastics: Standard atmospheres for conditioning and testing

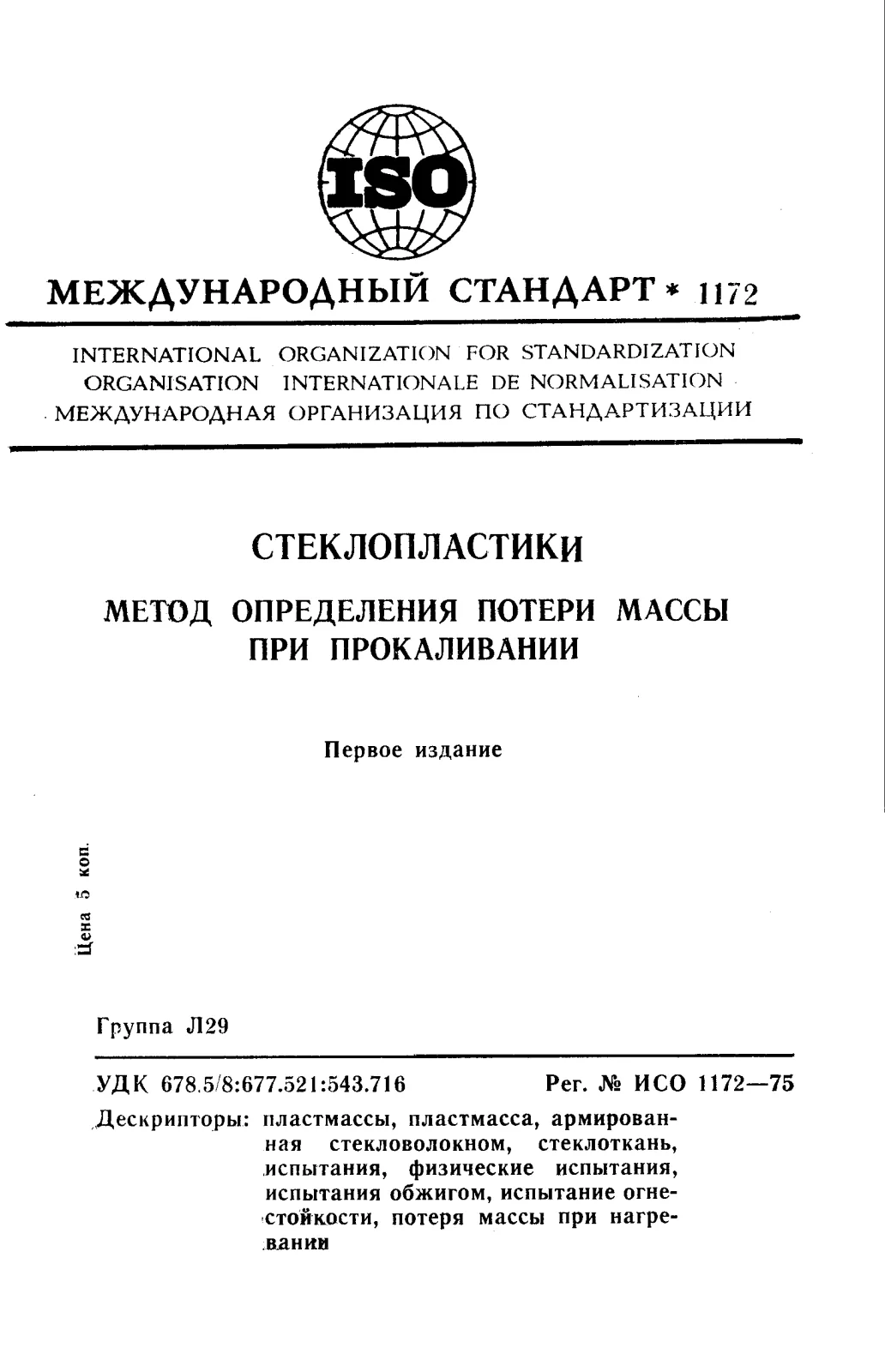

- ISO 1172:1975 – Textile glass reinforced plastics: Determination of loss on ignition
- Technical committee references related to plastics and reinforced materials processing.
These related standards ensure controlled testing environments, sample conditioning, and consistency in measurement techniques for the composite materials testing industry.
For industries involved with reinforced plastics, strictly following EN ISO 7822 enhances product reliability and supports international quality benchmarks by providing methods to accurately detect and quantify void content in textile glass composites. This comprehensive approach to void evaluation is essential for optimizing composite performance and durability.
