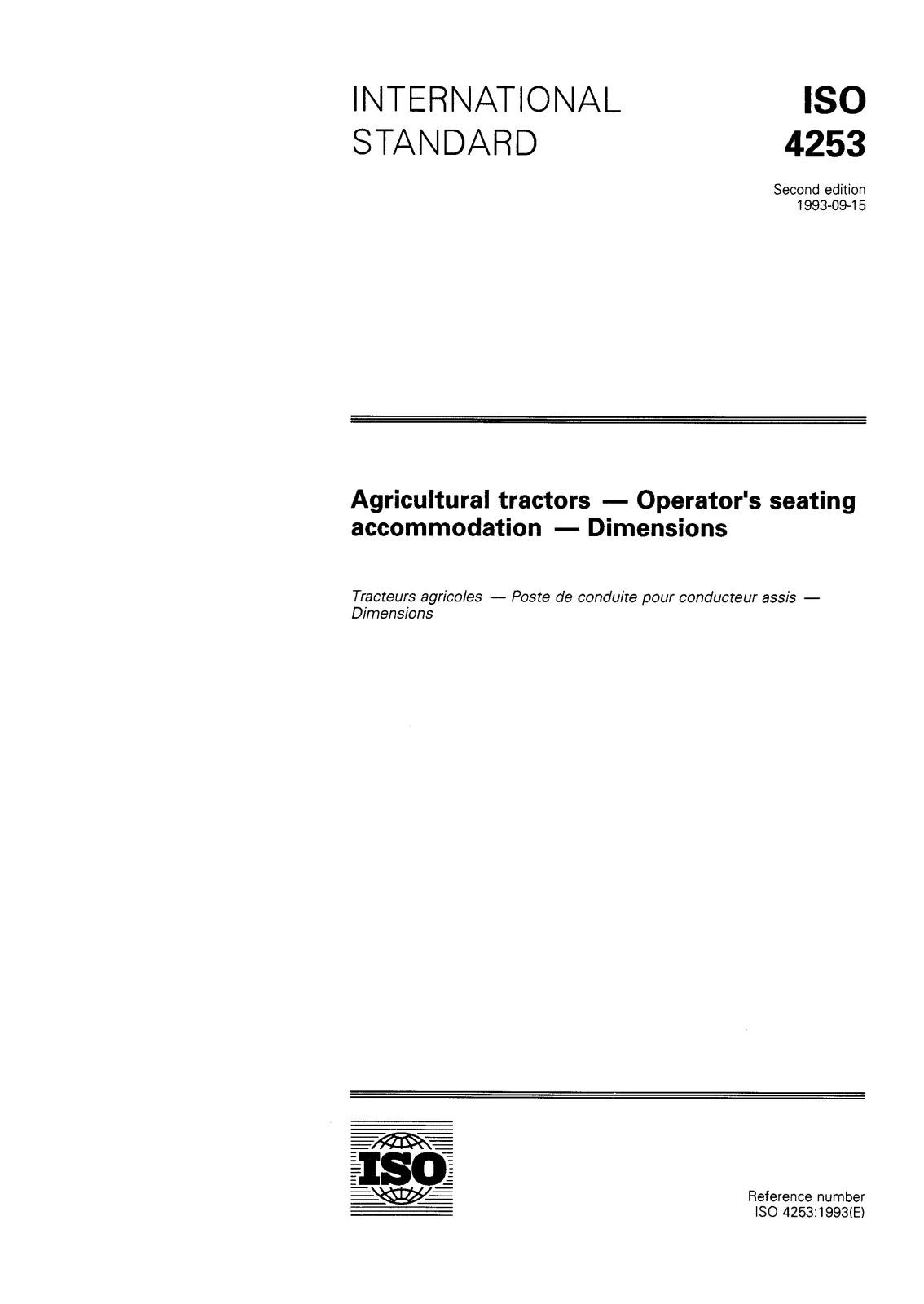

Overview - ISO 4253:1993 (Agricultural tractors - Operator's seating accommodation - Dimensions)
ISO 4253:1993 specifies dimensional and positional requirements for the operator’s seating accommodation on agricultural tractors with a track width greater than 1 150 mm. The standard defines the Seat Index Point (SIP) as the reference, and gives rules for locating key controls - steering wheel, clutch pedal, brake pedal(s) and throttle/accelerator pedal - relative to the SIP. These standardized dimensions support ergonomic, safe and consistent cab and seat design for tractor manufacturers and equipment designers.
Key topics and technical requirements
- Scope: Applies to seated operator accommodations on agricultural tractors with track width > 1 150 mm.
- Seat Index Point (SIP): All dimensions and control locations are referenced to the SIP (ISO 5353 referenced).
- Seat geometry:
- Inclination of the seat cushion: between 3° and 12° measured per ISO 5353 loading device.
- Preferred adjustable ranges for seat position (longitudinal and vertical) are specified to accommodate different operator postures.
- Control locations:
- Pedal order (left to right): clutch (left), brake(s) (right), accelerator (if present) (right).
- The distance of the accelerator forward of the SIP must not exceed 90% of a key dimension (l1) defined in the standard.
- Measurement points:
- Pedal measurement point: intersection of the longitudinal and transverse median lines of the pedal contact surface.
- Steering-wheel measurement point: intersection of the steering-column axis with the plane of the wheel rim.
- Steering wheel:
- Lateral offset of the steering axis may be up to +50 mm from the SIP longitudinal axis.
- Steering-wheel angle choice depends on operator posture and wheel diameter; allowed angle range 0° to 40°.
- Usability: Seat adjustments (longitudinal and vertical) must be achievable without tools and be independent of each other.
Applications - who uses ISO 4253
- Tractor OEMs and cab designers for consistent, ergonomic layout of seats and controls
- Agricultural equipment ergonomists and human factors engineers
- Safety and compliance teams assessing operator reach and posture
- Component suppliers (seats, pedal boxes, steering systems) for dimensional compatibility
- Test laboratories and regulators evaluating operator accommodations
Related standards
- ISO 5353:1978 - Point of the operator seat (SIP) (referenced)
- ISO 3789 parts (referenced) - Operator control locations and operation for tractors and agricultural machinery
ISO 4253 helps ensure ergonomic, safe and interoperable tractor operator stations by standardizing how the seat and primary controls are dimensioned and positioned relative to the SIP. Keywords: ISO 4253, agricultural tractors, operator seating, seat index point, SIP, ergonomics, tractor controls, steering wheel, pedals, dimensions.
