Overview

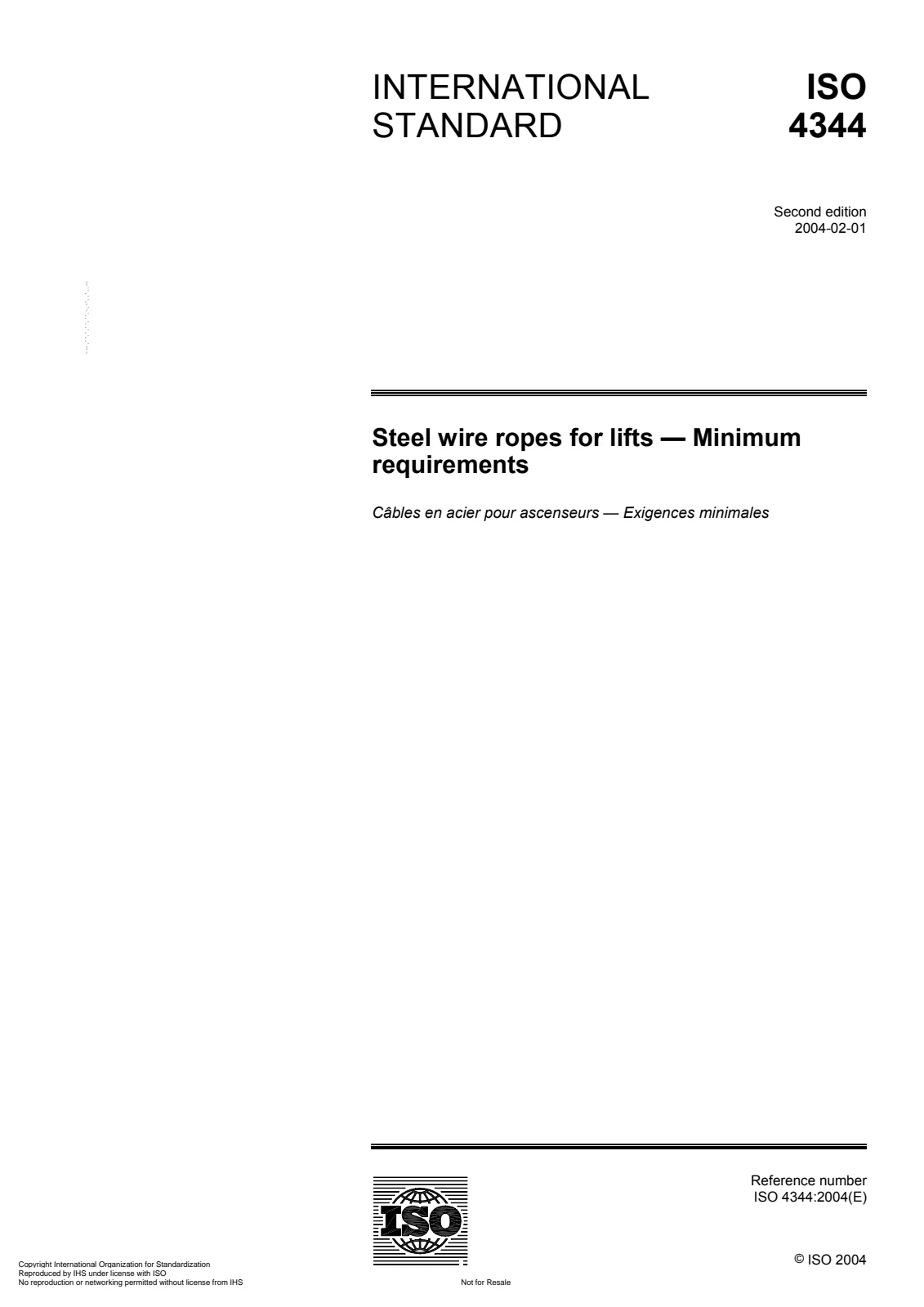

SIST ISO 4344:2012 is a comprehensive international standard that specifies the minimum requirements for the manufacture, testing, and classification of stranded carbon steel wire ropes designed for lifts and elevators. Developed under ISO 4344:2004, this standard applies specifically to ropes used for suspension in traction drive and roped hydraulic lifts, as well as for compensation and governor duties in passenger and freight lifts, dumbwaiters, personnel hoists, and man lifts operating between guides.
By establishing clear baseline criteria, SIST ISO 4344:2012 ensures the safety, reliability, and durability of steel wire ropes, reducing the risk of failure in critical lift applications. The standard does not cover ropes for builder’s hoists, temporary hoists not running between permanent guides, or cableways.
Key Topics
- Material Specifications: Details the wire grade, finish (bright or galvanized), and quality of materials used in rope construction.
- Design & Construction: Outlines acceptable constructions and classes of stranded carbon steel ropes (including core types such as fibre, steel, composite, or non-metallic).
- Minimum Breaking Forces: Specifies minimum requirements for rope strength based on diameter, grade, and construction, supporting consistent safety standards.
- Manufacturing & Testing: Establishes guidelines for rope production, including wire jointing, lay direction, preforming/postforming, lubrication, prestretching, and securing of rope ends.
- Verification & Certification: Provides procedures for diameter measurement, breaking force testing, and the issuance of conformity certificates.
- Dimensions & Tolerances: Defines nominal rope diameters, allowable tolerances, and measurement practices to ensure uniform quality.
- Marking & Traceability: Sets requirements for the labeling and documentation for each rope, enhancing traceability and end user safety.
Applications
SIST ISO 4344:2012 is essential in multiple vertical transport and industrial sectors, including:
- Passenger and Freight Lifts: Ensuring suspending ropes, compensating ropes, and governor ropes in elevators meet safety-critical performance standards.
- Hydraulic Lifts: Guaranteeing that ropes used in roped hydraulic systems maintain reliability over time.
- Dumbwaiters and Man Lifts: Standardizing minimum requirements across platforms transporting personnel or goods between levels.
- Personnel Hoists: Providing guidance for the safe operation of lifts moving between fixed guides on construction or industrial sites.
- Replacement and Maintenance: Facilitating the correct specification, selection, and certification of ropes during lift upgrades or repairs.
By following SIST ISO 4344:2012, manufacturers, contractors, and building owners can confidently source and maintain lift ropes that meet internationally recognized specifications for strength, durability, and operating safety.
Related Standards
To ensure comprehensive compliance and compatibility, SIST ISO 4344:2012 references and works alongside several key standards, including:
- ISO 2232: Specifications for round drawn wire for general purpose non-alloy steel wire ropes.
- ISO 3108: Methods for determining the actual breaking load of steel wire ropes.
- ISO 4101: Specifications for drawn steel wire for elevator ropes.
- ISO 4345: Specifications for fibre main cores in steel wire ropes.
- ISO 4346: Basic requirements for lubricants used in steel wire ropes.

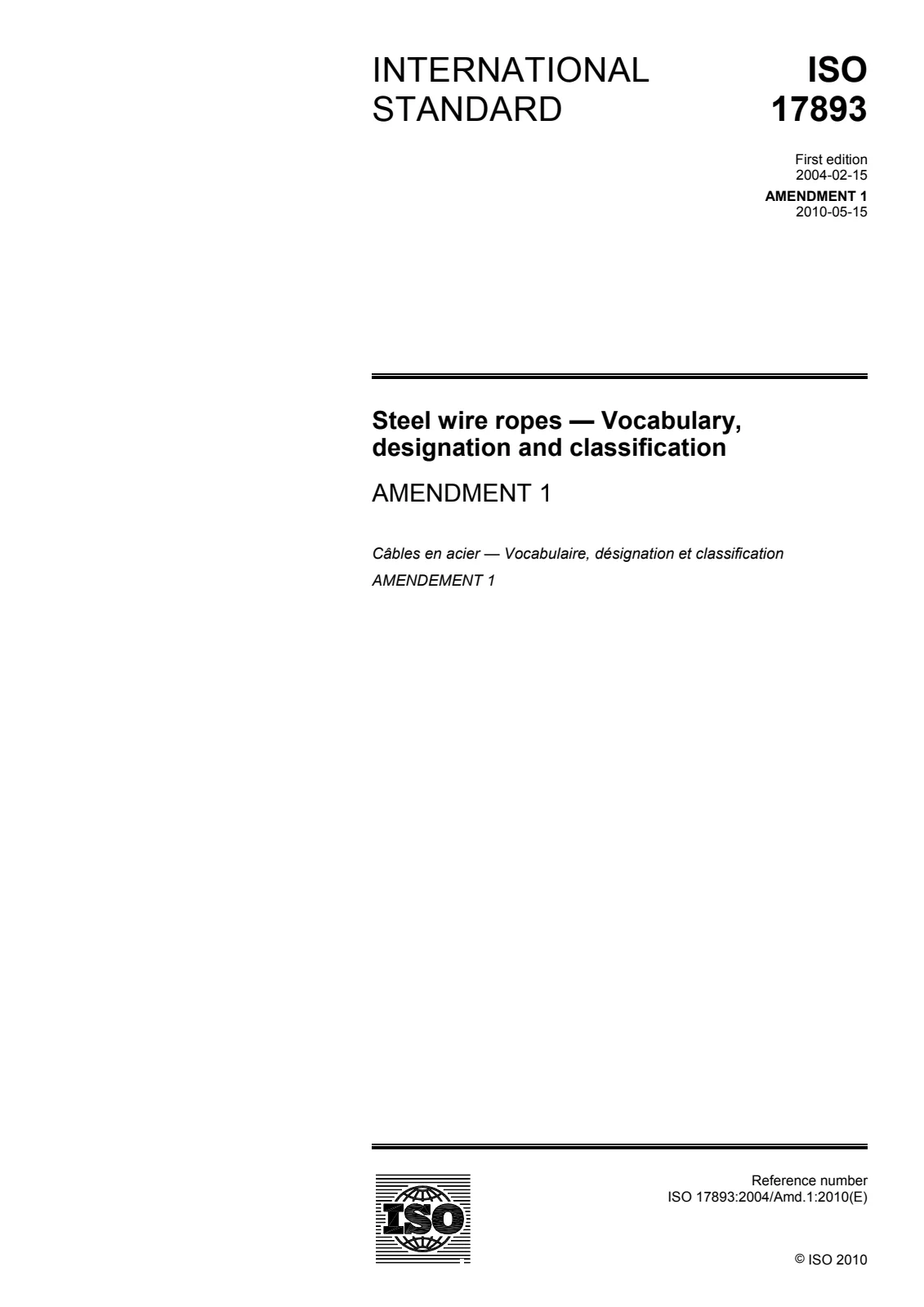

- ISO 17893: Terminology, designations, and classifications for steel wire ropes.
Adhering to these related ISO standards helps maintain a robust quality management system, ensures safety through harmonized testing procedures, and promotes global interoperability within the vertical transportation industry.
Keywords: steel wire ropes, lift ropes, elevator safety, ISO 4344, wire rope testing, traction drive lifts, governor rope, compensation rope, elevator standards
