ISO 4406:2021 - Hydraulic fluid power - Fluids - Method for coding the level of contamination by solid particles - defines a standardized contaminant coding system used to report the quantity and size distribution of solid particles in hydraulic fluids. The ISO 4406:2021 code converts particle counts into broad scale numbers so cleanliness can be communicated consistently across suppliers, manufacturers and service organizations.
Key topics and requirements
- Three-part code for automatic counting: For automatic particle counters (APCs) and particle contamination monitors (PCMs), the code uses three scale numbers representing particles per millilitre ≥ 4 µm(c), ≥ 6 µm(c) and ≥ 14 µm(c). Example: 22/18/13.
- Two-part code for microscope analysis: When using optical microscopy (ISO 4407), the reported sizes are ≥ 5 µm and ≥ 15 µm; the three-part form uses a leading “-” (e.g., -/18/13) to indicate microscope sizing.
- Scale allocation and interpretation: Scale numbers correspond to ranges of particle counts (steps roughly doubling between levels). Lower statistical confidence is flagged when raw counts are fewer than 20 particles (use the “≥” notation).

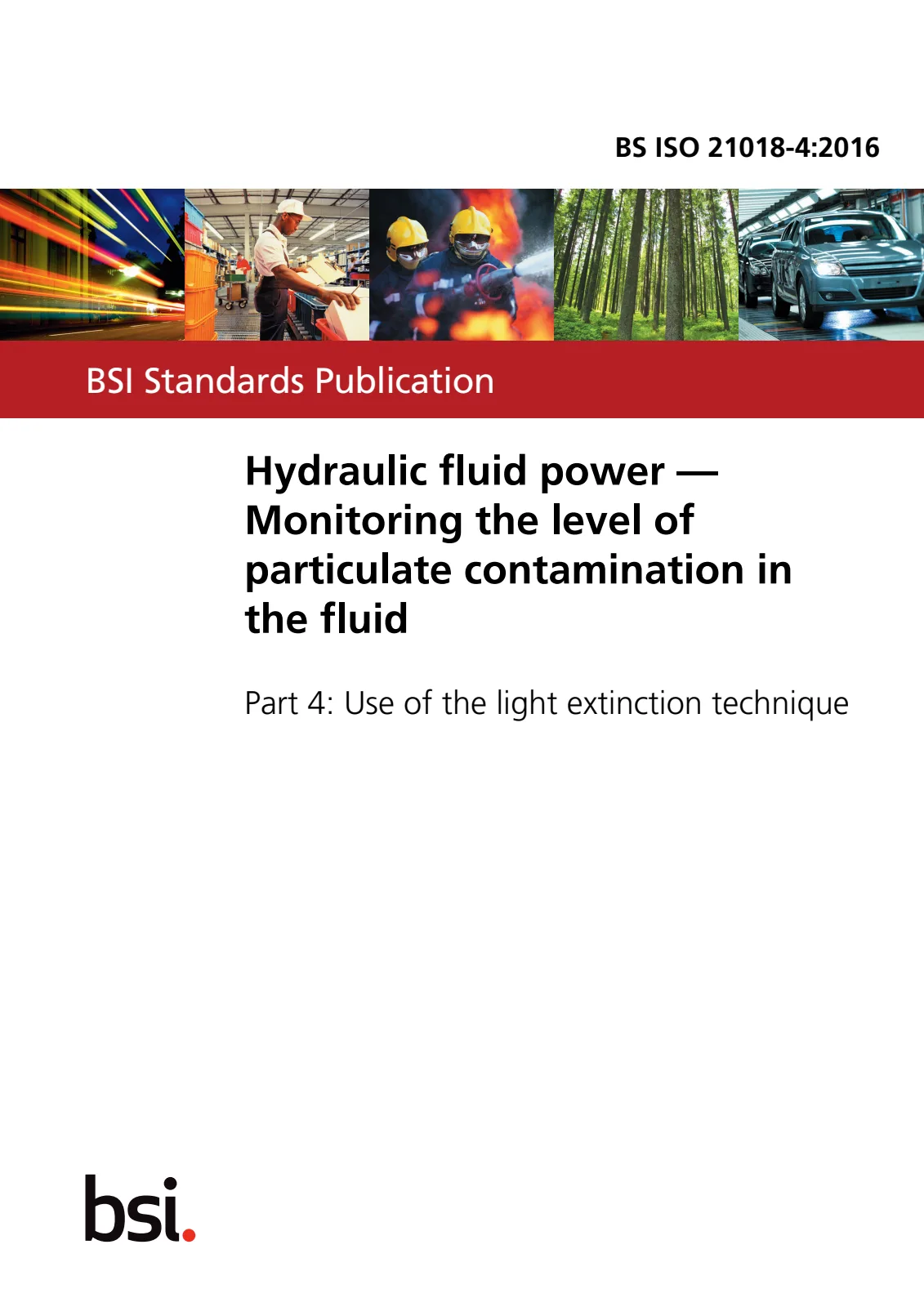

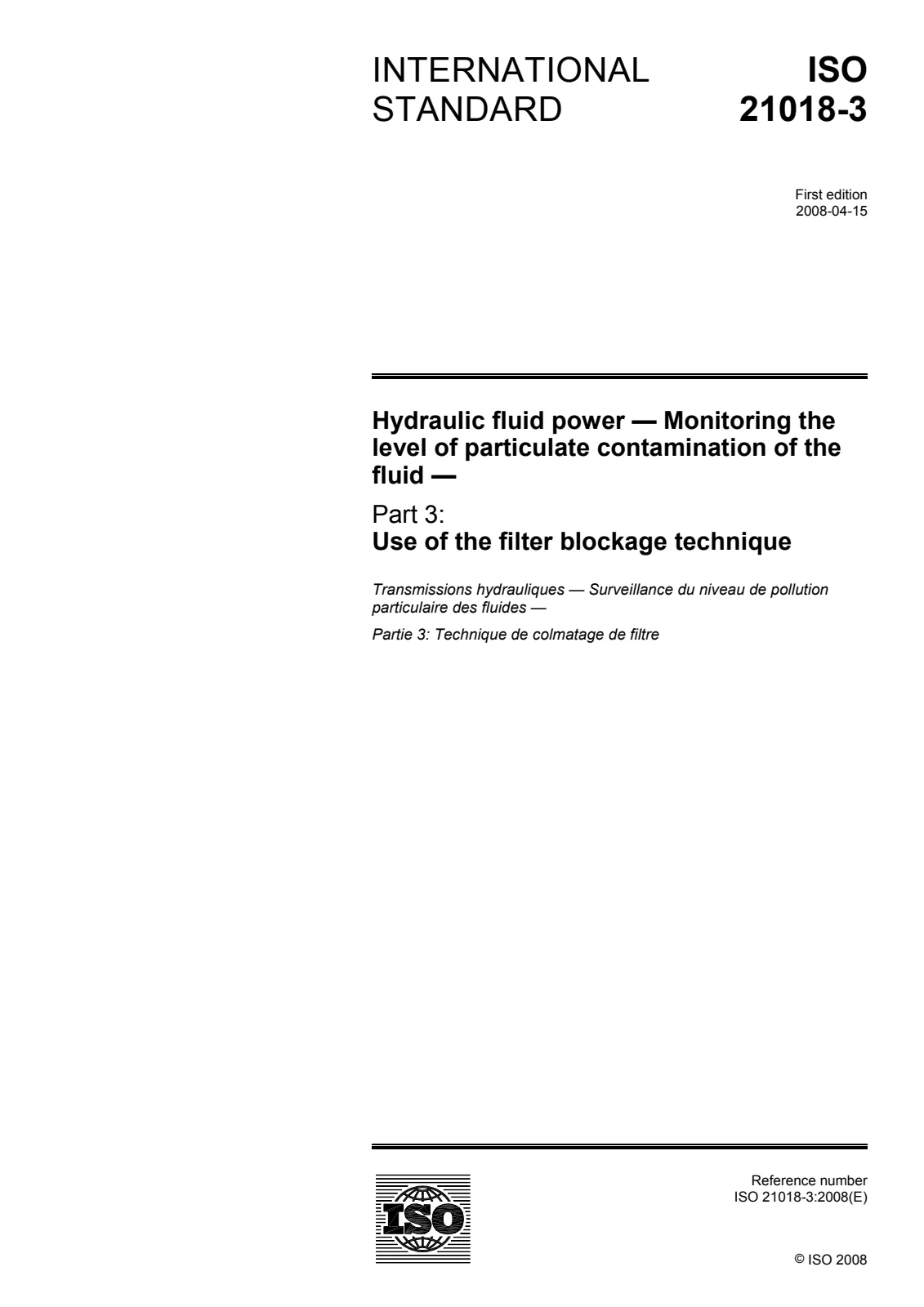

- Counting and calibration methods: APC/PCM counting must follow recognized methods (ISO 11500) and devices must be calibrated per ISO 11171 (APCs) or ISO 21018‑3/4 (PCMs). Microscope counts follow ISO 4407.
- Notation rules: Special symbols include “*” (too numerous to count), “-” (no requirement to count), and “≥” (low-count statistical caution). Codes are written with oblique slashes (e.g., 22/18/13).
Applications and practical value
- Standardizes reporting of hydraulic fluid cleanliness for:
- OEM warranty compliance and component acceptance
- Maintenance and condition monitoring programs
- Fluid procurement and quality assurance
- Laboratory test reports and technical specifications
- Helps reduce hydraulic system wear, downtime and failures by enabling objective contamination limits and trending of particle levels.
- Graphical presentation guidance (Annex A) supports visual trending and communication of contamination status.
- Hydraulic system designers and OEMs
- Maintenance and reliability engineers
- Fluid analysis laboratories and test houses
- Procurement and quality control personnel
- Field service technicians and asset managers
Related standards
ISO 4406:2021 is essential for anyone specifying, testing or managing hydraulic fluids and seeking consistent, internationally accepted reporting of particle contamination levels.
