Overview
SIST ISO 5612:1995 is an international standard developed by the International Organization for Standardization (ISO) specifically addressing scraper bars used in chain conveyors within the mining industry. This second edition supersedes the original 1984 publication, providing revised specifications for scraper bars designed to be compatible with twin outboard chain assemblies. The chains comply with ISO 610, and the scraper bars interface with shackle-type connectors defined in ISO 1082.
The standard details mechanical and dimensional requirements, testing procedures, and classification criteria for scraper bars. It aims to ensure interchangeability, performance, and safety in mining conveyor operations.
Key Topics
-
Scope and Compatibility
ISO 5612 outlines the requirements for scraper bars used on twin outboard chain conveyors with nominal chain diameters of 14, 18, 22, 24, and 26 mm. The scraper bars must be dimensionally compatible with chains per ISO 610 and shackle connectors per ISO 1082.
-
Design Dimensions
The standard specifies detailed dimensional tables and illustrations for two common scraper bar shapes: T-shaped and I-shaped. Key measurements include length, height, thickness, hole diameters, and lateral clearances, all tailored for consistent fit with chain assemblies.
-
Mechanical Strength and Classification
Scraper bars are classified into three resistance classes based on their load-bearing capacity in bending tests:
- Light duty
- Medium duty
- Heavy duty
These classes correspond to minimum bending forces applied to achieve a specified deflection without visible fracture, ensuring selection of appropriate scraper bars for varying operational demands.
-
Materials and Heat Treatment
While the standard does not prescribe specific materials, it mandates that manufacturers select steels and apply heat treatments that achieve the necessary mechanical properties aligned with test requirements.
-
Testing and Quality Control
ISO 5612 prescribes rigorous sampling, dimensional verification, and bend testing protocols using machines conforming to ISO 7500-1 standards. Acceptance of production lots depends on all samples passing these structural and dimensional tests. Marking and certification procedures are also detailed to maintain traceability and buyer confidence.
Applications
ISO 5612 scraper bars are critical components in mining chain conveyors, utilized to scrape material along a conveyor path for efficient bulk material transport. These scraper bars:
- Are used in heavy-duty mining environments requiring robust and wear-resistant conveyor parts.
- Ensure compatibility and interchangeability within conveyor assembly lines designed to ISO chain and connector standards.
- Support operational reliability by minimizing downtime due to component failure.
- Allow operators and engineers to select scraper bars with proper strength ratings tailored to load conditions.
Implementation of ISO 5612 standards enhances conveyor system safety, durability, and efficiency in mining operations and other industrial bulk material handling sectors.
Related Standards

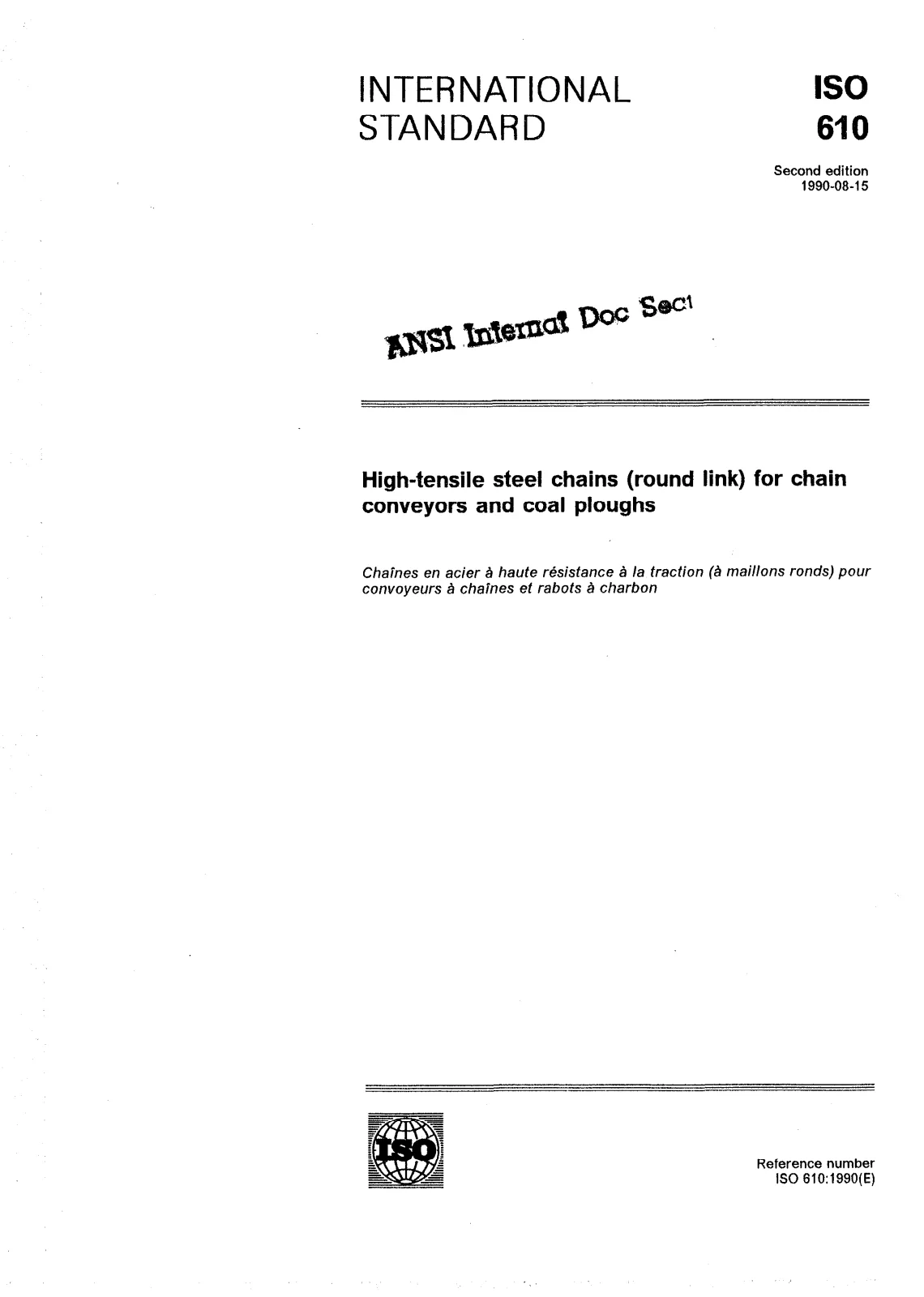

- ISO 610:1990 – Steel chains with high tensile strength for chain conveyors and scraper assemblies. Provides chain design and performance criteria critical for ensuring compatibility with scraper bars.

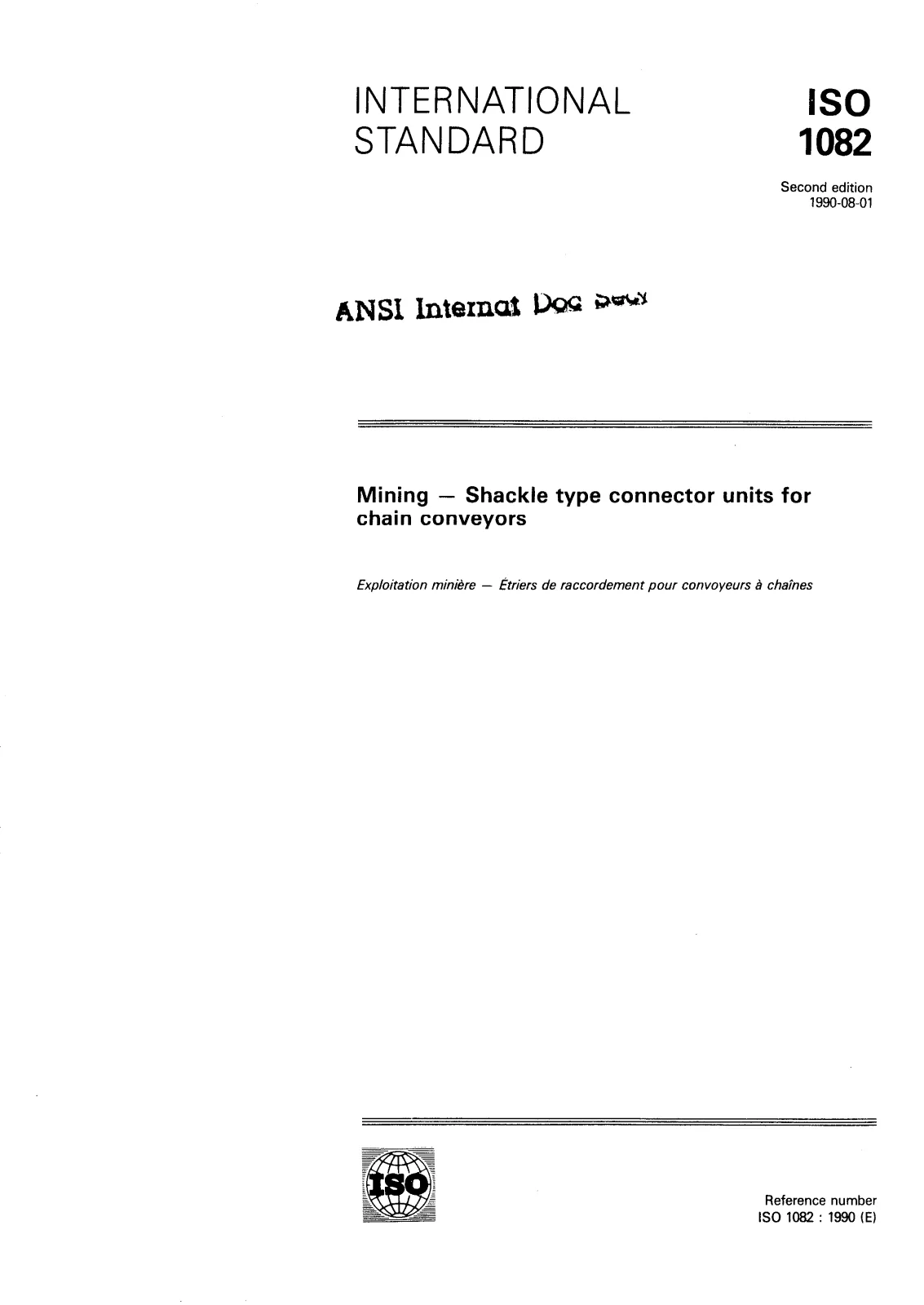

- ISO 1082:1990 – Mining - Shackle type connectors for chain conveyors. Defines connector dimensions and materials that interface directly with scraper bars.
- ISO 7500-1:1986 – Metallic materials - Verification of static uniaxial testing machines. Specifies precision levels for testing equipment used in scraper bar bending tests, ensuring consistent and reliable mechanical evaluations.
Implementing ISO 5612 together with these related standards ensures a harmonized and reliable chain conveyor assembly that meets international mining industry requirements.
