Overview
IEC 60455-3-5:2006 is an international standard developed by the International Electrotechnical Commission (IEC) that provides requirements for unsaturated polyester based impregnating resins used as electrical insulation. This standard is part of a multi-part series addressing resin based reactive compounds for electrical applications. Specifically, Sheet 5 focuses on establishing specifications and test methods relevant for the assessment, quality, and performance of unsaturated polyester impregnating resins, especially regarding their behavior at elevated temperatures and their emissions during curing.
The use of unsaturated polyester resins is critical in ensuring effective electrical insulation, which is vital for the safety and reliability of electrical equipment. IEC 60455-3-5:2006 helps manufacturers, suppliers, and users ensure that these materials meet internationally recognized quality benchmarks and performance expectations.
Key Topics
- Material Identification: The standard defines how unsaturated polyester based impregnating resins should be identified and designated, including performance levels at specified temperatures (130°C, 155°C, 180°C, 200°C).
- Performance Requirements: It covers essential requirements such as flash point, density, viscosity, temperature index, and resistance to environmental factors.
- Low Emission Polyester Resins: Special focus is given to unsaturated polyester resins with low emissions of volatile organic components (VOCs), restricting VOC releases to less than 3% during curing.
- Testing Methods: All testing must conform to IEC 60455-2 and related standards, ensuring consistency in density, viscosity, curing, and other critical parameters.
- Property Agreements: The standard provides guidance for suppliers and purchasers to agree on additional properties (such as thermal conductivity, breakdown voltage, or dielectric strength) as needed for specific applications.
- Periodic Conformance: Tests for temperature index and other periodic reliability checks are prescribed, supporting long-term performance monitoring.
Applications
IEC 60455-3-5:2006 is applicable across industries that utilize resin-based electrical insulation materials, including electrical machinery, transformers, and winding wires. Key practical applications include:
- Electrical Insulation for Windings: The standard ensures that impregnating resins provide adequate insulation, mechanical strength, and thermal endurance for coils and wires in motors, transformers, and generators.
- Enhanced Equipment Longevity: Compliance with this standard helps achieve superior resistance to heat, moisture, and chemicals, contributing to longer equipment service life.
- Environmental and Safety Compliance: By limiting VOC emissions, the standard promotes environmentally safe and healthier working conditions, and supports regulatory compliance.
- Consistency in Manufacturing: Clear requirements and internationally accepted test methods help manufacturers produce resin compounds that meet uniform global expectations, reducing the risk of equipment failure due to insulation degradation.
Related Standards
Several other IEC standards are referenced for complementary information and testing:
- IEC 60455-1: Definitions and general requirements for resin based reactive compounds used for electrical insulation.
- IEC 60455-2: Test methods for resin based reactive compounds used for electrical insulation.

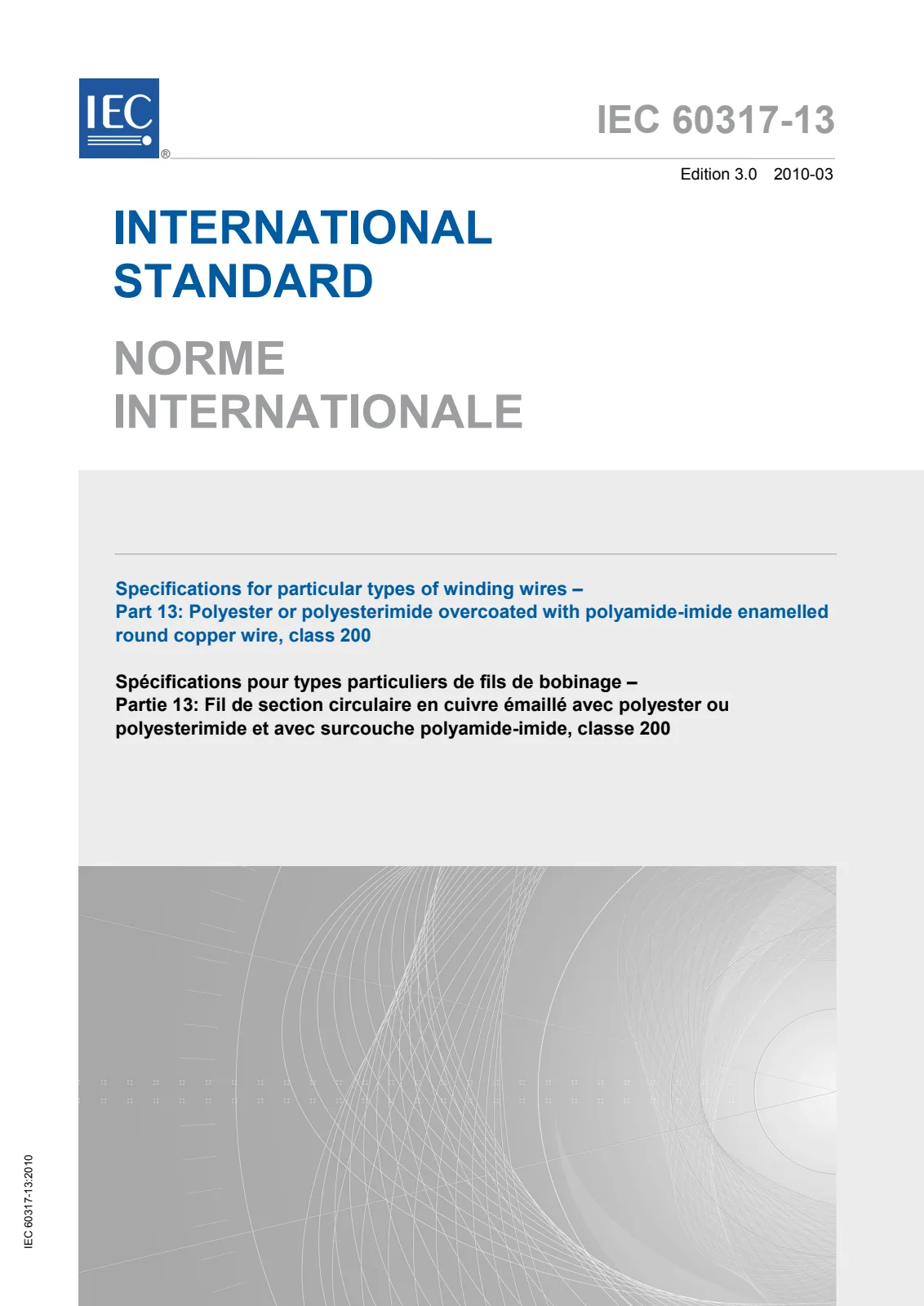

- IEC 60317-8 and IEC 60317-13: Specifications for particular types of winding wires.
- IEC 60172: Test procedure for determination of the temperature index of enamelled winding wires.
- IEC 60464-2: Methods of test for varnishes used in electrical insulation.

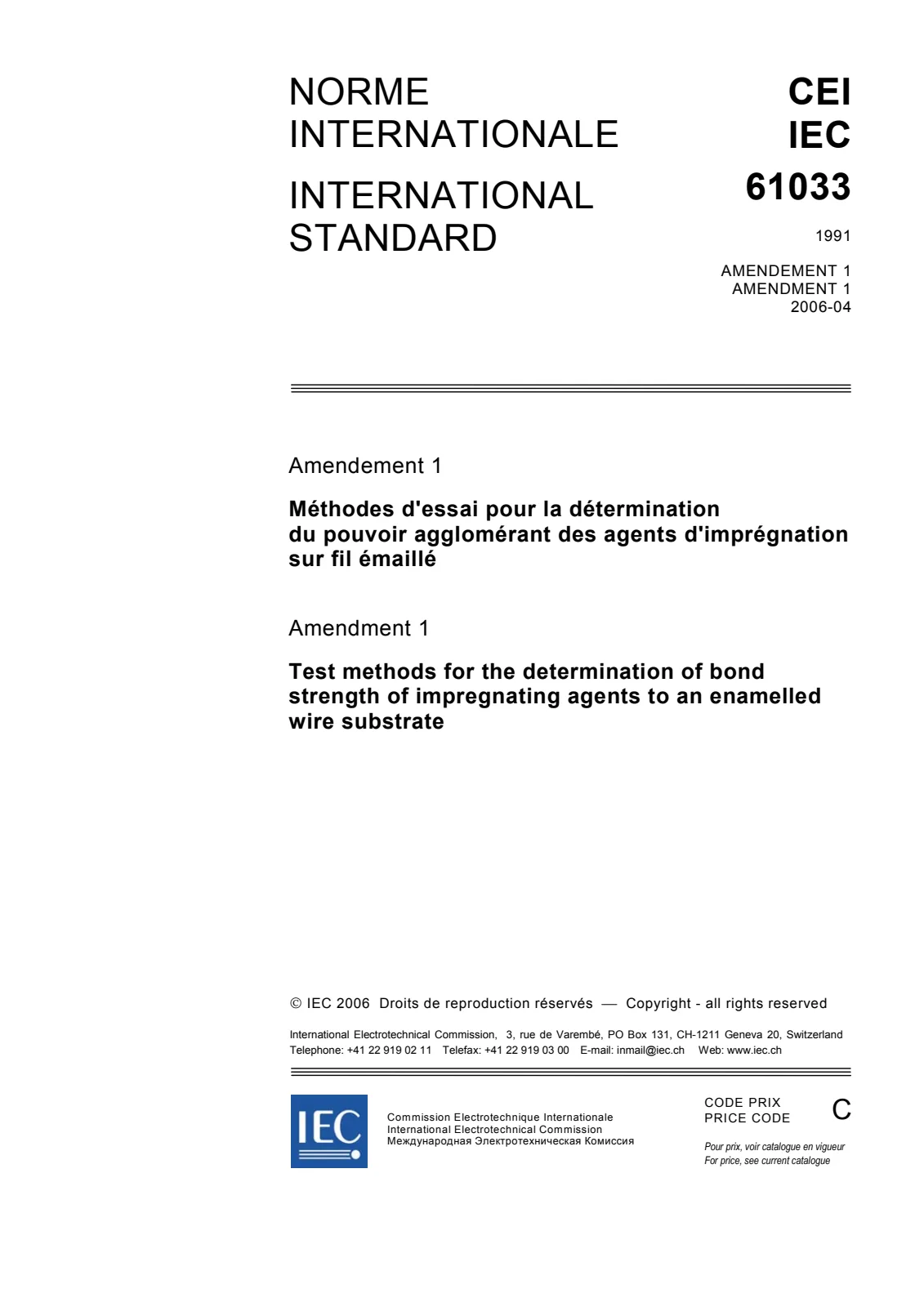

- IEC 61033: Test methods for assessing the bond strength of impregnating agents on enamelled wires.
Summary
IEC 60455-3-5:2006 provides a benchmark for the quality, performance, and environmental impact of unsaturated polyester based impregnating resins used in electrical insulation. Leveraging this standard ensures improved reliability, safety, and environmental stewardship in the production and application of electrical insulating materials. For manufacturers, suppliers, and users in the electrical industry, adherence to IEC 60455-3-5:2006 is critical for global market acceptance and operational safety.
