Overview
IEC 60749-44:2016 is an international standard issued by the International Electrotechnical Commission (IEC) that specifies test methods for evaluating the effects of neutron radiation on semiconductor devices. This standard is part 44 of the IEC 60749 series, which focuses on mechanical and climatic test methods for semiconductor devices. Specifically, IEC 60749-44 defines a neutron beam irradiated single event effect (SEE) test method intended to assess the sensitivity of high-density integrated circuit semiconductor devices-including memory components prone to data retention issues-to atmospheric neutron radiation generated by cosmic rays.
The test method measures single event effects (SEEs) by irradiating a device under test using a neutron beam of known flux and analyzing the induced soft errors or logic state changes. It is applicable to various types of integrated circuits and is essential for understanding device vulnerability to neutrons, which can cause transient faults or permanent damage during normal operation.
Key Topics
-
Single Event Effects (SEEs): Transient phenomena induced in semiconductor devices due to interactions with atmospheric neutrons. Includes single-event upsets (SEUs), multiple bit upsets (MBUs), and other soft errors affecting data integrity.
-
Neutron Beam Irradiation: Controlled exposure of devices to a neutron flux that simulates cosmic ray neutrons encountered at ground level or at altitude. The test method outlines procedures for beam characterization, flux measurement, and device irradiation.
-
Measurement Procedure: The standard details important parameters such as surface preparation, power supply voltage, core cycle time, data patterns, ambient temperature control, number of measurement samples, and time calculation for neutron beam exposure.
-
Evaluation and Failure Rate: The method includes guidelines for estimating failure rates, determining cross sections for SEU and MBU, and calculating device failure in terms of FIT (Failures In Time) based on measured cross sections.
-
Device Scope: Applicable to all integrated circuit semiconductor devices, with exclusions noted for devices under high voltage stress prone to single event burnout or gate rupture-referenced to IEC 62396-4 for those cases.
Applications
-
Reliability Testing: Semiconductor manufacturers and quality control engineers use IEC 60749-44 procedures to evaluate and validate the robustness of ICs against neutron-induced SEEs before product release.
-
Design Verification: IC designers utilize SEE test results to improve radiation hardness in semiconductor devices, ensuring reliability for aerospace, automotive, and ground-level applications sensitive to soft errors.
-
Safety-Critical Electronics: Systems operating in avionics, space applications, telecommunications, and nuclear environments benefit from testing semiconductor components per IEC 60749-44 to avoid unexpected failures caused by neutrons.
-
Soft Error Rate (SER) Analysis: The standard supports predictive modeling of SER in integrated circuits by providing measured cross sections under neutron beam irradiation, enabling more accurate reliability assessments.
Related Standards
-

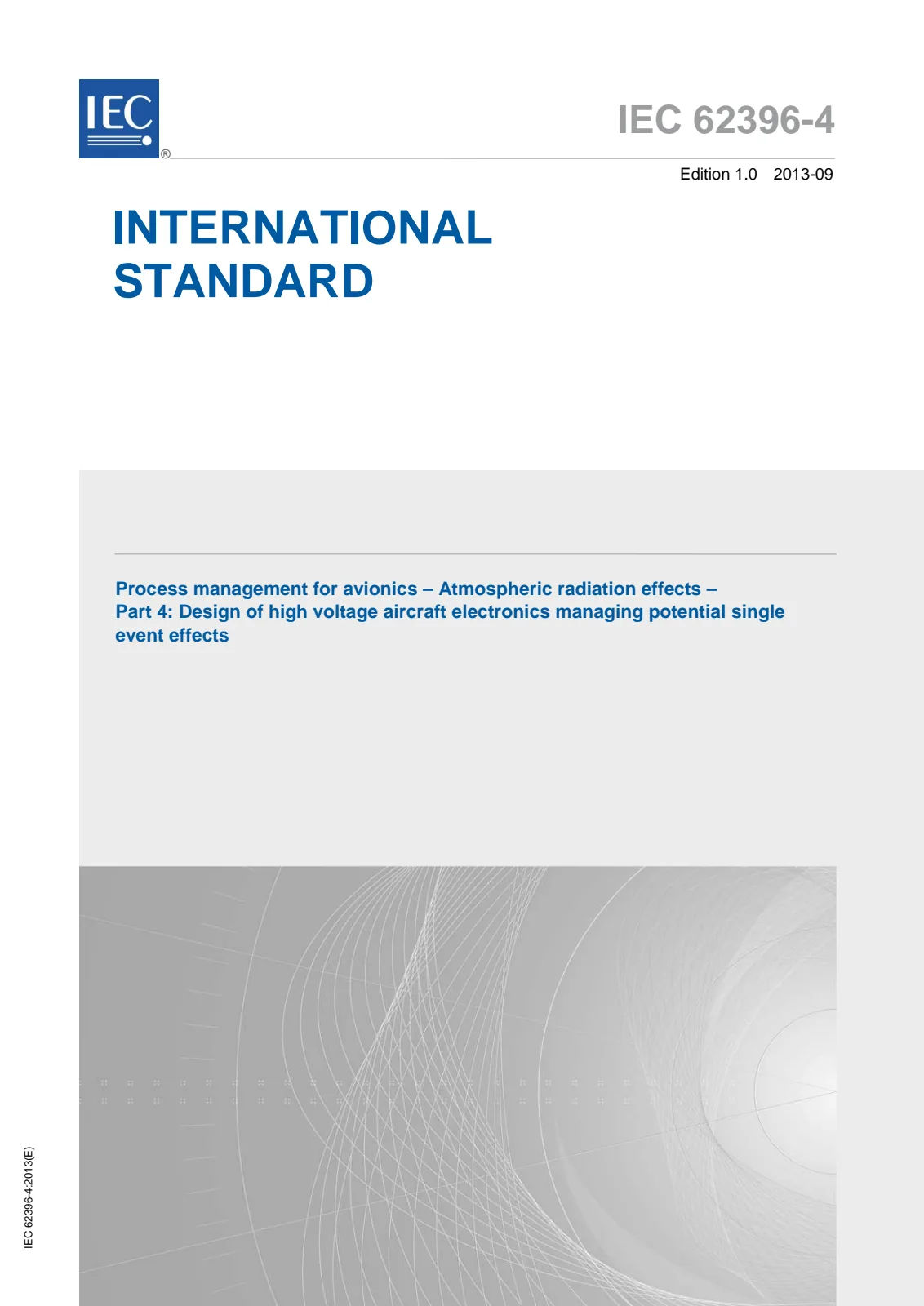

IEC 62396-4: Covers single event effects testing on devices under high voltage stress, including single event burnout (SEB) and single event gate rupture (SEGR), which are not within IEC 60749-44’s scope.
-

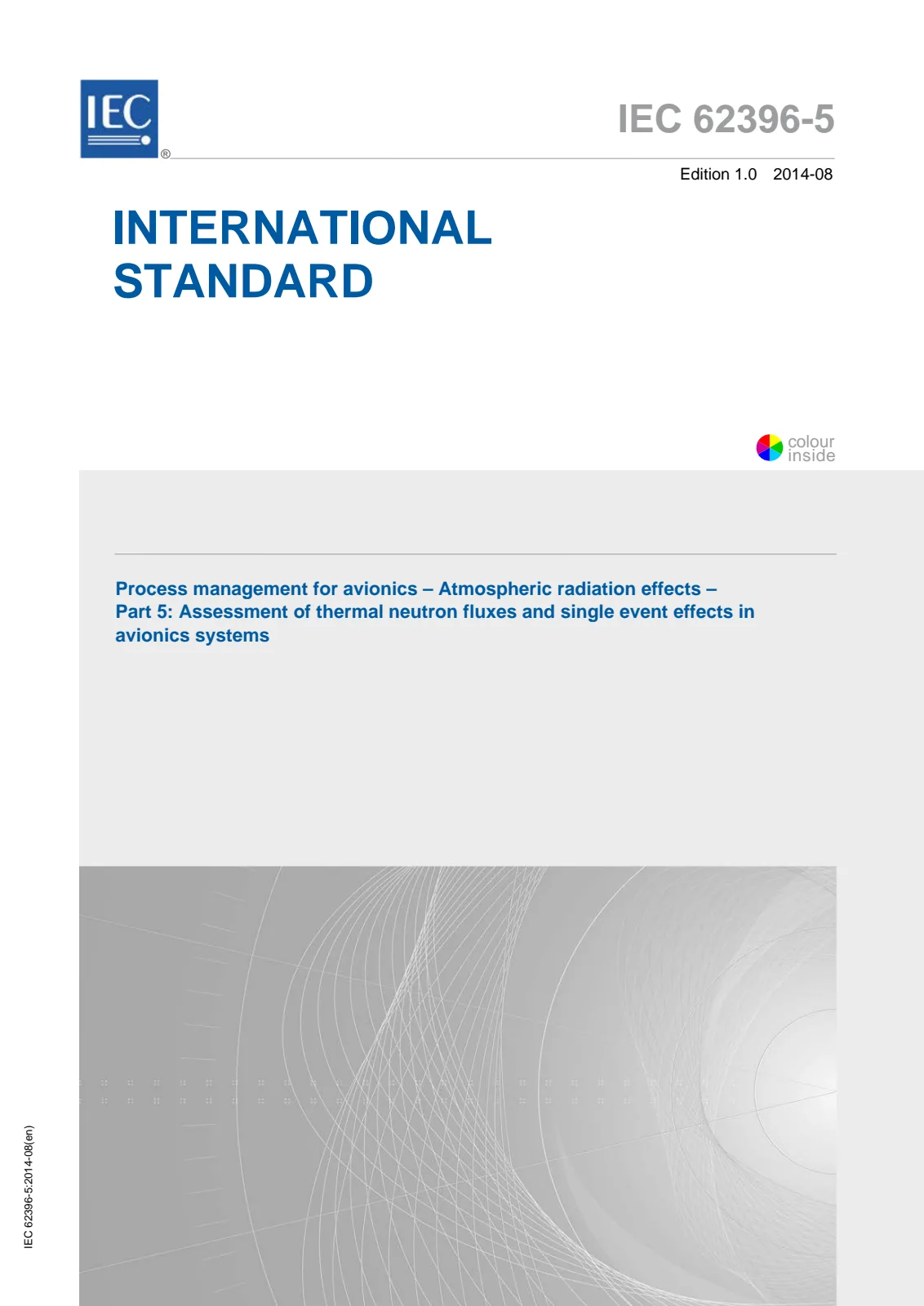

IEC 62396-5: Addresses the effects of low energy (thermal) neutrons (
