Overview

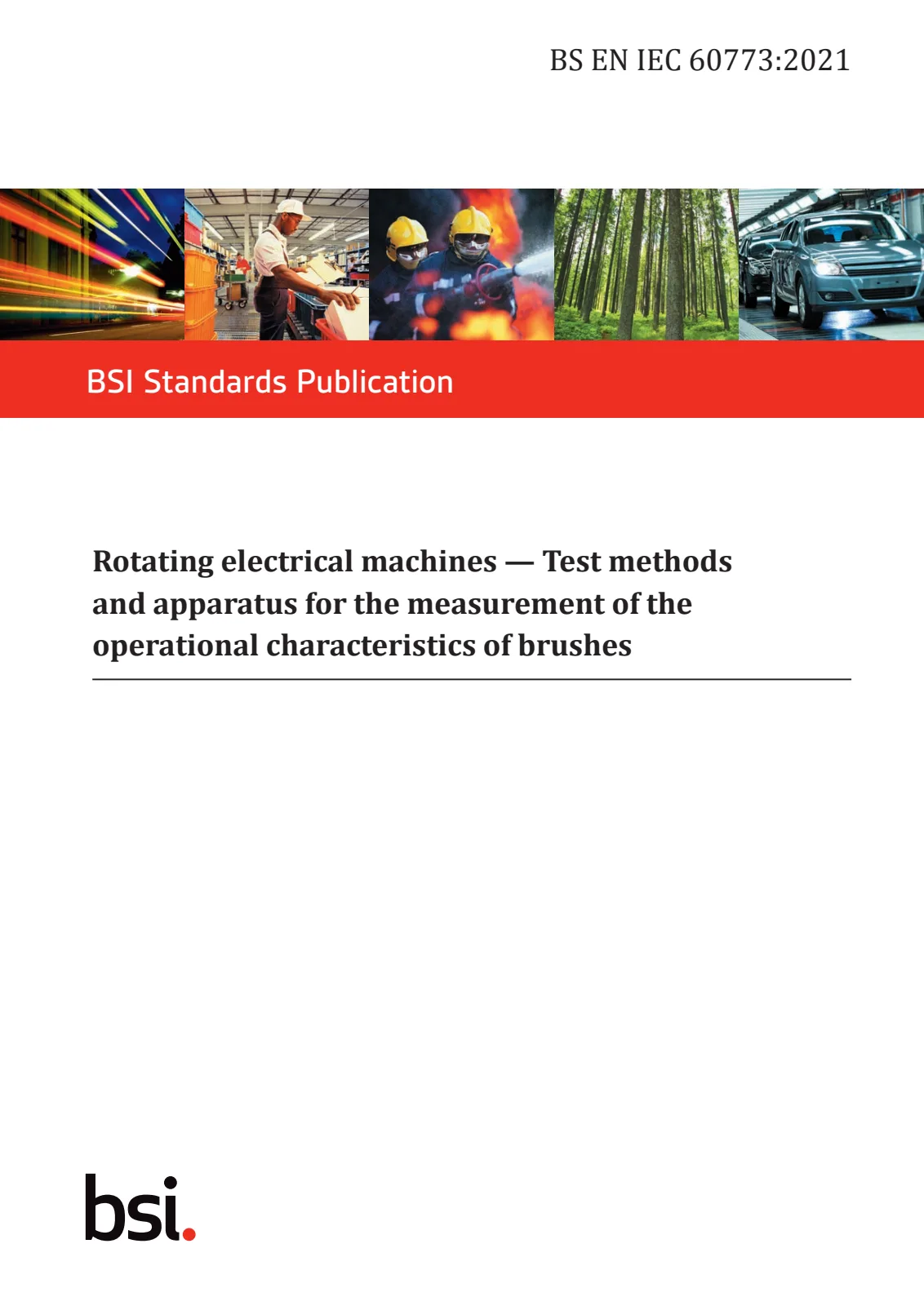

IEC 60773:2021 specifies standardized test methods and apparatus for the measurement of the operational characteristics of brushes in rotating electrical machines. Brushes are critical components in commutating and slip ring machines, such as DC motors and generators, as well as many types of industrial equipment. This standard ensures consistent and reliable evaluation of brush performance under defined laboratory test conditions, enabling improved product quality, efficiency, and international compatibility.
The 2021 second edition of IEC 60773 includes several updates, notably the restructuring based on laboratory testing procedures and the introduction of the black-band test for characterizing brush grades for DC machines. The standard also extends to certain tests applicable to other sliding electrical contacts used in electrical appliances.
Key Topics
IEC 60773:2021 addresses the following primary areas:
- Test Rig Specification: Details on laboratory set-ups for testing brushes, including requirements for rings, brush holders, power supply, and instrumentation.
- Testing Procedures: General guidelines for test scheduling, environmental and operating conditions, and preparation of apparatus and materials.
- Operational Characteristic Testing:
- Friction Coefficient Measurement: Standard approaches to determine the friction characteristics between the brush and ring or commutator.
- Voltage Drop Measurement: Methods for assessing voltage losses across brushes during operation, which impact performance and efficiency.
- Brush Wear Assessment: Procedures for quantifying linear wear and wear rates, critical for maintenance planning and cost optimization.
- Black-Band Test for DC Machines: A newly standardized laboratory method for characterizing brush material performance, helping select suitable brush grades.
- Reporting and Documentation: Standard formats for test reports to ensure results are clear, comparable, and reproducible.
Applications
Adherence to IEC 60773:2021 brings practical benefits across industries where rotating electrical machines are utilized. Common applications include:
- Electric Motors and Generators: Ensuring reliable operation, longevity, and safety for industrial drives, transportation systems, and power generation.
- Quality Assurance & Procurement: Manufacturers and buyers leverage these test methods to verify compliance with performance specifications and to ensure brush compatibility with various machine types.
- Maintenance and Troubleshooting: By standardizing brush testing, maintenance teams can more easily diagnose wear, friction, or voltage drop issues that impact machine performance.
- Research & Development: Laboratories and engineers developing new brush materials or machine designs use the standard to compare operational characteristics systematically.
- Other Electrical Appliances: Some tests apply to sliding contacts in appliances like vacuum cleaners, power tools, and medical devices, supporting broader equipment reliability.
Related Standards
IEC 60773:2021 is part of a network of international standards for rotating electrical machines and associated components. Closely related standards include:
- IEC 60034-19: Test methods for DC machines.

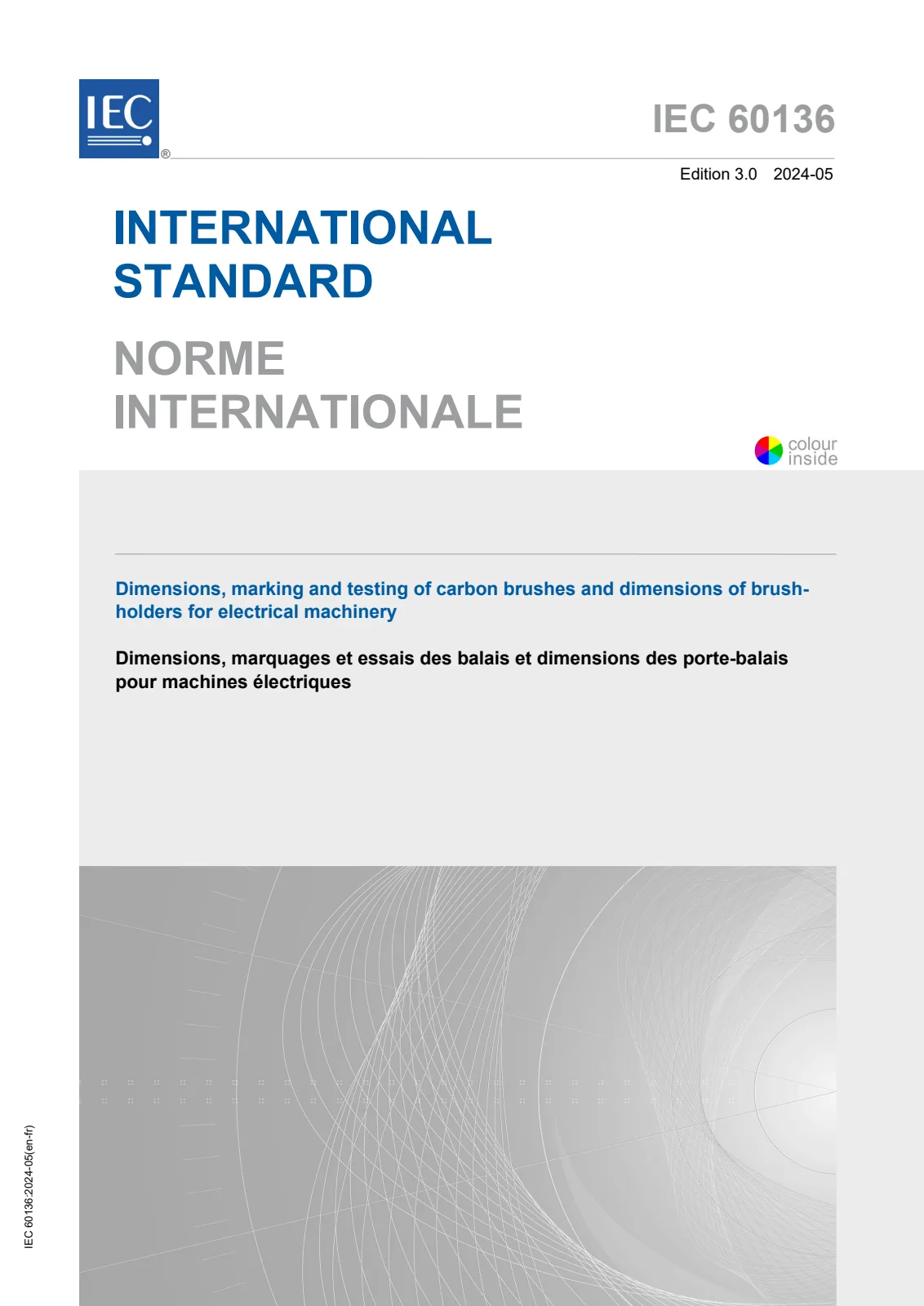

- IEC 60136: Dimensions of brushes and brush-holders for electrical machinery.

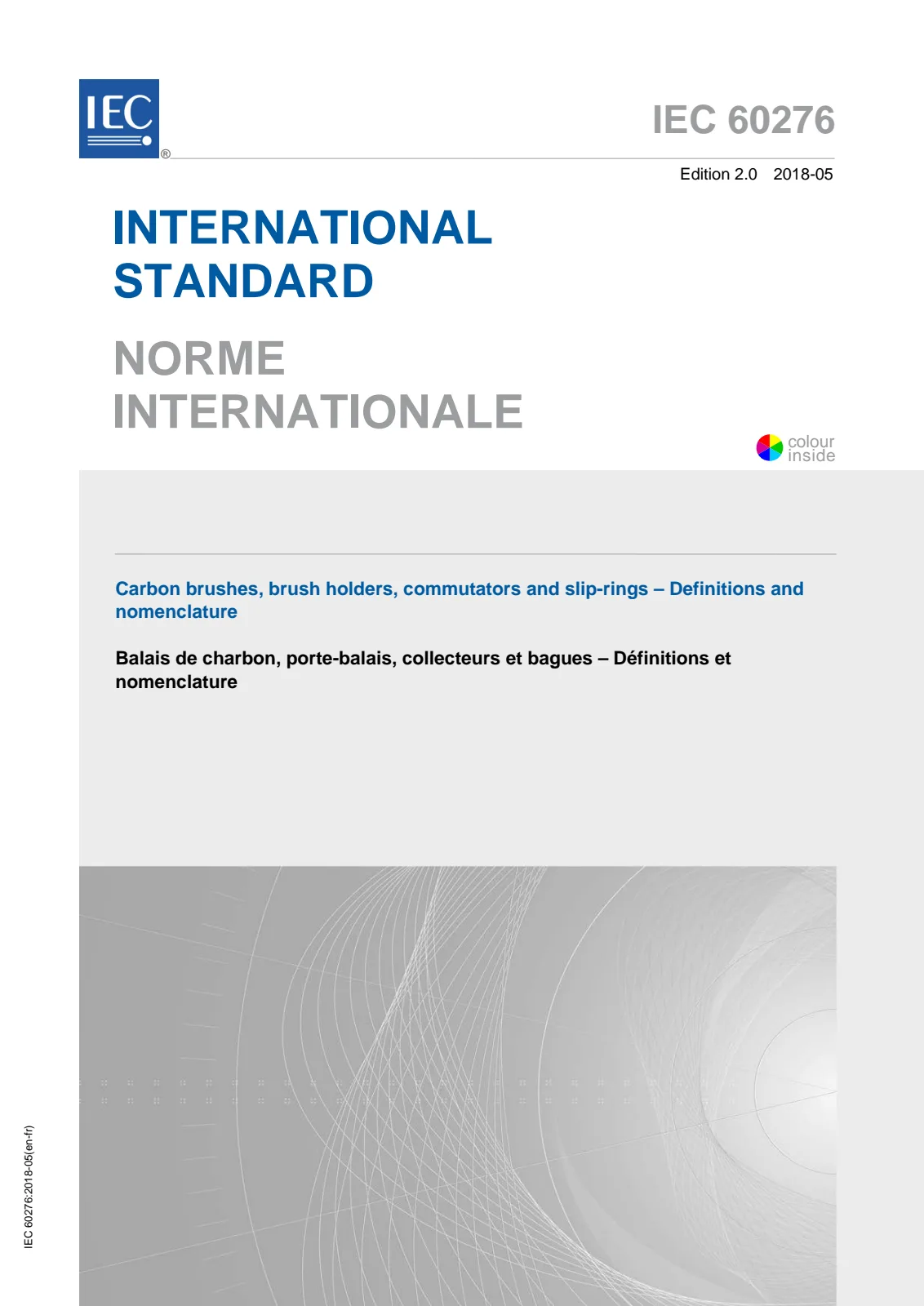

- IEC 60276: Definitions and nomenclature for carbon brushes, brush holders, commutators, and slip-rings.
- IEC 60356: Dimensions for commutators and slip-rings.
- IEC 60584-1: EMF specifications and tolerances for thermocouples, relevant for temperature measurement during tests.
- IEC 60751: Platinum resistance thermometers and temperature sensors standards.
- ISO 3274 & ISO 15510: Standardized methods for surface texture and material specifications often referenced for test rig and brush material characterizations.
Using IEC 60773:2021 in combination with these standards promotes harmonized testing approaches, product safety, and technical interoperability across the global electrical machinery industry.
