ISO 128-33:2018 PDF
Technical product documentation (TPD) — General principles of presentation — Part 33: Representation of views, sections and cuts in construction drawings

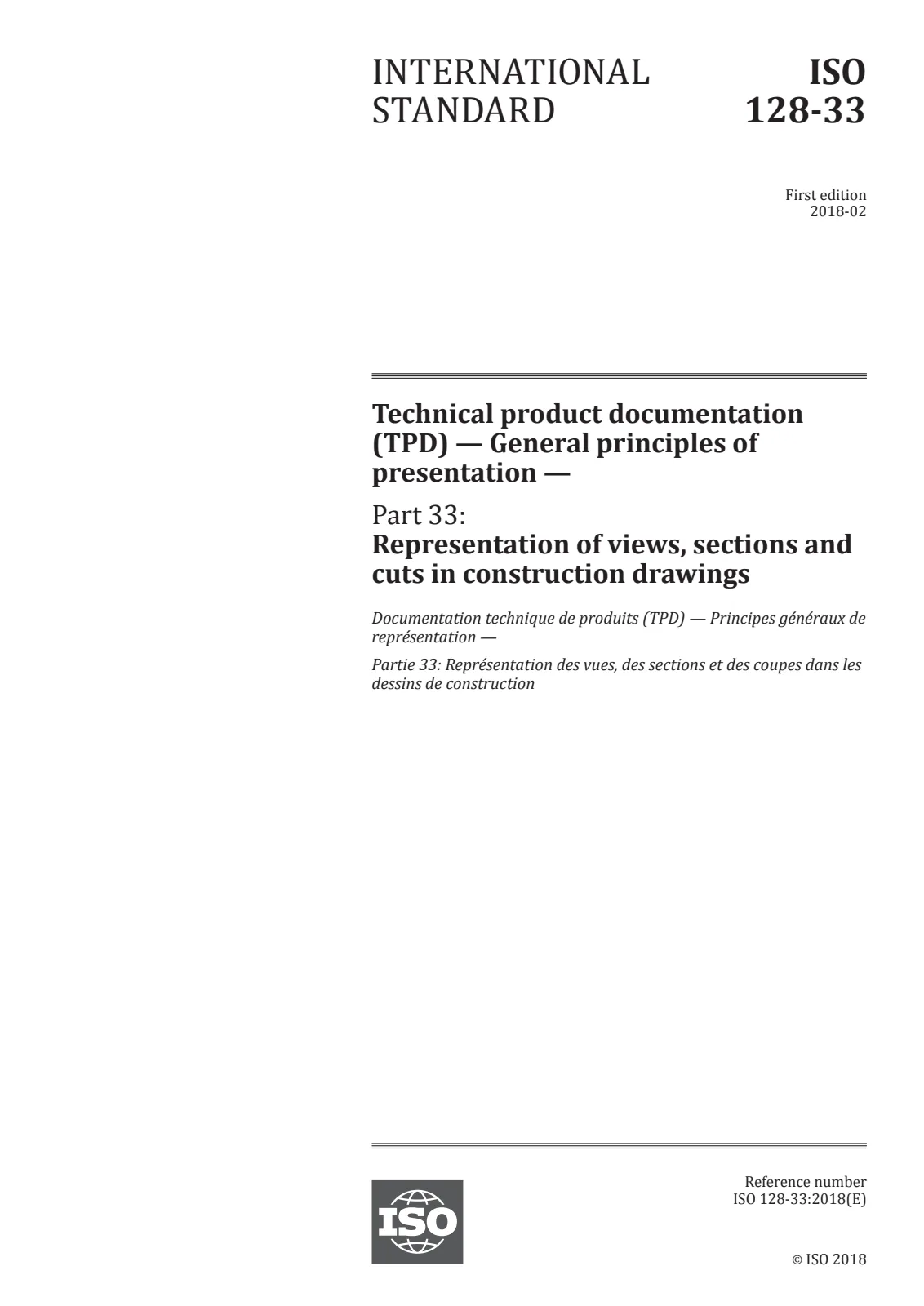

Open preview (PDF)Technical product documentation (TPD) — General principles of presentation — Part 33: Representation of views, sections and cuts in construction drawingsTitle (English):
ISO 128-33:2018
Technical product documentation (TPD) — General principles of presentation — Part 33: Representation of views, sections and cuts in construction drawings
- Document status:
- Withdrawn
- Format:
- Electronic (PDF)
- Number of pages:
- 8
- Publication date:
- March 14, 2018
- Edition:
- ISO IS 128 edition 1 version 1
- ICS:
- 01.100.30
Description (English):
ISO 128-33:2018 lays down general rules for marking, designation, placing and orientation of views, sections and cuts, and the position of text in relation to figures on construction drawings. For all general rules, reference is made to the relevant parts of the ISO 128 series. As regards relative positions of views, the method using reference arrows according to ISO 128‑30 is used.
Technical details
- Technical committee
- ISO/TC 10/SC 8 - Construction documentation
- SKU
- ISO 128-33:2018
