Overview
ISO 13503-2:2006/Amd 1:2009 is an essential international standard for the petroleum and natural gas industries, specifically addressing completion fluids and materials. This amendment adds Annex B, which sets forth detailed specifications for proppants used in hydraulic fracturing and gravel-packing operations. Proppants are critical in maintaining fractures and supporting gravel packs within wellbores, thus ensuring efficient resource extraction.
The amendment focuses on consistent methodologies and standardized testing for proppant properties, enhancing quality control and operational reliability. It helps manufacturers and service providers comply with industry-accepted benchmarks and supports better decision-making in hydraulic fracturing projects.
Key Topics
-
Proppant Size and Distribution
Annex B specifies size grading requirements to ensure at least 90% of hydraulic fracturing proppants pass the coarse sieve and are retained on the fine sieve, with similar but more stringent requirements (96%) for gravel packing proppants. These standardized sieve sizes (e.g., 20/40, 40/60) help ensure uniformity in proppant particle size distribution critical for optimized downhole performance.
-
Sphericity and Roundness
The amendment defines minimum sphericity and roundness values for various proppants:
- Ceramic and resin-coated ceramic proppants: ≥ 0.7
- Other proppants: ≥ 0.6
These parameters influence proppant flow characteristics and conductivity within fractures.
-
Acid Solubility Limits
The maximum allowable acid-soluble content in proppants is defined to ensure long-term stability in acidizing conditions common in well stimulation.
-
Turbidity
The standard limits the maximum turbidity of proppants to 250 FTU (Nephelometric Turbidity Units), ensuring low fines content that can block fractures or gravel packs.
-
Crush Resistance
The amendment specifies maximum fines generation under stress for gravel packing proppants and introduces a 10% crush classification system for fracturing proppants. This allows operators to assess proppant durability under expected closure stresses, which is critical for maintaining conductivity.
Applications
ISO 13503-2:2006/Amd 1:2009 finds practical application in:
-
Hydraulic Fracturing Operations
To select proppants with verified size, shape, and mechanical properties that withstand downhole stress environments, maximizing fracture conductivity and hydrocarbon flow.
-
Gravel Packing Processes
To ensure gravel packs are composed of materials with appropriate particle size, durability, and chemical resistance, thereby reducing formation damage and sand production risks.
-
Quality Control in Proppant Manufacturing
Enables manufacturers to test and certify proppant batches against internationally recognized criteria, enhancing product consistency.
-
Procurement Specifications
Oil and gas operators can develop procurement standards referencing ISO 13503-2:2006/Amd 1:2009, improving supply chain transparency and proppant performance predictability.
Related Standards
- ISO 13503-1:2006 - Measurement of properties of proppants - Part 1: Static properties
- ASTM E11-04 - Standard specification for wire cloth and sieves used for testing, referenced within ISO 13503-2 for particle size classification
- API RP 56 - Recommended Practices for proppant testing in oilfield applications
- ISO/TC 67 Technical Committee - Develops standards related to materials and equipment in petroleum and natural gas industries
By adhering to ISO 13503-2:2006/Amd 1:2009, petroleum companies and service providers ensure the use of high-quality, durable proppants optimized for hydraulic fracturing and gravel-packing operations, thereby enhancing well productivity and operational safety. The amendment facilitates standardized proppant testing, improving industry-wide communication and reliability in completion fluids and materials.

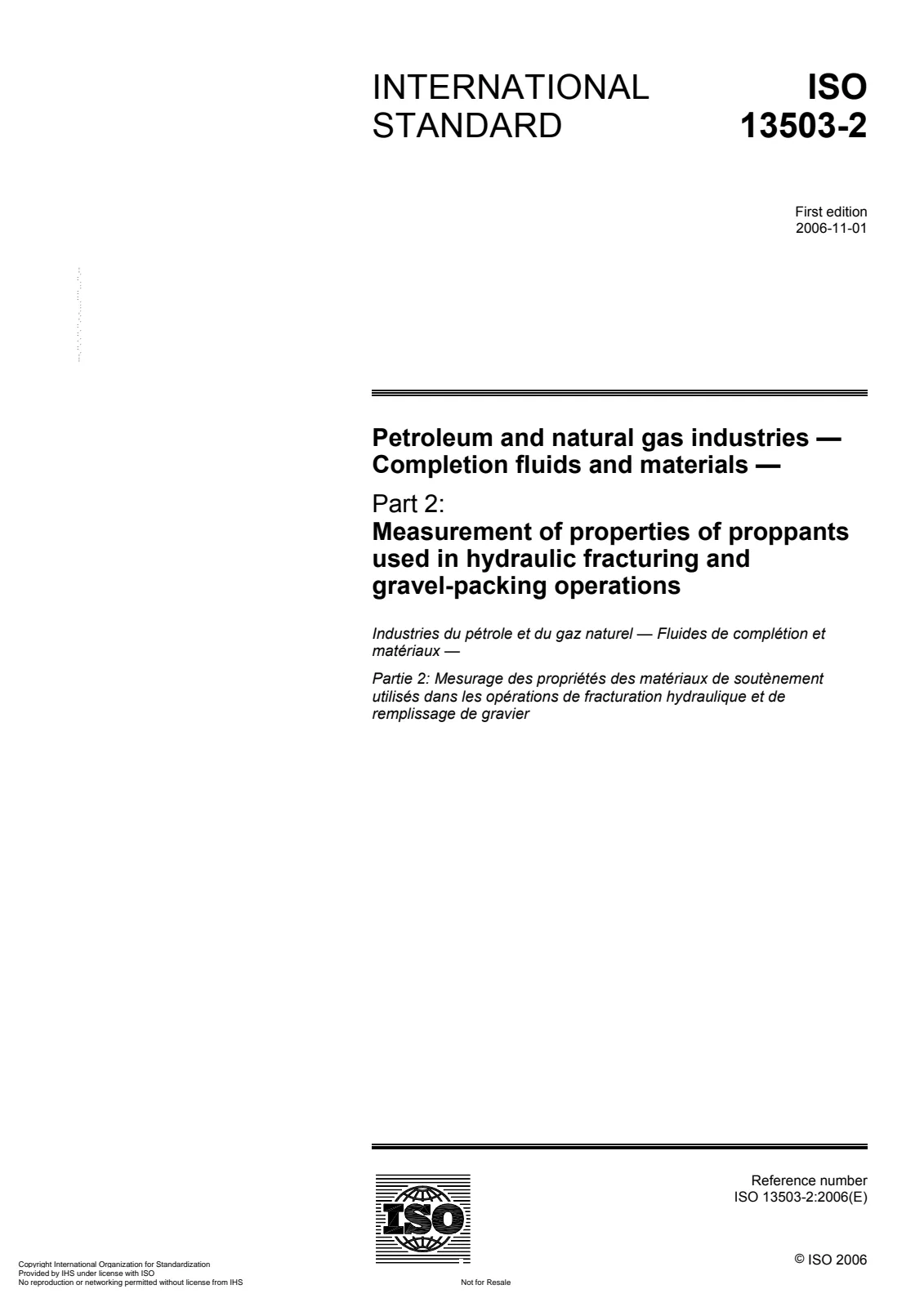

Open preview (PDF)Petroleum and natural gas industries — Completion fluids and materials — Part 2: Measurement of properties of proppants used in hydraulic fracturing and gravel-packing operations — Amendment 1: Addition of Annex B: Proppand specification
