Overview
ISO 15821:2007 is an international standard developed by ISO for evaluating water-tightness under dynamic pressure for doorsets and windows. The standard outlines a laboratory test method that replicates real-world conditions faced in areas exposed to extreme weather, such as regions affected by cyclones, hurricanes, typhoons, or heavy wind-driven rain. It specifically applies to the assembled product as installed for normal use, but does not cover the joints between the door or window frame and the building structure.
The goal of ISO 15821:2007 is to provide manufacturers, testing laboratories, and specifiers with a consistent approach to assess a doorset’s or window’s resistance to water penetration under cyclic, fluctuating wind pressures, ensuring durability and safety in severe climates.
Key Topics
- Dynamic Pressure Testing: The standard specifies applying a pulsating, sine-like dynamic pressure to the exterior face of doorsets and windows while water is sprayed continuously across the surface. This simulates wind-driven rain in cyclonic events.
- Water-tightness Assessment: Assessment is based on the product's ability to resist water penetration during and after exposure to simulated severe weather conditions.
- Test Apparatus Requirements: Detailed specification for pressure chambers, sprayers, pressurizers, and measurement devices to ensure repeatability and reliability of results.
- Test Procedure: Stepwise procedures, including specimen preparation, application of static and dynamic pressures, water spraying, and visual observation for water penetration.
- Test Reporting: Requires detailed documentation of specimen characteristics, test conditions, observed results, and relevant parameters for comprehensive quality assurance.
- Applicability: Focuses on severe climate zones, covering scenarios faced in coastal, tropical, and hurricane-prone regions.
Applications
The practical value of ISO 15821:2007 lies in its use across several domains:
- Product Development: Manufacturers of doorsets and windows use this standard during product design and quality control to ensure products meet rigorous performance criteria for water-tightness in severe weather.
- Compliance and Certification: Regulatory bodies and third-party certifiers employ the standard to validate claims regarding water resistance, a crucial aspect for approval in many building codes, especially in cyclone-affected regions.
- Project Specification: Architects and engineers specify ISO 15821:2007 when selecting products for high-exposure locations, helping mitigate risk and ensure occupant safety and comfort.
- Laboratory Testing: Accredited laboratories use the standard for benchmarking, quality assessment, and R&D, ensuring consistency and comparability in international markets.
Adopting ISO 15821:2007 ensures that doors and windows are fit for purpose in environments subjected to extreme wind-driven rain, thus protecting property and lives.
Related Standards
For comprehensive performance evaluation, ISO 15821:2007 is often referenced alongside related international standards:

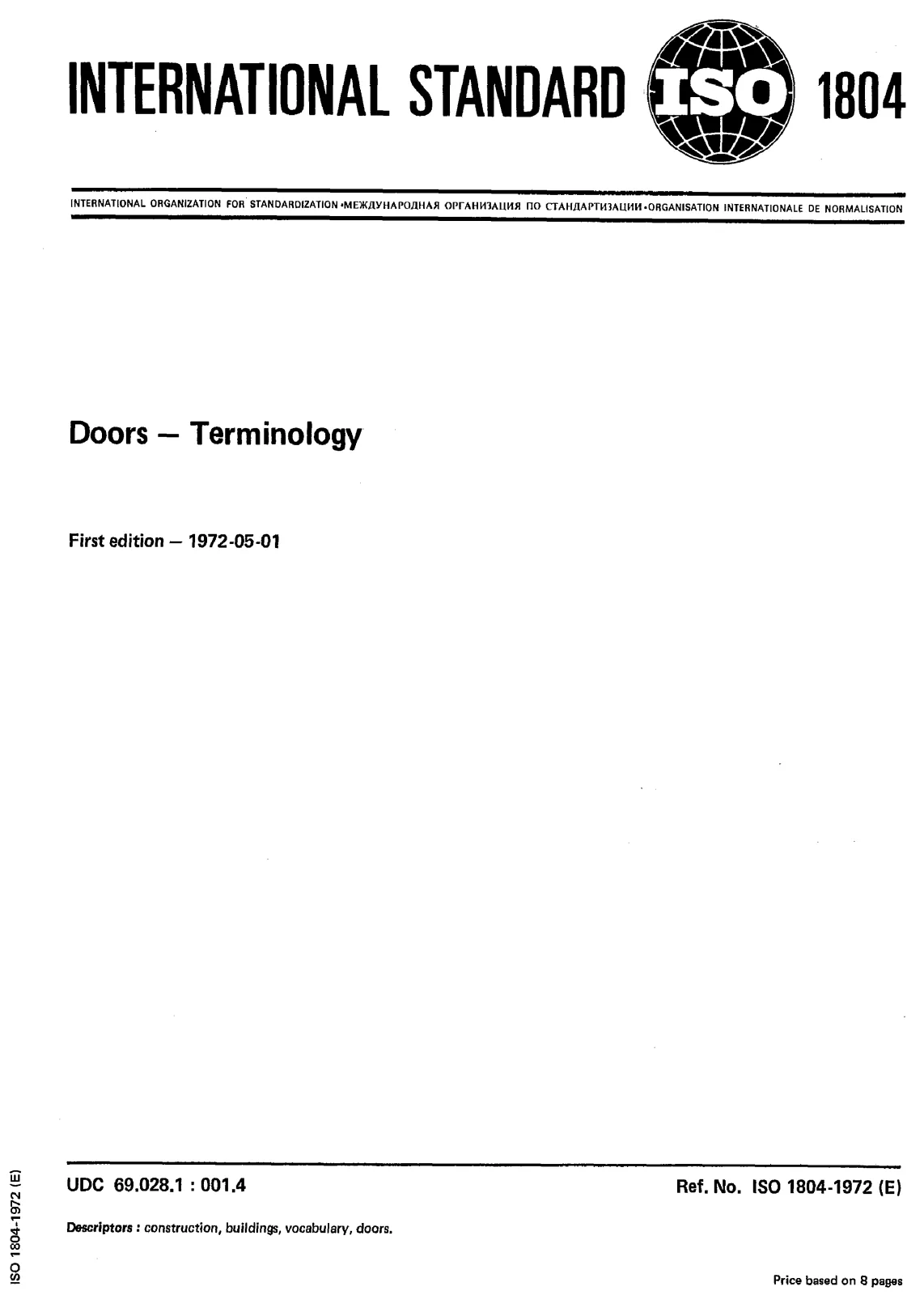

- ISO 1804: Terminology for doors, relevant for consistent definitions and communication.
- EN 1027: European method for testing water-tightness under static pressure for windows and doors.
- ASTM E331: Standard test method in North America for water penetration in windows, skylights, doors, and curtain walls under static air pressure.
- ISO/TC 162 Standards: Additional ISO standards for doors and windows, providing broader context and supplementary requirements.
By following ISO 15821:2007 and related standards, stakeholders in the construction and fenestration industries can ensure doorsets and windows are tested rigorously, achieving durable, safe, and high-performing building envelopes in the face of the world’s harshest weather conditions.
