Overview
ISO 15886-4:2019 - "Irrigation equipment - Irrigation sprinklers - Part 4: Test methods for durability" defines standardized test methods and conditions for assessing the durability of rotating sprinklers used in irrigation. The standard covers a broad range of products (as classified in ISO 15886-1) that have both static and moving parts during operation, and it provides reproducible procedures for durability testing to support product development, quality control and conformity assessment.
Key topics and technical requirements
ISO 15886-4 sets out measurement accuracy, test conditions, pre‑test checks and post‑test examinations. Important technical points include:
- Scope: Rotating sprinklers with moving parts; addresses many nozzle configurations and operating adjustments (interpolation techniques may reduce test runs if accuracy is maintained).
- Measurement accuracy:
- Pressure measurement accuracy: ±1.0%
- Flow rate accuracy: ±2.0%
- Temperature accuracy: ±0.5 °C
- Other measurements: ±3.0%
- Pressure and hydrostatic resistance (pre-durability checks):
- Metal sprinklers: raise to 2× maximum working pressure (Pmax) for up to 10 min.
- Plastic sprinklers: raise to 2.4× Pmax for up to 1 h.
- Test conditions:
- Clean water filtered through 130 µm (120 mesh).
- Water temperature during tests: 5 °C to 35 °C.
- Test pressure must not change by more than 5% during a run.
- No influence from atmospheric conditions, algae growth, or facility return spray.
- Tests and measurements covered: water tightness, flow rate vs inlet pressure, trajectory height, radius of throw and distribution curve, uniformity of rotation, distribution characteristics, and required installation/mounting procedures.
Applications
ISO 15886-4 is used for:
- Durability validation during product development and R&D.
- Routine quality control and type testing by sprinkler manufacturers.
- Independent testing and certification by laboratories and standards bodies.
- Procurement specifications and compliance checks in agricultural and turf irrigation projects.
- Informing lifetime and maintenance planning for irrigation systems.
Who should use this standard
- Irrigation equipment manufacturers and design engineers
- Test laboratories and certification bodies
- Agricultural consultants and irrigation system specifiers
- Quality assurance and compliance teams
Related standards
- ISO 15886-1 (classification of irrigation sprinklers)
- ISO 15886-3:2012 (characterization of distribution and test methods) - referenced for pressure tap construction and distribution testing
Keywords: ISO 15886-4:2019, irrigation sprinkler durability test methods, rotating sprinklers, durability testing, irrigation equipment standard, sprinkler test conditions.

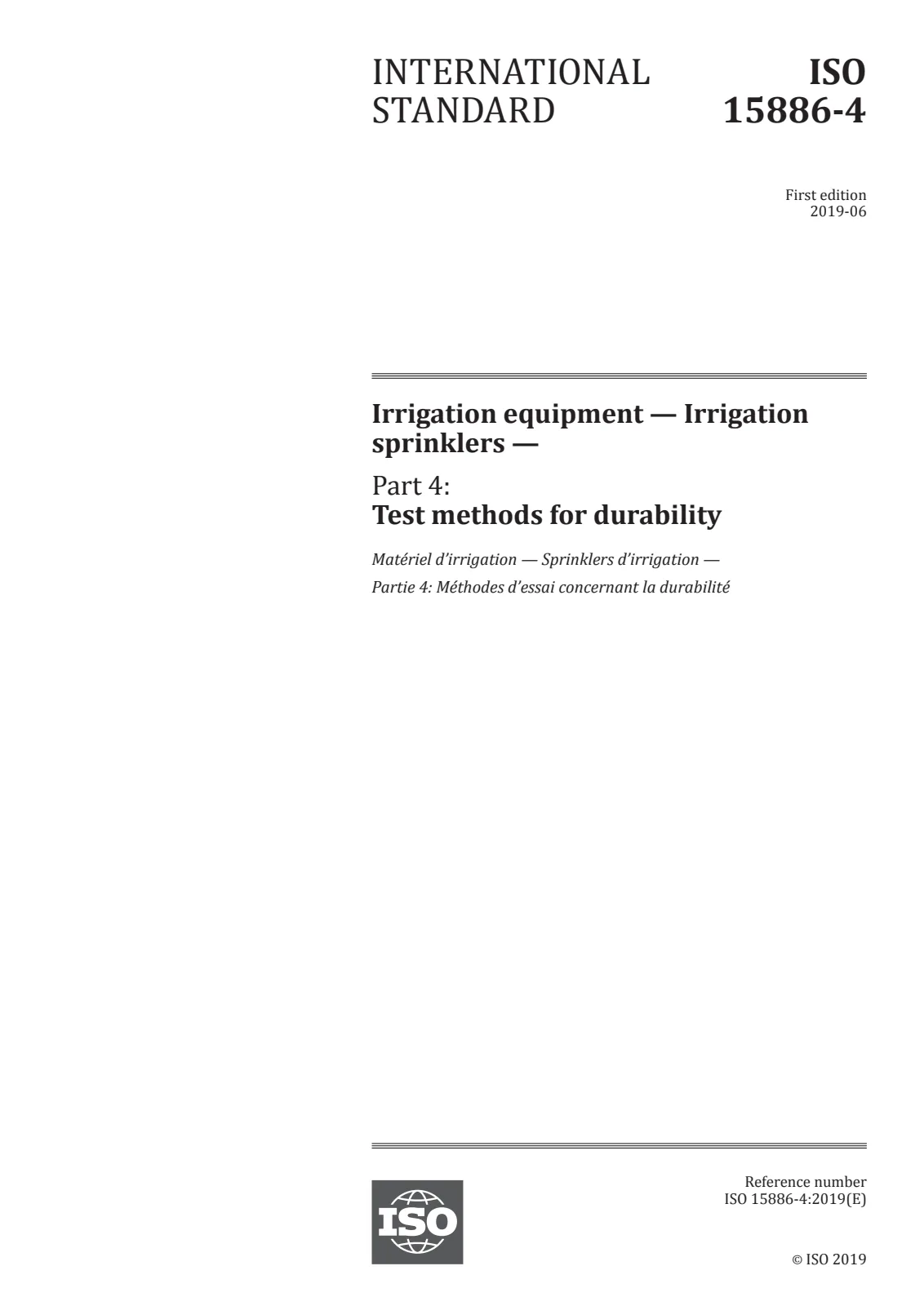

Open preview (PDF)Irrigation equipment — Irrigation sprinklers — Part 4: Test methods for durability
