Overview
ISO 16978:2003 specifies a standardized method for determining the apparent modulus of elasticity (in bending) and the bending strength of wood-based panels using a flatwise bending test. The procedure uses a simply supported specimen with a central line load; the elastic modulus is derived from the slope of the linear portion of the load–deflection curve and bending strength from the rupture load and bending moment. The method is intended to provide reproducible, comparable results for laboratory testing, quality control and structural assessment of panel products.
Practical value: consistent performance data for manufacturers, test laboratories and specifiers; evidentiary test reports for product standards and design verification.
Key Topics
- Test principle: central knife loading on a rectangular specimen supported on two parallel cylindrical supports; measurement of mid-span deflection versus applied load to derive elastic modulus and rupture load.
- Specimen preparation: sampling and cutting are to be carried out in accordance with ISO 16999; specimens are rectangular with a nominal width of 50 ± 1 mm unless otherwise required for special panel constructions.
- Conditioning: specimens must be conditioned to constant mass at (65 ± 5) % relative humidity and (20 ± 2) °C before testing.
- Apparatus and accuracy:
- Two parallel cylindrical supports and a central cylindrical knife sized for panel thickness categories (specified diameters in the standard).
- Deflection measurement accurate to 0.1 mm and load measurement accurate to 1 % of the measured value.
- Adjustable support span set to at least 20 × nominal thickness (not less than 100 mm and not greater than 1 000 mm).
- Data and calculations: the elastic modulus is calculated from an increase in load and corresponding deflection within the linear elastic region (typically between ~10 % and ~40 % of rupture load), and bending strength from the maximum (rupture) load and the test geometry.
- Reporting: test reports must record specimen dimensions, conditioning, support span, apparatus used, test results (E and bending strength), and any deviations from the standard.
Applications
- Routine quality control of plywood, particleboard, MDF and other wood-based panels.
- Generation of design values for structural specification and engineering calculations.
- Comparative product testing and verification for procurement and certification.
- Supporting R&D and material optimization for panel manufacturers.
Related Standards

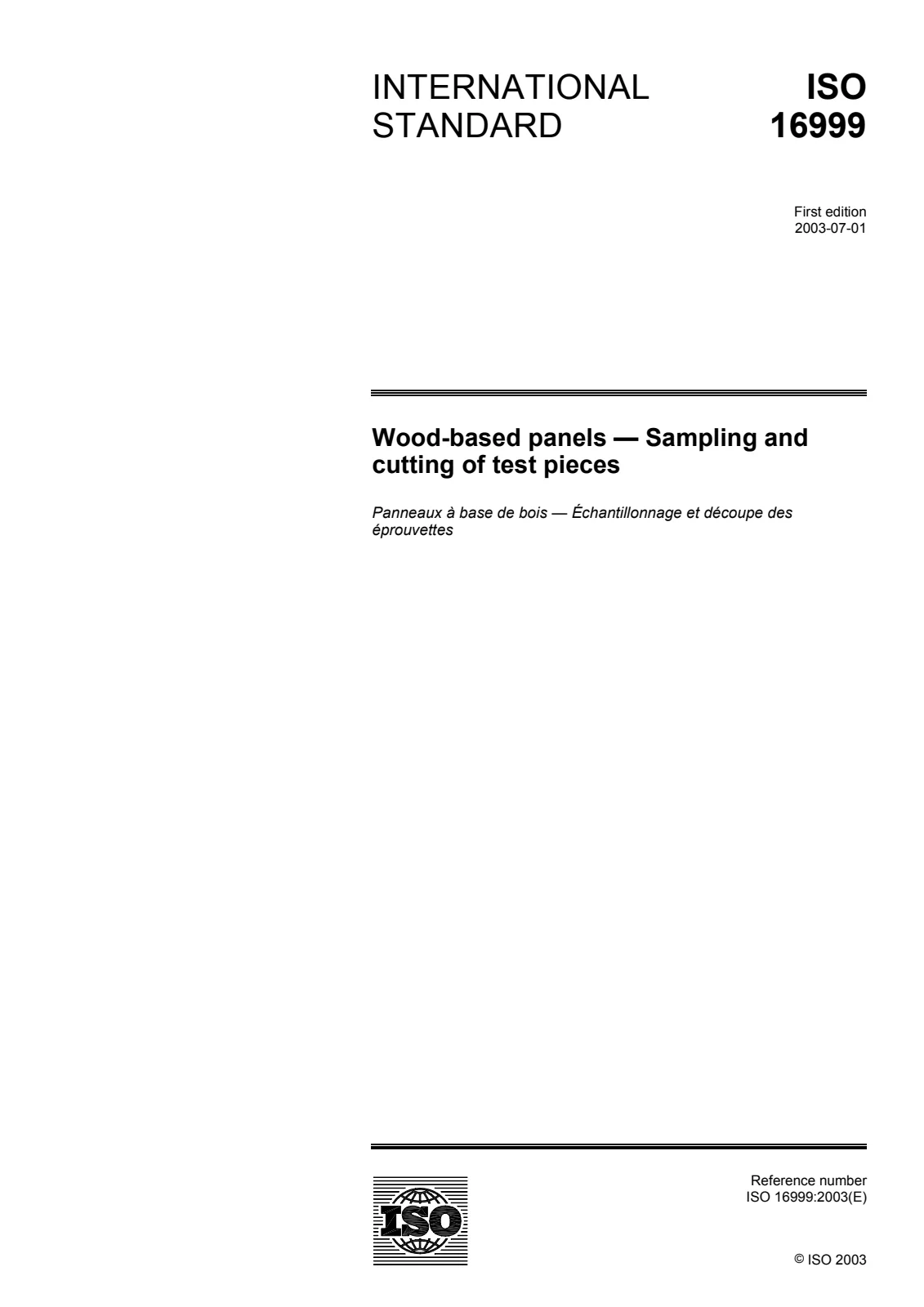

- ISO 16999 - Sampling and cutting of specimens for wood-based panels
- ISO 9424 - Measurement of specimen dimensions for wood-based panels
- EN 310 - European method for bending properties of wood-based panels (historical reference)
For accurate implementation, refer directly to ISO 16978:2003 for all specified dimensions, device geometry and formulae used to compute test results.
