Overview

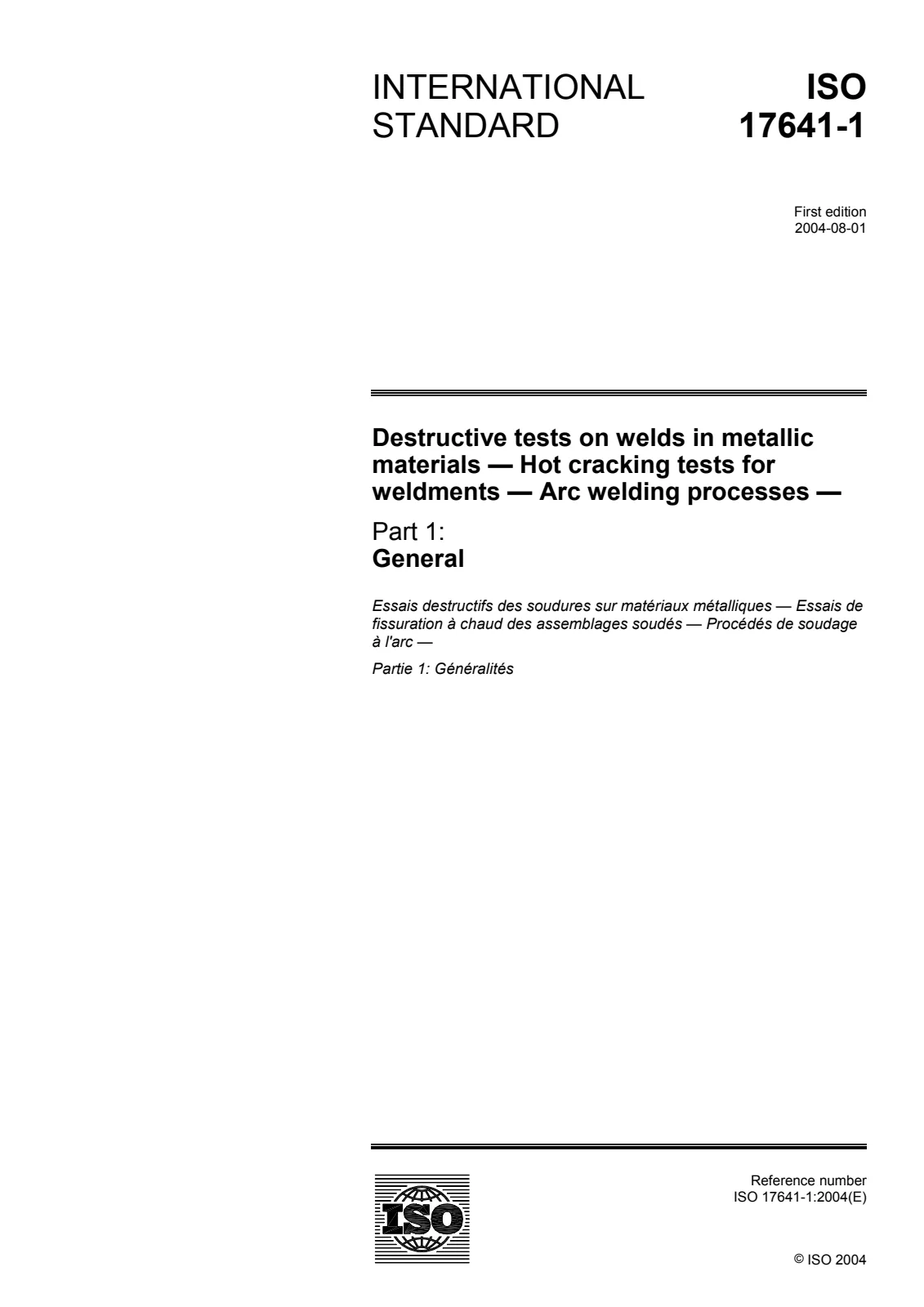

ISO 17641-1:2004, titled Destructive tests on welds in metallic materials - Hot cracking tests for weldments - Arc welding processes - Part 1: General, provides a fundamental introduction to hot cracking phenomena in weld metals and parent alloys. Published by ISO in 2004, this standard lays the groundwork for understanding hot cracking mechanisms and summarizes various destructive testing methods used for weldments processed by arc welding. It is part of a multipart series addressing hot cracking tests, offering essential terminology, test types, and applications to support welding quality assurance.
Key Topics
-
Fundamentals of Hot Cracking:
Hot cracking refers to material separations forming at elevated temperatures during welding due to strain and limited ductility in weld zones. Types include:
- Solidification cracks developing during weld metal solidification.
- Liquation cracks appearing in the heat-affected zone (HAZ) or reheated multi-pass welds.
- Ductility dip cracks occurring due to reduced hot ductility during welding.
-
Test Classifications:
- Self-restraint tests: Use internal strains from weld restraint to evaluate susceptibility, primarily testing weld metals.
- Externally loaded tests: Employ external mechanical loads during or after welding to simulate strains. Suitable for weld metals, parent material, and HAZ.
-
Test Examples:
- T-joint weld cracking test: Assesses solidification cracking in fillet welds with varying restraint.
- Weld metal tensile and longitudinal bend tests: Reveal micro and liquation cracks by mechanical straining of test specimens.
- Varestraint and Transvarestraint tests: Apply controlled weld loading to measure hot cracking susceptibility quantitatively via crack length and surface strain.
- Hot tensile and controlled flat tensile tests: Conduct simultaneous heating and mechanical loading to simulate welding conditions and determine critical strain velocities causing cracking.
-
Terms and Definitions: Clarify key concepts like strain, microcracks, brittle temperature range (BTR), and crack sensitivity indices to standardize communication in testing and reporting.
Applications
ISO 17641-1 supports a variety of practical welding quality assurance and material evaluation needs:
- Welding Consumables Qualification: Tests like the T-joint cracking and weld metal tensile test are used to qualify filler materials by assessing their hot cracking resistance.
- Welding Procedure Qualification: Self-restraint and externally loaded tests verify the suitability of welding procedures by simulating real-world thermal and mechanical conditions.
- Material Selection and Development: Hot tensile and Varestraint tests aid in choosing parent metals and weld combinations with optimal weldability.
- Production Quality Monitoring: In-process tests detect cracking susceptibility, helping to minimize defects during actual fabrication.
By applying these testing methods, manufacturers and welding engineers can reduce weld failures related to hot cracking, optimize welding parameters, and ensure structural integrity. The standard also facilitates reproducible evaluation across laboratories, although some externally loaded tests may show inter-laboratory variations.
Related Standards
ISO 17641 is a multipart standard series specifically addressing hot cracking, structured as follows:
- Part 1: General (ISO 17641-1:2004) – Introduction and overview of hot cracking fundamentals and tests.
- Part 2: Self-restraint tests (EN ISO 17641-2:2004) – Detailed procedures for assessing weld metal susceptibility under welding restraint.
- Part 3: Externally loaded tests (prCEN ISO/TR 17641-3:2003) – Procedures for evaluating cracking under external mechanical loads during or after welding.
Additional normative references, such as welding consumables standards and methodology guides, complement the ISO 17641 series to form a comprehensive framework for destructive weld testing in metallic materials.
Keywords: ISO 17641-1, hot cracking tests, weld testing, arc welding processes, destructive tests, solidification cracks, liquation cracks, ductility dip cracks, self-restraint tests, externally loaded tests, Varestraint test, welding consumables, weld metal, heat-affected zone, welding procedure qualification, metallic materials weld quality.
