Overview
ISO 22074-6:2021 specifies a laboratory test procedure to determine the effect of exposure to severe environmental conditions on rail fastening systems. The standard addresses a complete fastening assembly that includes an embedded rail and mechanical fastenings; it explicitly excludes embedded rail systems that rely on adhesive components. The core principle is controlled exposure to a neutral salt spray and recording the impact on dismantling, reassembly and component condition.
Key Topics
- Scope and applicability: Applies to complete fastening assemblies with mechanical components and a short length of the rail section for which the fastening is designed. Adhesive-based embedded rail systems are out of scope.
- Test principle: Expose the assembled fastening to a neutral salt spray (NSS) and assess ease of dismantling/reassembly and condition of individual components.
- Apparatus: Salt spray equipment conforming to ISO 9227 (NSS) and the normal manual tools used for installation and removal of clamping devices.
- Test duration: The procedure specifies exposure in accordance with ISO 9227 for 300 h.
- Procedure highlights:
- Visually examine and record initial component condition.
- Fit rail to sleeper/baseplate using the intended fastening components.
- Subject the specimen to neutral salt spray for the specified period.
- Attempt dismantling with the provided tools; record any failures or difficulty.
- Reassemble the fastening using the provided tools and record observations.
- Reporting: The test report must reference ISO 22074-6:2021 and include laboratory details, test date, description of the fastening assembly and components, specimen origin, support used, rail section, tools provided, changes in appearance, and any failure to dismantle or reassemble.
Applications
This standard is useful for:
- Manufacturers validating the durability of rail fastening systems under corrosive or severe environmental exposure.
- Railway infrastructure engineers assessing serviceability, maintenance effort and repair strategies for fastenings in coastal or polluted environments.
- Test laboratories producing objective evidence on the dismantling and reassembly performance of fastening assemblies after environmental exposure.
Practical benefits include clearer maintenance planning, improved component selection for corrosive environments, and documented evidence to support product acceptance.
Related Standards
- ISO 22074-1 - Vocabulary for rail fastening systems (terms and definitions used in this series).
- ISO 9227 - Corrosion tests in artificial atmospheres: Salt spray tests (reference for NSS apparatus and conditions).
For implementation, consult the full ISO 22074-6:2021 text and liaise with your national standards body or accredited test laboratory for compliance and test execution details.

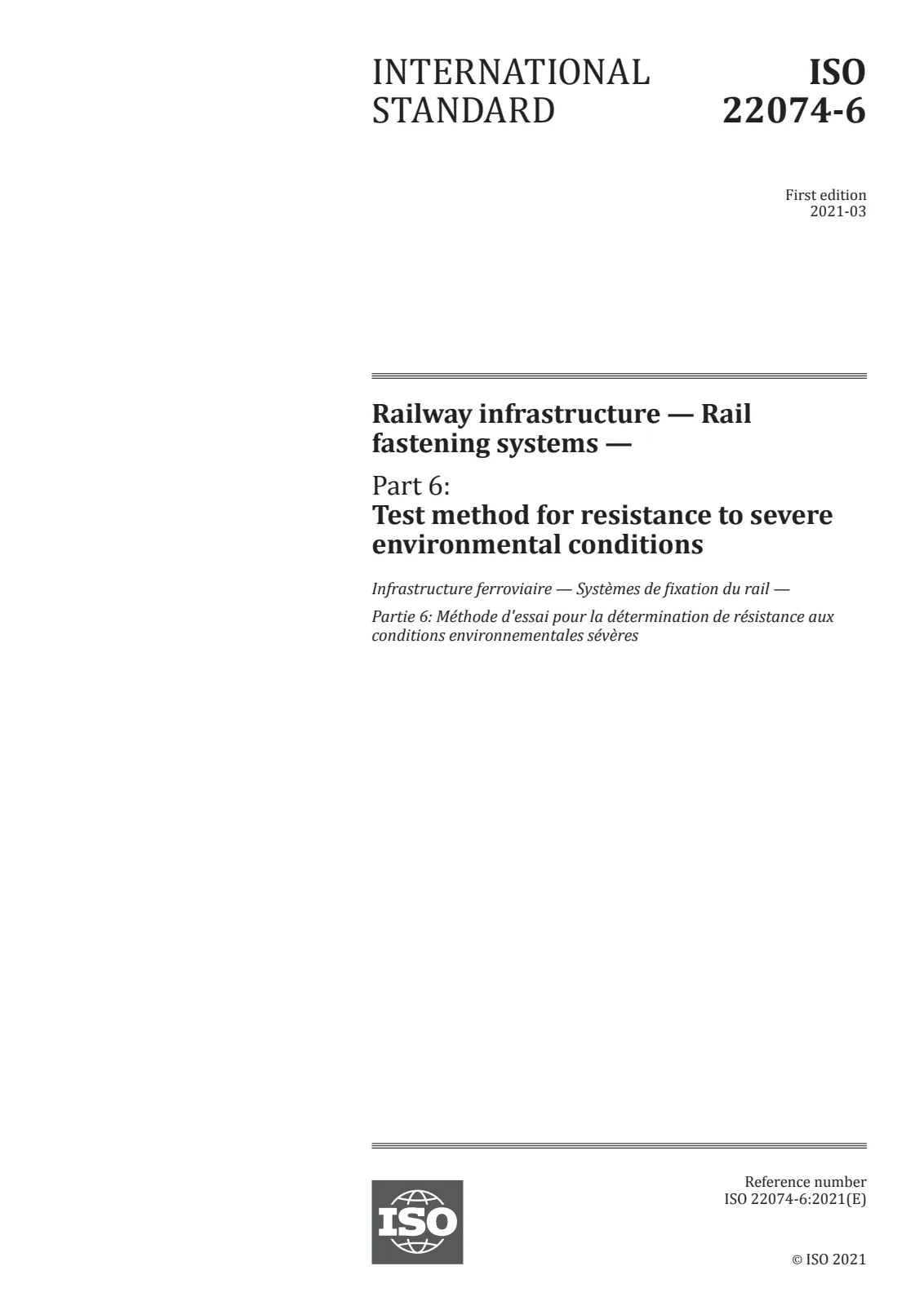

Open preview (PDF)Railway infrastructure — Rail fastening systems — Part 6: Test method for resistance to severe environmental conditions
