Overview
ISO 22448:2010 - Earth-moving machinery - Anti-theft systems - Classification and performance defines a structured approach to protecting earth-moving equipment from theft. The standard classifies anti-theft measures into seven levels (I–VII) and specifies performance criteria and installation/service requirements for each. It also provides guidance on managing critical documentation and theft-sensitive spare parts. Note: ISO 22448:2010 is not applicable to tracking systems that only monitor machine location.
Key topics and technical requirements
- Seven-level classification (I–VII) that ranges from simple mechanical keys to complex, multi-ECM/ECU immobilizer systems:
- Level I - Universal key (mechanical)
- Level II - Mechanical restraint (locks, chains)
- Level III - Unique key (machine-specific)
- Level IV - Add-on authentication (password + device)
- Level V - Manufacturer’s authentication (integrated OEM system)
- Level VI - Electronic immobilizer (immobilizer software in at least one ECM/ECU)
- Level VII - Multiple-ECM/ECU immobilizer (shared tokens across ECMs)
- Authentication requirements: use of authentication devices, password processes and tokens; minimum of 10,000 possible passwords for Levels IV–VII.
- Security behavior: systems should not stop machine functions until engine shutdown; automatic locking after shutdown; limited wrong-attempt retries with timed lockouts.
- Mechanical and physical resistance: mechanical restraints and immobilizers must resist tool-based attacks and be difficult and time-consuming to bypass or replace.
- Service and reprogramming controls: Levels VI and VII require that only authorized personnel (manufacturer/dealer) use authorized service tools for setup, maintenance or reprogramming.
- Key/profile requirements: key profiles for mechanical locks should have at least 50 permutations (Levels II & III).
- Documentation & spare parts: instructions must avoid exposing critical design details; spare parts should be designed to prevent unauthorized substitution.
Applications and users
ISO 22448:2010 is practical for:
- OEMs and equipment designers specifying integrated immobilizers and authentication architectures.
- Fleet managers and purchasers who need to select machines with defined anti-theft performance levels.
- Dealers and authorized service personnel implementing or maintaining immobilizer systems per manufacturer controls.
- Aftermarket security suppliers designing add-on authentication or mechanical restraints to meet Levels II–IV.
- Risk managers and insurers assessing theft risk and mitigation measures for construction and mining fleets.
- Standards committees and regulators aligning procurement or safety policies with recognized anti-theft performance criteria.
Related standards
- ISO 6165 - Earth-moving machinery: basic types and definitions (referenced for machine scope)

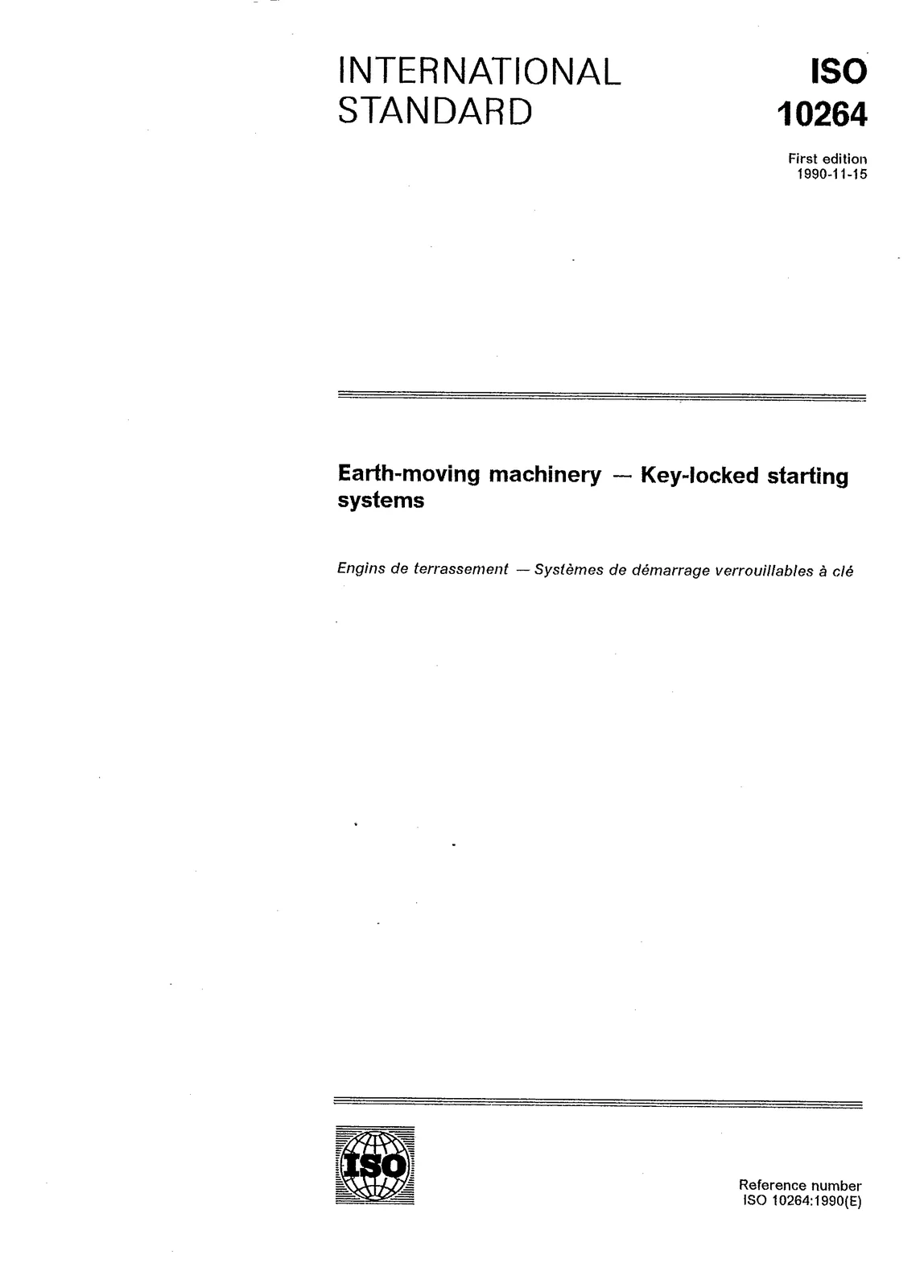

- ISO 10264 - Key-locked starting systems (applies to Levels I and III)
Keywords: ISO 22448:2010, earth-moving machinery, anti-theft systems, immobilizer, authentication device, ECM/ECU, mechanical restraint, theft-sensitive spare parts, equipment security.
