Overview
ISO 22669:2021 - "Space data and information transfer systems - Space Link Extension (SLE) - Return‑all‑frames (RAF) service specification" - defines the RAF transfer service in an abstract, implementation‑neutral way. The standard specifies the operations, parameters, behaviors and valid operation sequences needed to deliver all telemetry frames from a single space link physical channel to a mission user. It is part of the SLE/CCSDS suite for cross‑support of space missions and focuses on service semantics rather than product or implementation details.
Key topics and technical requirements
- Service definition and operations: Formal description of RAF operations (bind, unbind, start, stop, transfer‑data, sync‑notify, status reports, peer abort, etc.) and the parameters associated with each.
- Behavioral model: Expected behaviors and valid sequences for invocations and returns, plus provider state transitions and protocol dynamics.
- Protocol and provider behavior: Guidance on RAF protocol characteristics and the runtime behavior of an RAF service provider.
- Data types and conformance: ASN.1 normative definitions for RAF data types and a conformance matrix specifying required capabilities for compliant implementations.
- Production status and lifecycle: Annex addressing production status transitions and how service provision maps to operational readiness.
- Operational constraints on the communications layer: The standard requires the underlying communications service to deliver operation invocations/returns:
- in sequence,
- completely and with integrity,
- without duplication,
- with flow control (congestion notification), and
- with disruption notification (when links are lost and data may be lost).
- Security considerations: High‑level discussion of security aspects applicable to RAF services.
- What it does not cover: ISO 22669 explicitly excludes implementation designs, ground/space signal acquisition techniques, communications environment provisioning, and operational scheduling/configuration practices.
Applications
- Standardizing telemetry distribution from tracking stations or ground data systems to mission users (multi‑agency cross support).
- Enabling interoperable ground segment and data‑handling services for spacecraft telemetry delivery.
- Providing a formal basis for vendors and integrators building SLE RAF service providers and mission user interfaces.
- Supporting test, validation and conformance testing of RAF‑capable systems.
Who should use this standard
- Satellite operators, ground segment engineers, systems integrators and vendors implementing SLE RAF services.
- Mission architects defining cross‑support telemetry pipelines.
- Software developers implementing SLE APIs and protocol mappings.
- Standards bodies and procurement teams requiring interoperable telemetry transfer specifications.
Related standards
- SLE Reference Model (CCSDS SLE framework)
- SLE API for Transfer Services and Internet Protocol for Transfer Services (TCP/IP mapping)
- Other CCSDS/ISO telemetry and synchronization recommendations referenced in the RAF specification
Keywords: ISO 22669, Return‑all‑frames, SLE RAF, Space Link Extension, telemetry frames, space data transfer, cross support, ground stations, CCSDS.

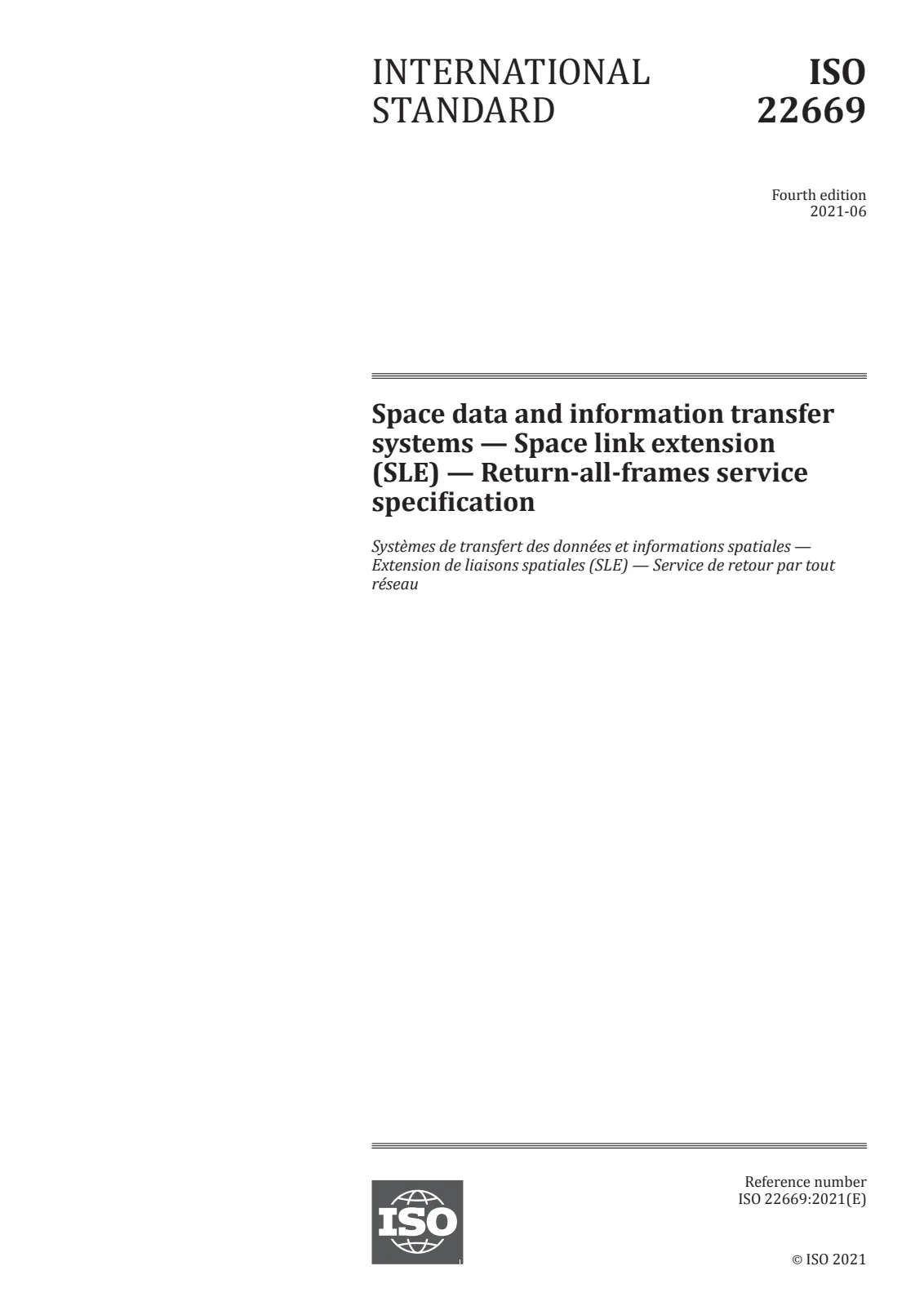

Open preview (PDF)Space data and information transfer systems — Space link extension (SLE) — Return-all-frames service specification
