Overview

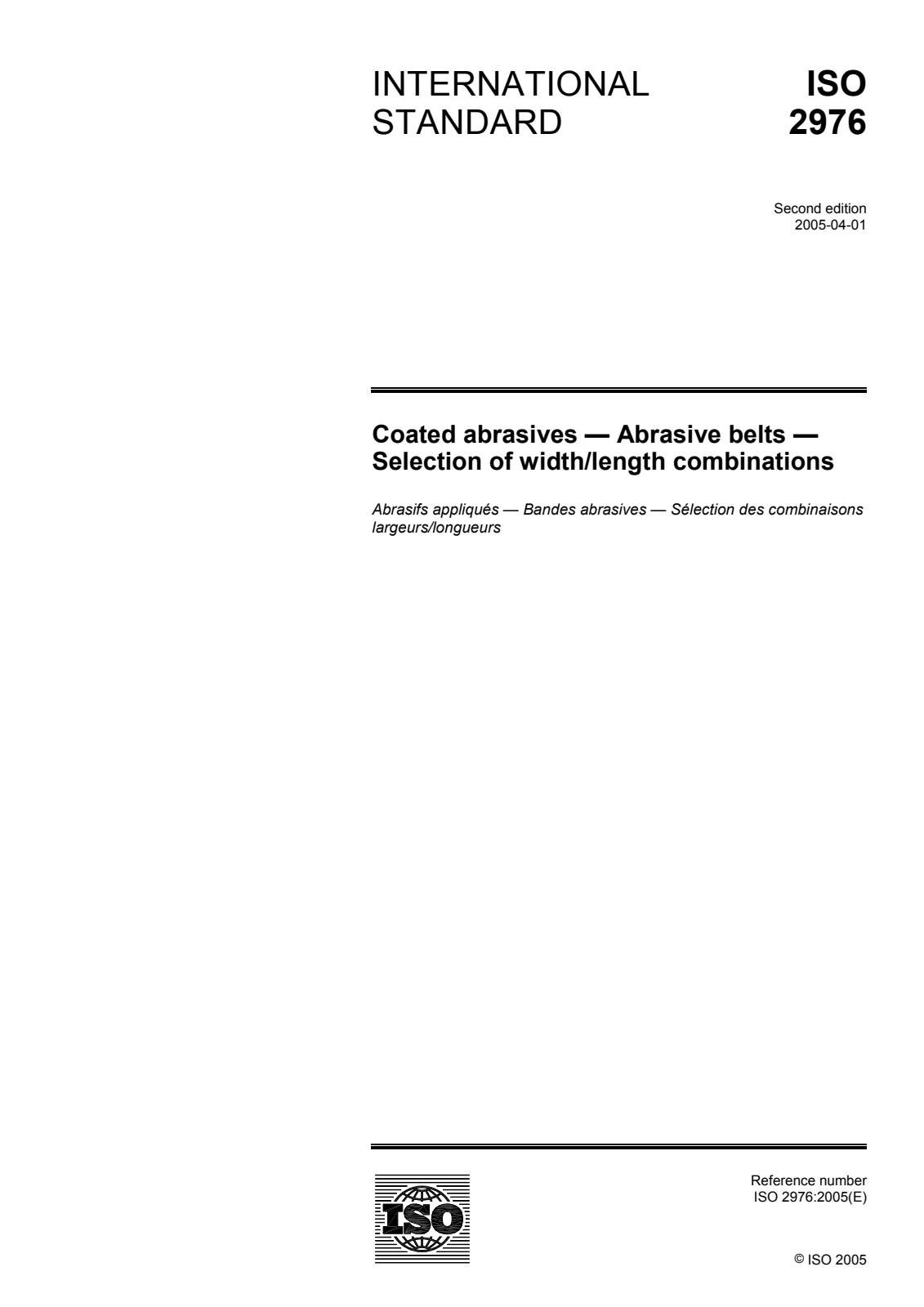

ISO 2976:2005 - "Coated abrasives - Abrasive belts - Selection of width/length combinations" defines the nominal dimensions and limit deviations for coated abrasive belts and prescribes rules for their designation and marking. It applies to abrasive belts intended for use on hand-held and stationary grinding machines. The standard includes preferred size tables, a list of legacy dimensions not to be used for new designs, and environmental test conditions.
Key topics and requirements
- Nominal dimensions and tolerances
- Preferred width/length combinations and their limit deviations are given in Table 1 (standardized sizes). Table 2 lists dimensions that are not recommended for new designs.
- Length difference limit
- The permitted length difference between the two edges of a belt is limited (document specifies separate limits for wider and narrower belts).
- Test conditions
- Dimensional limits are valid under standardized conditioning: 20 °C ± 2 °C and 65 % ± 5 % relative humidity (referenced to ISO 554). Belts shall be stored at these conditions for at least 24 hours before testing.
- Designation
- Belts conforming to ISO 2976 are designated by: “Abrasive belt”, reference to ISO 2976, width T (mm) and length L (mm) (example: Abrasive belt ISO 2976 - 100 × 3 000).
- Marking requirements
- Required marking includes manufacturer/supplier/trademark, direction of rotation (if needed), and grit size.
Applications and who uses this standard
ISO 2976 is useful for:
- Abrasive belt manufacturers - to produce belts to consistent, interoperable sizes and tolerances.
- Quality assurance and test laboratories - to verify dimensional compliance under specified test conditions.
- Machine tool OEMs and end users (metalworking, woodworking, automotive, aerospace, fabrication) - to select compatible belt widths/lengths for hand-held and stationary grinders.
- Purchasing and specification writers - to specify belts unambiguously by ISO designation and ensure compatibility across suppliers.
Practical benefits include improved interchangeability, reduced machine downtime from incorrect belt sizing, consistent fitment on standard roll diameters and platen arrangements, and clearer procurement/specification language.
Related standards
- ISO 554 - Standard atmospheres for conditioning and/or testing (referenced for test temperature and humidity).
- Prepared by ISO/TC 29 (Small tools) - useful when coordinating across abrasive and grinding standards.
Keywords: ISO 2976, abrasive belts, coated abrasives, belt dimensions, width/length combinations, tolerance, designation, marking, grinding machines.
