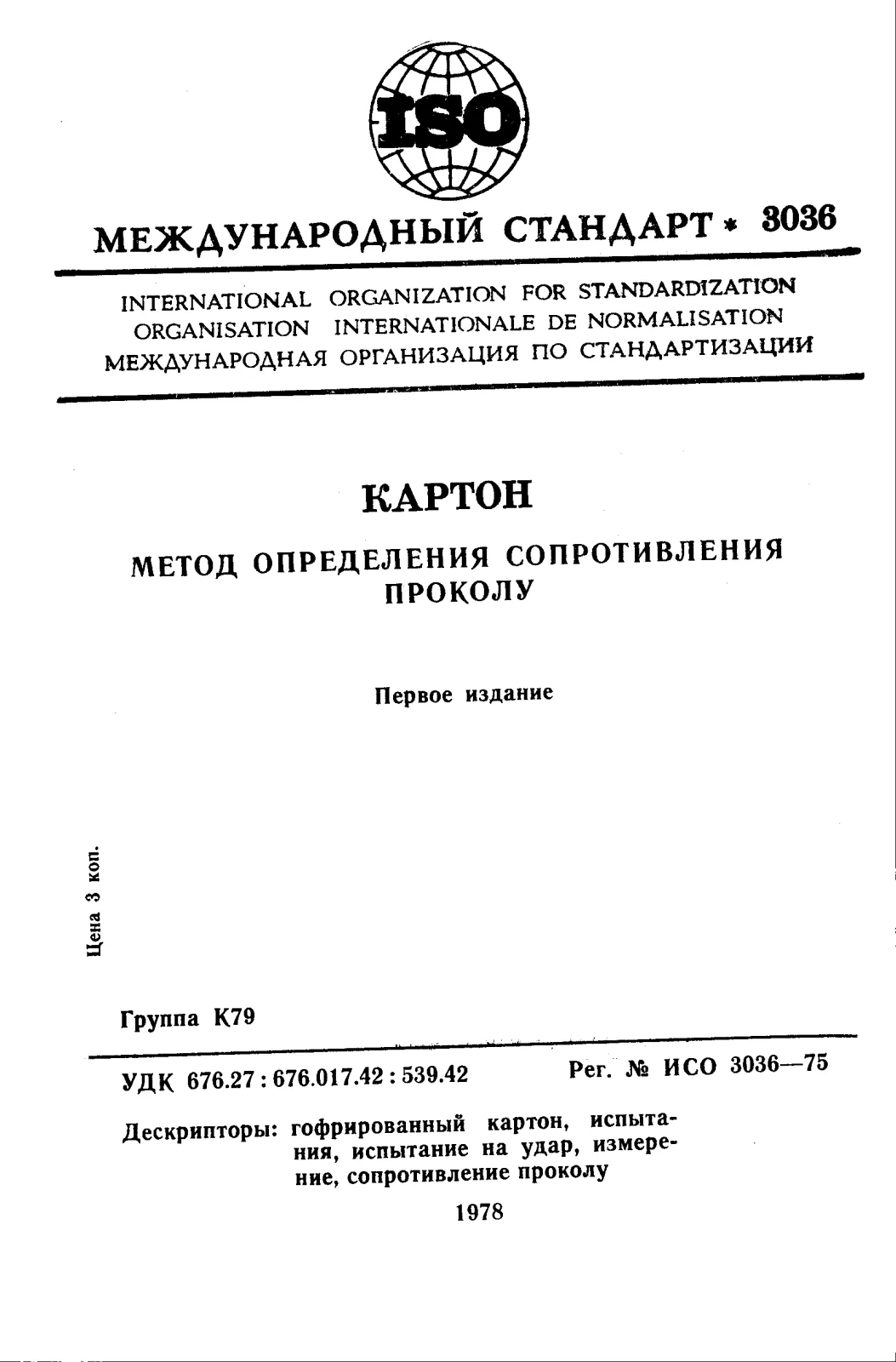

ISO 3036:1975 is an international standard developed by the International Organization for Standardization (ISO) that specifies a method for determining the puncture resistance of board and heavy paper materials, including corrugated fiberboard. Established in 1975, this standard focuses on measuring the energy required for a pyramidal penetrator to perforate and damage board samples. The puncture resistance test is critical for evaluating the durability and protective qualities of packaging materials, particularly those used in manufacturing boxes and heavy cartons.
This standardized test method enhances product quality control and comparison across manufacturers while ensuring reliable performance in applications where mechanical resistance is essential.
Scope and Application The method applies to all types of heavy boards and cartons, especially corrugated boards used in packaging boxes. It evaluates the board’s ability to resist puncture forces.
Testing Principle A pendulum equipped with a pyramidal perforation head strikes the board sample, and the energy required to penetrate and deform the board is measured. This energy corresponds to the board’s puncture resistance and is measured in joules.
Apparatus Description
Test Specimen Preparation Specimens must be cut carefully to dimensions (minimum 175mm x 175mm), free from damage or markings, and conditioned according to reference standards (ISO 187) before testing.
Test Execution Multiple puncture tests are performed in directions parallel and perpendicular to the corrugations. The average energy consumption during perforation is calculated and adjusted for frictional losses.
Result Expression and Reporting Results are expressed as the mean energy in joules needed to puncture the board, reported to one decimal place for values up to 12 J and with greater precision for higher values. Detailed test reports must include apparatus descriptions, test conditions, sample identification, and any deviations from the standard procedure.
Packaging Industry ISO 3036:1975 is widely utilized to assess the puncture resistance of packaging boards, influencing design decisions for protective shipping cartons and containers.
Quality Control Manufacturers use this standard method for routine quality assurance, ensuring board materials meet required durability standards against puncture damage during distribution and handling.
Material Comparison Enables objective comparison of different board products’ mechanical strength, informing procurement and specification processes.
Research and Development Provides a reliable test setup for testing new board materials or treatments aimed at improving puncture resistance.
Understanding and applying ISO 3036:1975 ensures that packaging boards meet global benchmarks for puncture resistance, contributing to enhanced product protection and customer satisfaction. This standard is essential for manufacturers, testing laboratories, and quality assurance professionals involved in the board and packaging industry.
