Overview
ISO 3114:1977 specifies a standardized test method for the extractability of lead and tin stabilizers from unplasticized polyvinyl chloride (PVC) pipes intended for potable water supply. This International Standard focuses on verifying that the quantities of lead salts and organic tin derivatives-used as stabilizers in PVC pipes-do not exceed acceptable concentration limits during extraction. Accurate assessment of these substances ensures the safety and compliance of PVC water pipes with health regulations.
Key Topics
- Scope: Applies exclusively to unplasticized PVC pipes used for transporting drinking water. The test confirms the safety of lead and tin stabilizers.
- Test Principle: Tubular test pieces are pre-washed with tap water followed by three sequential extractions using acidified carbon dioxide-water. The quantity of lead and tin extracted is quantified to evaluate compliance.
- Test Procedure:
- Pre-washing with tap water at a flow rate of 3 m/min for 1 to 6 hours.
- Three extraction steps using acidified water (pH 4.5 ± 0.1), each lasting 48 hours at 20 ± 2 °C.
- Lead and tin concentrations are determined after each extraction.
- Test Specimens: Minimum three pipe sections, each 500 mm long, representing typical unplasticized PVC pipes.
- Analytical Precision: Required detection precision is 0.01 mg/L for lead and 0.001 mg/L for tin, although the exact chemical analysis methods are not defined within the standard.
- Reporting: Test reports must include detailed pipe identification, test piece count, extraction results for lead and tin, methods used for concentration determination, and any deviations or anomalies in test execution.
Applications
The ISO 3114:1977 test method is essential for manufacturers, laboratories, and regulatory bodies involved in:
- Quality control: Ensuring PVC pipes meet safety standards for drinking water distribution by monitoring stabilizer leaching.
- Health and safety compliance: Protecting consumers from exposure to toxic heavy metals such as lead and organotin compounds in water supply systems.
- Product development: Assisting in the formulation of safer PVC materials with low extractability of harmful stabilizers.
- Regulatory certification: Supporting certification and conformity assessments for potable water pipes in domestic and international markets.
- Research and development: Providing a basis for further study on the stability and safety of PVC pipe materials used in fluid transport.
Related Standards
- ISO/TC 138 series: Covers plastics pipes, fittings, and valves for fluid transport, including specifications for materials and test methods.
- ISO 6509: Methods for determination of lead content in water and other materials.
- ISO 15553: Guidelines for testing of leachable substances from plastic piping materials.
- National standards on potable water pipe safety and chemical testing from organizations such as ASTM and EN often complement ISO 3114.
ISO 3114:1977 provides a reliable, internationally recognized methodology to assess the safety of PVC pipes regarding potentially harmful extractable stabilizers. This standard is a critical tool ensuring potable water pipes maintain chemical integrity and consumer safety by controlling lead and tin leaching into drinking water supplies.

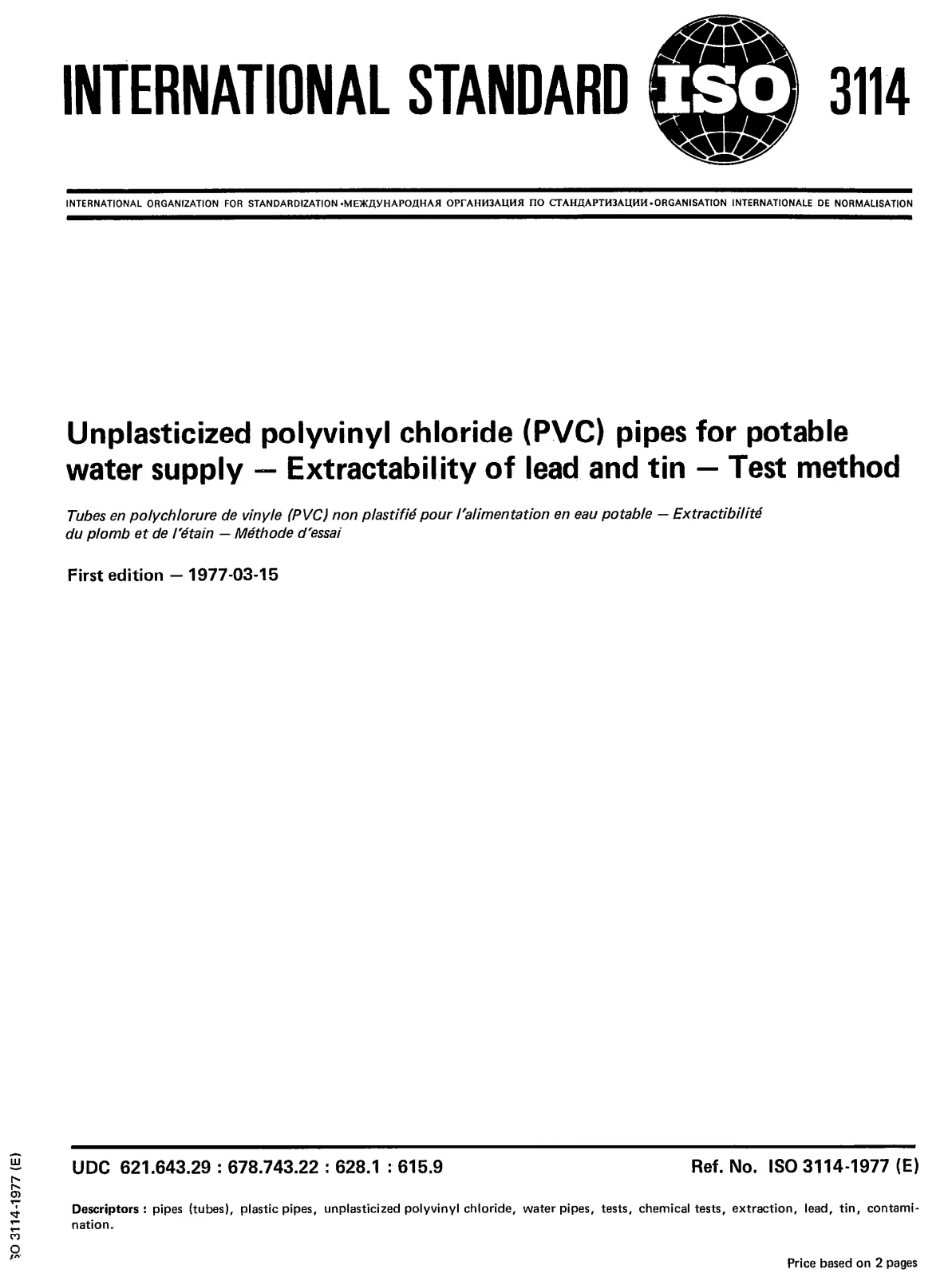

Open preview (PDF)Unplasticized polyvinyl chloride (PVC) pipes for potable water supply — Extractability of lead and tin — Test method
