Overview

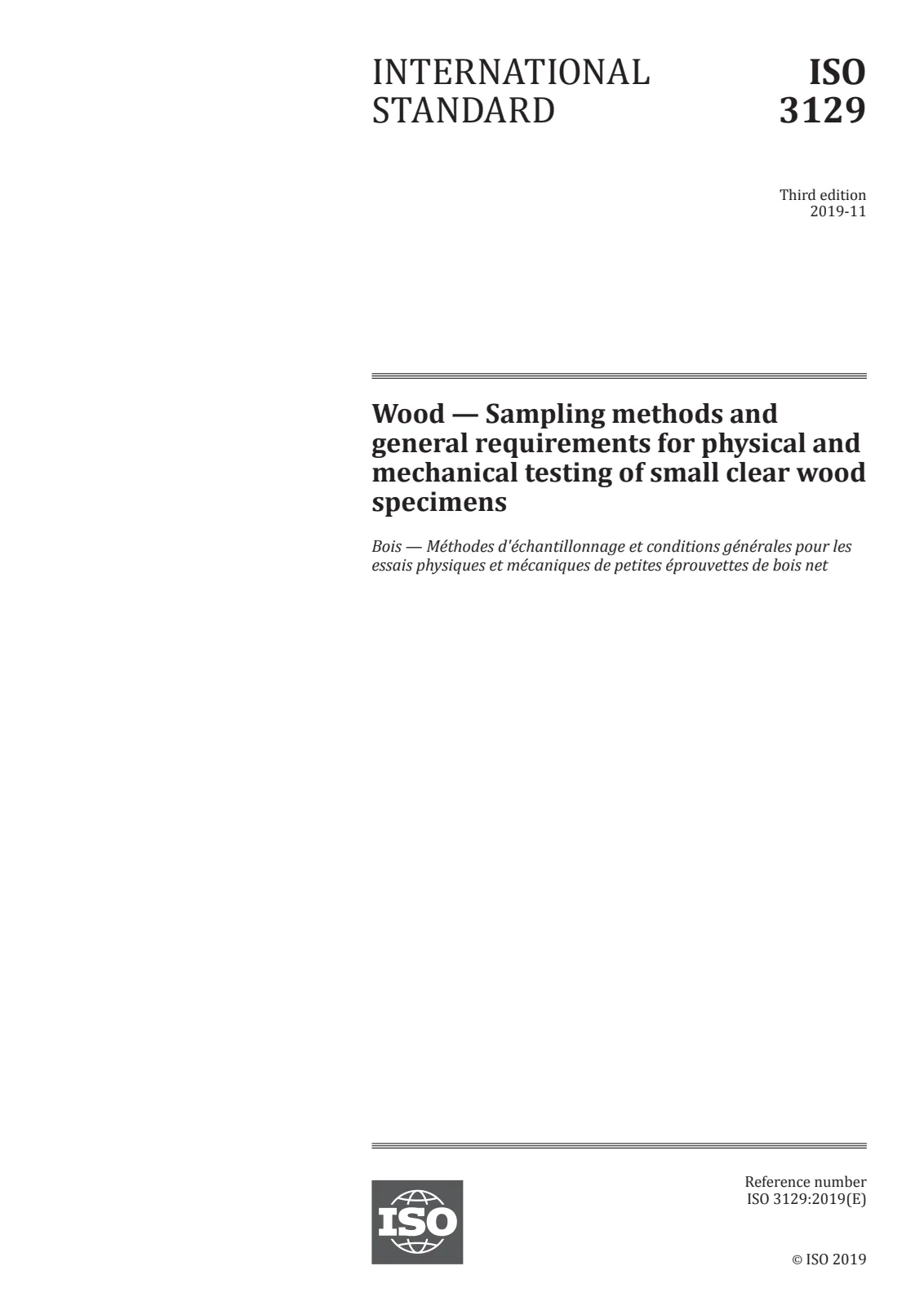

ISO 3129:2019 - "Wood - Sampling methods and general requirements for physical and mechanical testing of small clear wood specimens" - prescribes how to select, condition, prepare and document small clear wood specimens for laboratory physical and mechanical tests. The standard covers extensive and limited sampling from trees, logs or sawn timber intended for non‑structural applications (for example, furniture, windows, doors). It defines sampling principles, conditioning (air‑dry and green), test‑piece preparation, laboratory conditions and reporting requirements to ensure representative and comparable test results.
Key topics and technical requirements
- Scope & material selection: At least five representative trees/logs per species; material may be taken from trees, logs or sawn timber intended for non‑structural uses.
- Sampling from logs and sawn timber: Requirements for cutting heart planks (thickness ≥ 60 mm, special rules when diameter ≤ 180 mm), discard sticks containing pith, and cut sticks parallel to grain with radial/tangential side faces.
- Matching of green and dry specimens: Procedures (end‑matching or side‑matching) to obtain comparable green and dried test pieces from adjacent parts of the same tree.
- Conditioning:
- Air‑dry (standardized moisture): dry below 60 °C, then condition at 20 ± 2 °C and 65 ± 5 % RH to equilibrium moisture content.
- Green condition: keep sticks under controlled conditions to prevent further drying until test pieces are prepared.
- Preparation and dimensions:
- Grain direction: grain parallel to the longitudinal axis; growth rings oriented as specified.
- Dimensional tolerances: gauge length deviations not to exceed ±0.1 mm; other non‑critical dimensions within ±1 mm.
- Minimum stick thickness for sawn timber: ≥ 35 mm (radial/tangential sides).
- Sampling size and statistics: Sample size is selected based on test purpose, sampling method and desired precision (typical target precision p ≤ 5 %). ISO 3129 provides formulas and parameters (coefficients of variation, between‑/within‑tree variance, confidence indices) for determining minimum numbers for selective and mechanical sampling.
- Laboratory conditions, storage and marking: Specifies temperature/humidity control, end‑sealing during conditioning, marking to record original plank/stick positions and sapwood/heartwood origin, and storage to prevent drying.
Applications and practical value
- Ensures repeatable, comparable small‑specimen test data for material characterization, quality control and research on mechanical and physical wood properties.
- Used when evaluating wood for non‑structural products (furniture components, window frames, doors, joinery), product development, species comparison and academic studies of moisture/density effects.
- Facilitates matched green vs. dried property comparisons and statistically sound sampling strategies.
Who should use ISO 3129:2019
- Timber testing laboratories, wood product manufacturers, quality inspectors, researchers in wood science and standards developers (ISO/TC 218 stakeholders).
Related standards
- ISO 24294 (Timber - Round and sawn timber - Vocabulary) is normative referenced; ISO 3129 is intended to be used alongside the relevant ISO standards that define specific test methods for small clear specimens.
Open preview (PDF)Wood — Sampling methods and general requirements for physical and mechanical testing of small clear wood specimens
