Overview
ISO 3521:1997 specifies a standardized method for determining the overall volume shrinkage of unsaturated polyester and epoxy resins. This volume shrinkage measurement is crucial in quality control and product development for plastics involving these thermosetting resins. The standard replaces the first edition issued in 1976 and provides a technical revision based on current practices for shrinkage determination.
The document focuses on measuring volume changes during and after the curing (cross-linking) process of resin samples, ensuring accurate, repeatable, and internationally comparable results. ISO 3521:1997 is instrumental for manufacturers and researchers working with unsaturated polyester and epoxy materials to optimize formulations and processing conditions.
Key Topics
- Scope: Method for determining overall volume shrinkage of unsaturated polyester and epoxy resins after curing.
- Definition: Overall volume shrinkage is the total volumetric reduction of a cast specimen during and following cross-linking, measured after cooling to ambient temperature.
- Measurement Principle: Volume shrinkage is calculated using the difference in density (mass per unit volume) before and after curing.
- Density Determination:
- Initial resin mixture density at mixing temperature.
- Density of fully cured, conditioned specimen at 23°C.
- Apparatus Requirements:
- Precision balance with density measurement capability.
- Immersion element and silicone oil bath with known densities.
- Test tubes for casting specimens.
- Testing Procedure:
- Preparation of resin mixture (excluding initiators for polyesters).
- Heating and mixing components to curing temperature.
- Measuring density changes during curing via immersion method.
- Post-curing conditioning and measurement at 23°C.
- Calculations:
- Volume shrinkage expressed as a percentage based on initial and final densities.
- Reporting:
- Include reference to ISO 3521:1997.
- Product identification and test conditions.
- Recorded shrinkage percentage and procedural deviations.
Applications
ISO 3521:1997 is vital for industries where unsaturated polyester and epoxy resins are widely used, including:
- Composite Manufacturing: Ensuring dimensional stability and fiber-resin compatibility by controlling resin shrinkage in reinforced composites.
- Automotive and Aerospace: Producing parts with exact tolerances where shrinkage affects structural integrity and assembly.
- Marine and Construction: Optimizing resin formulations for minimal shrinkage to improve durability and longevity of molded components.
- Electronics Encapsulation: Guaranteeing reliable protection and fit of epoxy encapsulants by controlling shrinkage-induced stresses.
- Research & Development: Formulation optimization and comparative evaluation of new resin systems for minimal volumetric contraction.
By accurately determining volume shrinkage using the ISO 3521 method, manufacturers can improve product quality, reduce waste, and ensure compliance with international standards.
Related Standards
-
ISO 1675:1985 – Plastics – Liquid resins – Determination of density by pycnometer method.
This standard supports ISO 3521 by providing the density measurement technique used for resin components and cured specimens.
-
ISO 11357 Series – Plastics – Differential scanning calorimetry (DSC) and thermomechanical analysis for curing behavior studies, useful in conjunction with ISO 3521.
-
ISO 9001 – Quality management systems ensuring proper implementation of test methods like ISO 3521 in industrial environments.
Implementing consistent testing according to ISO 3521 enhances material characterization and supports compliance with broader plastic and composite industry standards.
Keywords: ISO 3521, volume shrinkage, unsaturated polyester resin, epoxy resin, plastics testing, resin curing, density measurement, silicone oil immersion, resin formulation, composite materials, quality control, thermosetting resins.

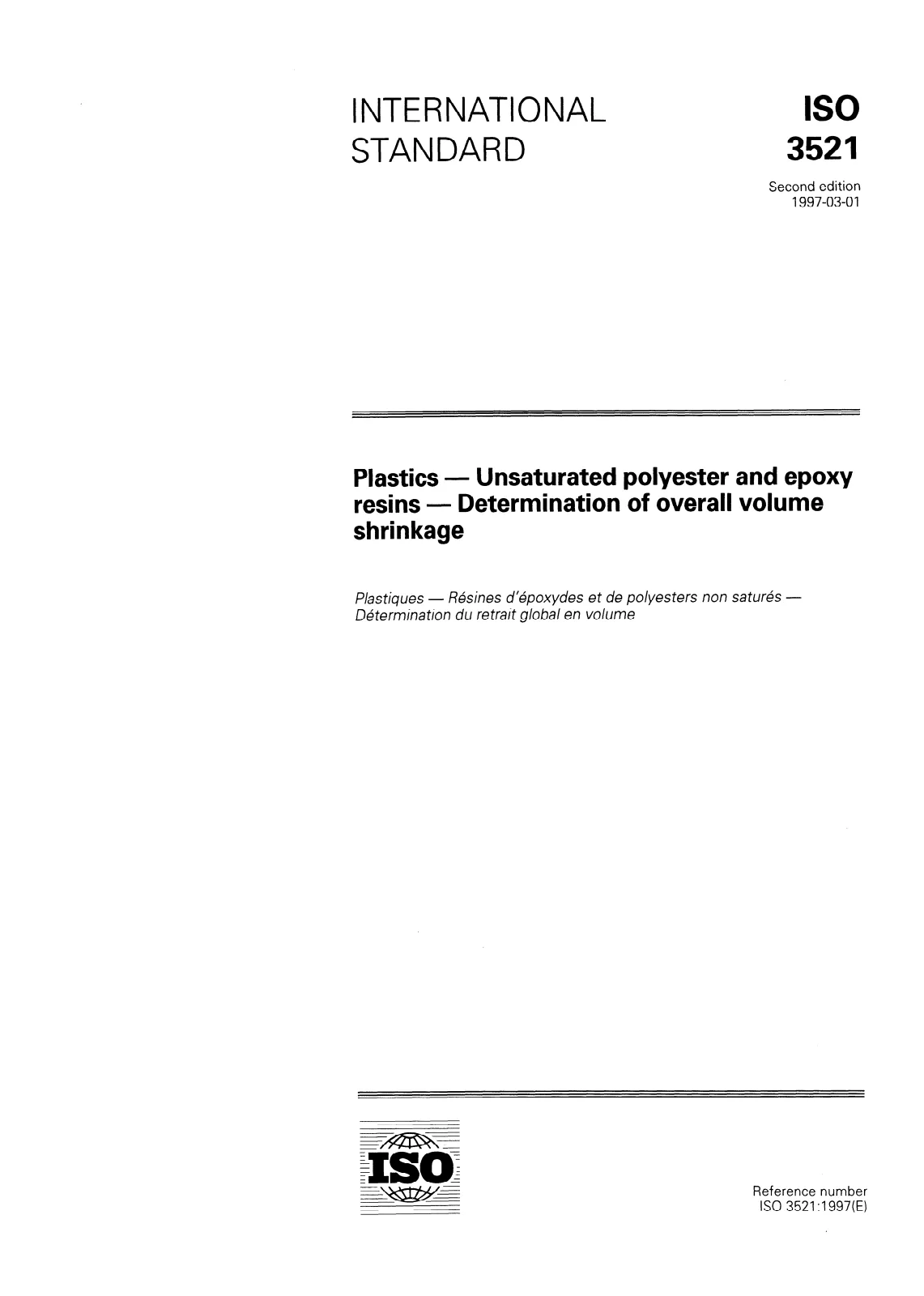

Open preview (PDF)Plastics — Unsaturated polyester and epoxy resins — Determination of overall volume shrinkage
