Overview
ISO 3774:1988 is an international standard published by ISO that specifies critical dimensions for cutting and perforating 35 mm motion-picture film, particularly with 8 mm Type S perforations. This standard focuses on defining precise cutting and perforation sizes for film formats featuring either five perforation rows at positions 1-3-5-7-0 or two rows at positions 1-0. It addresses the geometry required for producing high-quality 35 mm cinematographic film stock, ensuring compatibility and stability during film handling and projection. The standard plays a key role in cinematography by maintaining uniformity in film perforation and facilitating reliable film transport through cameras and projectors.
Key Topics
-
Perforation Types and Rows
ISO 3774:1988 covers two key perforation configurations for 35 mm film - the 8 mm Type S pattern with five rows at 1-3-5-7-0 and a special two-row pattern at 1-0. It defines the exact position and size tolerances essential for uniform perforation.
-
Cutting and Perforation Dimensions
The standard details the measurement specifications, including width and perforation pitch. Key dimensions such as the film width after trimming and the distance between perforations (pitch) are precisely defined with tight tolerances, supporting quality control.
-
Dimensional Stability and Tolerances
Emphasis is placed on tolerance levels to ensure consistent film performance. The standard includes guidance on dimensional stability considering environmental factors such as temperature and humidity, which can affect film size during storage and use.
-
Compatibility with Safety Film Standards
ISO 3774 references ISO 543, the standard for safety film, ensuring that cutting and perforation dimensions are compatible with safety film properties and quality requirements.
-
Additional Recommendations
The annex offers insights into factors affecting film stability, such as uniformity of perforations, the influence of humidity, and the importance of choosing the correct perforation pitch. It also defines "low-shrinkage film" to maintain dimensional stability post-processing.
Applications
-
Film Manufacturing and Processing
Manufacturers of 35 mm film stock use ISO 3774 to achieve precise cutting and perforating dimension standards necessary for consistent film quality and compatibility with cameras and projectors.
-
Camera and Projector Design
Cinematography equipment designers adhere to these standard perforation dimensions to ensure smooth film transport, accurate frame registration, and reliable perforation engagement.
-
Film Quality Control
Quality assurance teams implement these dimensional specifications to measure and monitor film perforation accuracy, addressing potential variations that could affect image stability.
-
Archival and Preservation
Archives and laboratories use the defined tolerances when inspecting and restoring older film reels to guarantee mechanical compatibility with modern playback devices.
-
Film Duplication and Printing
The defined pitches and tolerances are critical in film duplication processes to maintain frame alignment and avoid image distortion in copies.
Related Standards
-
ISO 543: Safety Film - Definition, Testing, and Marking
ISO 3774 is directly linked with ISO 543, ensuring that perforation and cutting dimensions are compatible with safety film characteristics.
-
ISO/TC 36 Cinematography Technical Committee
The committee responsible for developing ISO 3774 also manages related cinematography standards, supporting comprehensive film manufacturing and handling protocols.
-
Other Perforation Standards (e.g., 16 mm, 8 mm films)
While ISO 3774 addresses 35 mm film, other ISO standards exist for different film gauges and perforation types, maintaining consistency across formats.
Keywords: ISO 3774, 35 mm motion-picture film, film perforation dimensions, film cutting standards, cinematography film standard, Type S perforation, film manufacturing, film quality control, safety film ISO 543, film stability, film archival standard

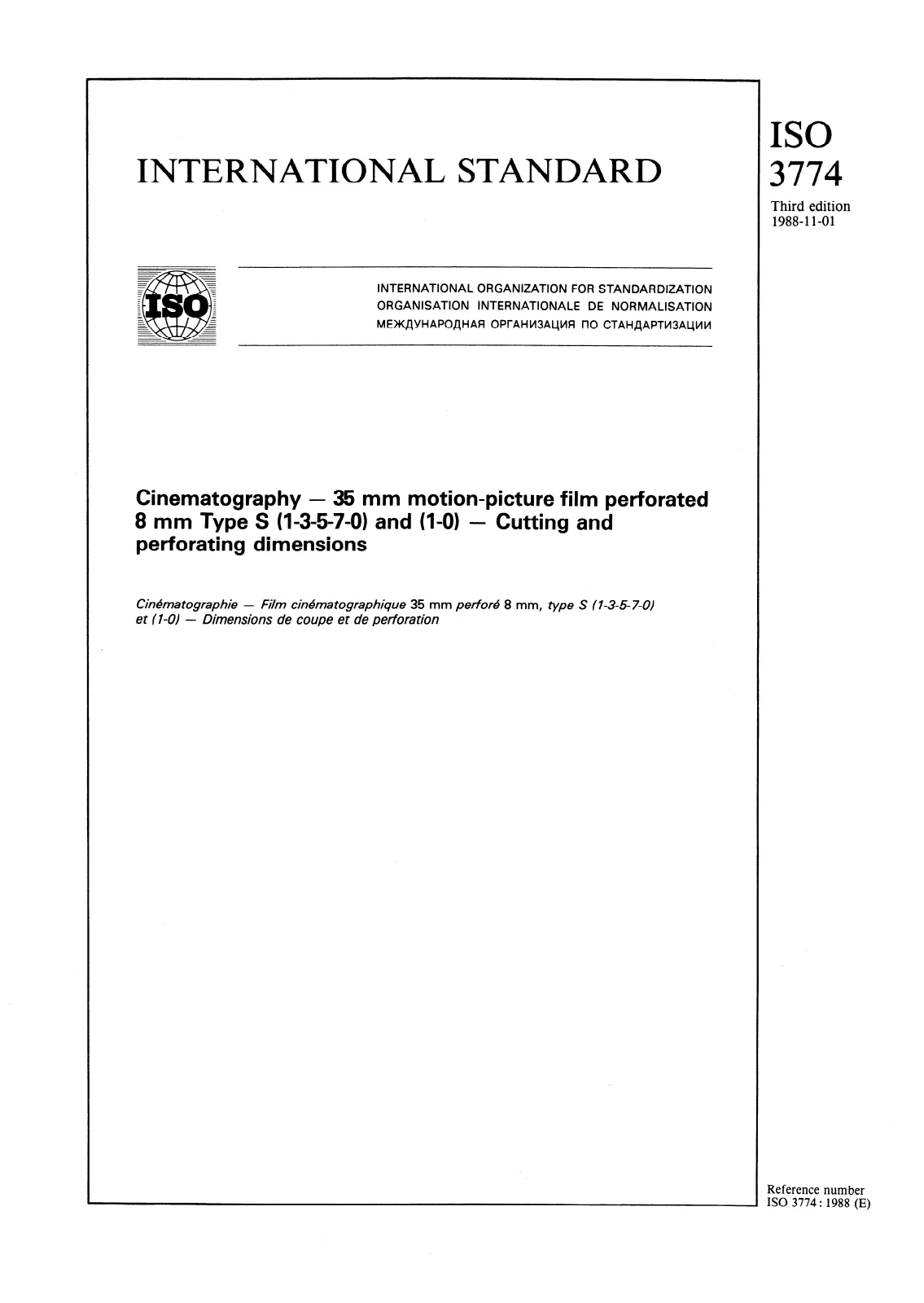

Open preview (PDF)Cinematography — 35 mm motion-picture film perforated 8 mm Type S (1-3-5-7-0) and (1-0) — Cutting and perforating dimensions
