Overview

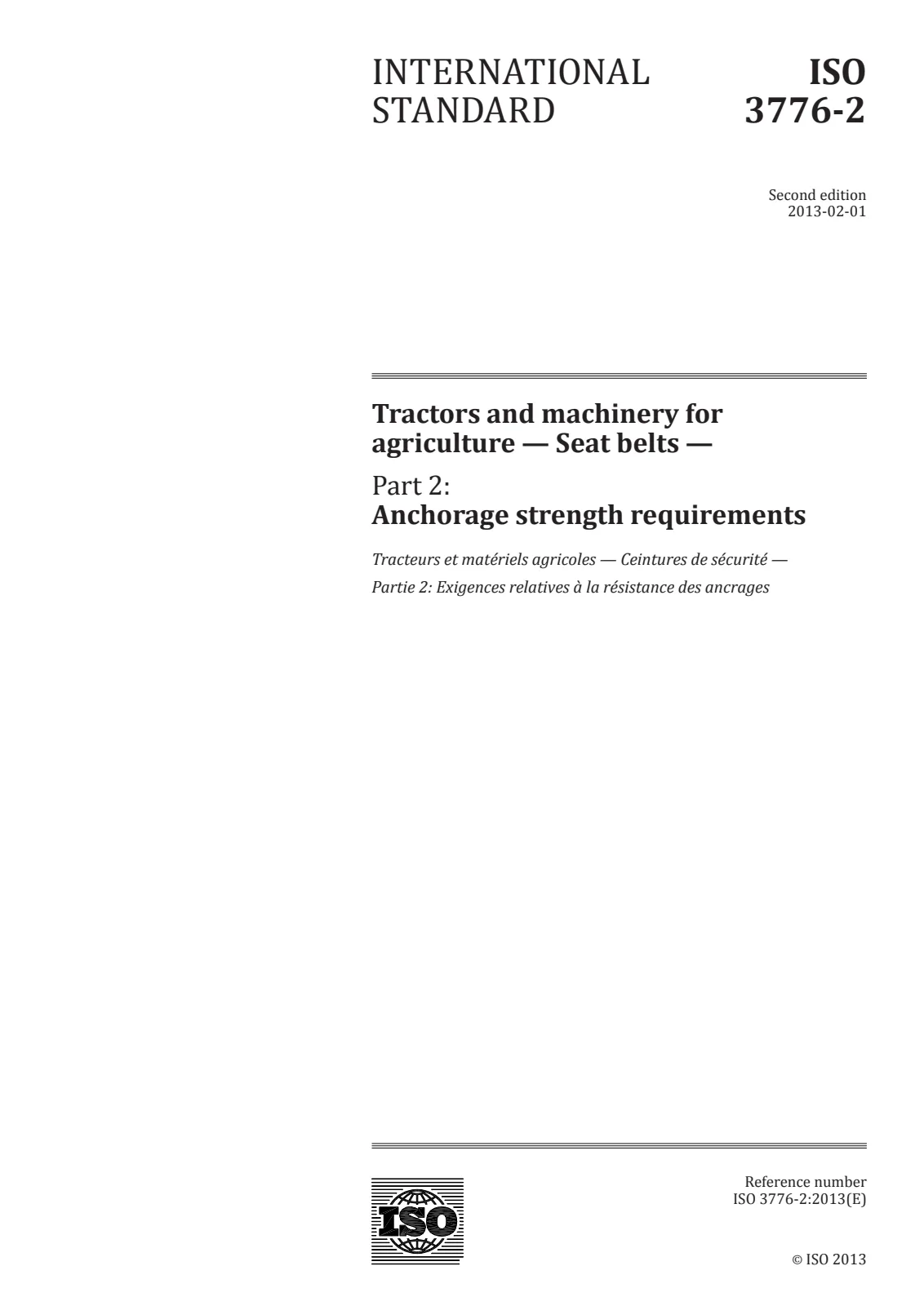

ISO 3776-2:2013 - "Tractors and machinery for agriculture - Seat belts - Part 2: Anchorage strength requirements" specifies minimum strength and testing requirements for seat belt anchorages used as pelvic restraint on agricultural tractors and self‑propelled machinery. The standard defines static test procedures, acceptance criteria, and the information required in test reports to verify that anchorages and associated seat mountings can transfer and withstand loads expected during normal operation and roll‑over events.
Key topics and technical requirements
- Scope: Strength requirements for pelvic restraint (seat) belt anchorages on agricultural tractors and self‑propelled machines.
- Test type: Static anchorage tests only (no dynamic crash testing).
- Load directions and magnitudes:
- Forward and upward at 45° ± 2°: 4 450 N applied to the seat belt anchorage.
- Rearward and upward at 45° ± 2°: 2 225 N applied to the seat belt anchorage.
- Seat‑transferred loads: If the seat transmits belt loads to the chassis, add:
- Forward: additional force = 4 × weight of applicable seat components (applied at 45°).
- Rearward: additional force = 2 × weight of applicable seat components (applied at 45°).
- Load application setup:
- Horizontal distance between load device and nearest anchorage ≥ 1 000 mm.
- Seat positioned in the worst longitudinal adjustment or mid‑position if worst not identified; suspended seats set at midpoint of suspension travel unless manufacturer states otherwise.
- Buckle release: At manufacturer request, buckle release force measured; buckle must open with a maximum force of 140 N after load application (equivalent if meeting ECE‑R16 or 77/541/EEC).
- Acceptance conditions: Permanent deformation is acceptable, but no failure that allows release of the belt assembly, seat, or locking mechanism. Seat adjuster need not be operable post‑test.
- Documentation: Test report per Annex A - includes applied forces, force/deflection curves, photos and drawings of mountings, and a certification statement.
Applications and users
ISO 3776-2:2013 is used by:
- Tractor and agricultural machinery manufacturers for design validation of seat belt anchorages.
- Test laboratories and certification bodies conducting compliance testing.
- Safety engineers and ROPS designers assessing operator restraint integration.
- Regulatory authorities and procurement teams specifying safety requirements.
Practical benefits include verifying anchorage robustness, harmonizing test methods with OECD tractor test codes, and supporting compliance with vehicle restraint regulations.
Related standards
- ISO 3776-1: Anchorage location requirements
- ISO 3776-3: Requirements for assemblies
- OECD Codes 4, 6, 7 (static protective structure tests)
- ECE Regulation No. 16 and Council Directive 77/541/EEC (buckle/assembly references)
Keywords: ISO 3776-2:2013, seat belt anchorage strength, tractors and machinery for agriculture, pelvic restraint, anchorage testing, ROPS, OECD harmonization.
