ISO 7176-4:2008 - "Wheelchairs - Part 4: Energy consumption of electric wheelchairs and scooters for determination of theoretical distance range" specifies standardized methods to measure electrical energy consumption and to calculate the theoretical distance range of electrically powered wheelchairs and scooters. The standard applies to vehicles with a maximum nominal speed ≤ 15 km/h and single-occupant design whose mass range is represented by ISO 7176-11. It also defines test report content and information disclosure requirements to support consistent comparison between models.
Key topics and technical requirements
- Test methods: Two complementary tests are specified - continuous driving (laps around a test track) and manoeuvring (repeated stop‑and‑turn runs between markers). Results produce theoretical range values analogous to “urban” and “extra‑urban” fuel economy figures.
- Test environment: Tests are conducted on a flat, hard, horizontal surface at ambient temperature 18 °C to 25 °C. Wheelchair must be conditioned for at least 8 hours at this temperature.
- Test track: Centreline length between 50 m and 100 m; preferred track width about 2.0 m; two markers spaced 5.00 m ± 0.01 m for manoeuvring tests and a central circular marker.
- Preparation & set‑up: Wheelchair set-up follows ISO 7176-22. Battery set must be fully charged per manufacturer’s instructions. Controller settings should be set to maximum available speed/acceleration if adjustable.
- Measurement equipment:
- Energy measurement apparatus capable of measuring energy supplied by the battery in watt‑hours (Wh) with accuracy ±2%, and internal consumption ≤ 0.5% of measured energy.
- Distance measuring device with accuracy ±100 mm for centreline length.
- Procedure notes: Warm‑up laps (10 clockwise + 10 anti‑clockwise) are required before testing; energy recorded over test laps is used to calculate specific energy consumption (Wh/km) and theoretical range using nominal battery energy capacity.
- Reporting & disclosure: Test reports must include measured energy consumption, track length, test conditions, battery capacity and calculated theoretical ranges. Disclosure requirements align with other ISO 7176 documentation.
Applications and users
- Manufacturers - product development, performance claims, and compliance documentation.
- Test laboratories - standardized test methods for independent verification and comparison of models.
- Procurement and specifiers - objective data for selecting wheelchairs and scooters based on theoretical range.
- Rehabilitation engineers and clinicians - understanding limitations and comparing mobility device performance.
- Regulators and conformity bodies - assessing compliance and information disclosure.
Related standards
Keywords: ISO 7176-4:2008, energy consumption, electric wheelchairs, theoretical distance range, wheelchair testing, battery capacity, manoeuvring test, continuous driving.

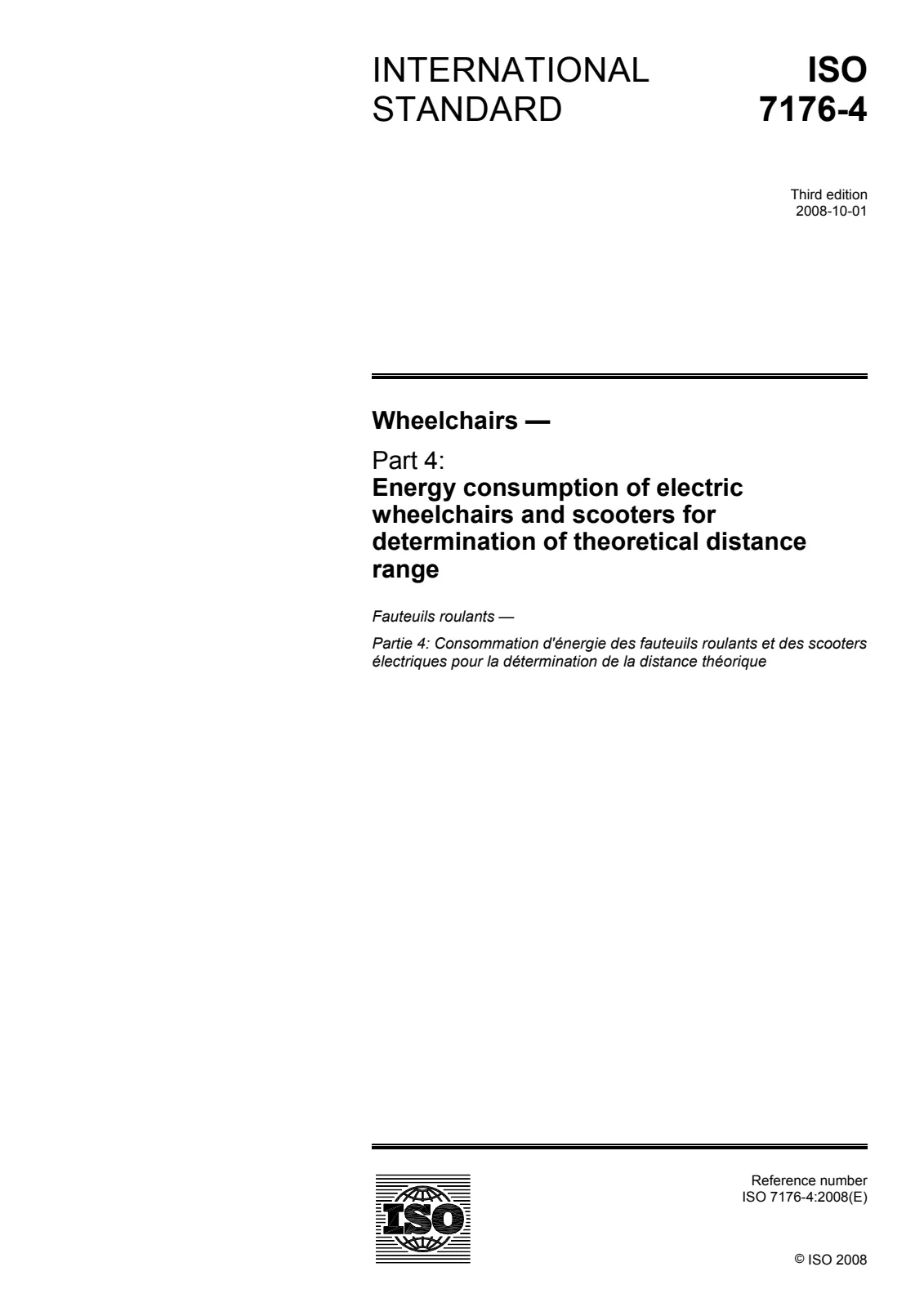

Open preview (PDF)Wheelchairs — Part 4: Energy consumption of electric wheelchairs and scooters for determination of theoretical distance range
