Overview
ISO 7752-2:2025 - "Cranes - Control layout and characteristics - Part 2: Basic arrangement and requirements for mobile cranes" specifies the basic control arrangement, movement directions and functional requirements for controls on mobile cranes (as defined in ISO 4306-2). Published as the third edition, it updates control layouts to include telescoping and luffing fly jibs and complements ISO 7752-1 (general principles). The standard aims to reduce operator confusion and improve safety and interoperability when operators move between different mobile crane models.
Key topics and technical requirements
- Control arrangement and direction of movement: Defines the location and directional movement for primary crane controls such as slewing, hoisting (lifting/lowering), boom luffing and telescoping. (Examples from the standard: pushing the slewing lever forward slews towards the boom; pulling hoisting levers back lifts the load.)
- Bi-directional and cross-shift (multi-directional) controls: Covers both two-direction levers and multi-axis cross-shift levers for cranes with fixed-length and telescoping booms, including selection-switch behavior.
- Ergonomics and accessibility: Controls must be within easy reach of the operator at the control station and designed to minimize fatigue, consistent with ISO 7752-1.
- Control safety features:
- Neutral return: levers and pedals must return to neutral automatically when released.
- Preventing duplicate assignments: means to ensure the same function is not available on multiple levers simultaneously.
- Indicators for multi-function selectors and requirements for illumination or cabin lighting for night visibility.
- Winch convention: Hoisting 1 and Hoisting 2 denote primary and secondary winch movements; the primary hoisting control should be on the right-hand side.
- Remote control stations and optional arrangements: Includes provisions for remote control stations and alternative layouts (e.g., foot-pedal luffing arrangements).
Applications and practical value
- Ensures consistent control layout across mobile crane models to reduce human error during operation and in emergencies.
- Useful for manufacturers designing operator cabins, control consoles, and remote-control interfaces to meet international expectations for ergonomics and safety.
- Guides fleet managers, safety engineers and training organizations to standardize operator instruction, reduce transition risks when crews move between crane types, and support compliance and procurement decisions.
Who should use this standard
- Mobile crane manufacturers and OEM engineers
- Cab/control-system designers and integrators
- Safety managers, inspection authorities and certification bodies
- Crane operators, trainers and fleet procurement teams
Related standards
- ISO 7752-1 - Cranes: Control layout and characteristics - Part 1: General principles
- ISO 4306-2 - Cranes: Vocabulary - Part 2: Mobile cranes
Keywords: ISO 7752-2:2025, mobile crane controls, control layout, bi-directional levers, cross-shift levers, slewing, hoisting, boom luffing, telescoping, operator ergonomics, crane safety.

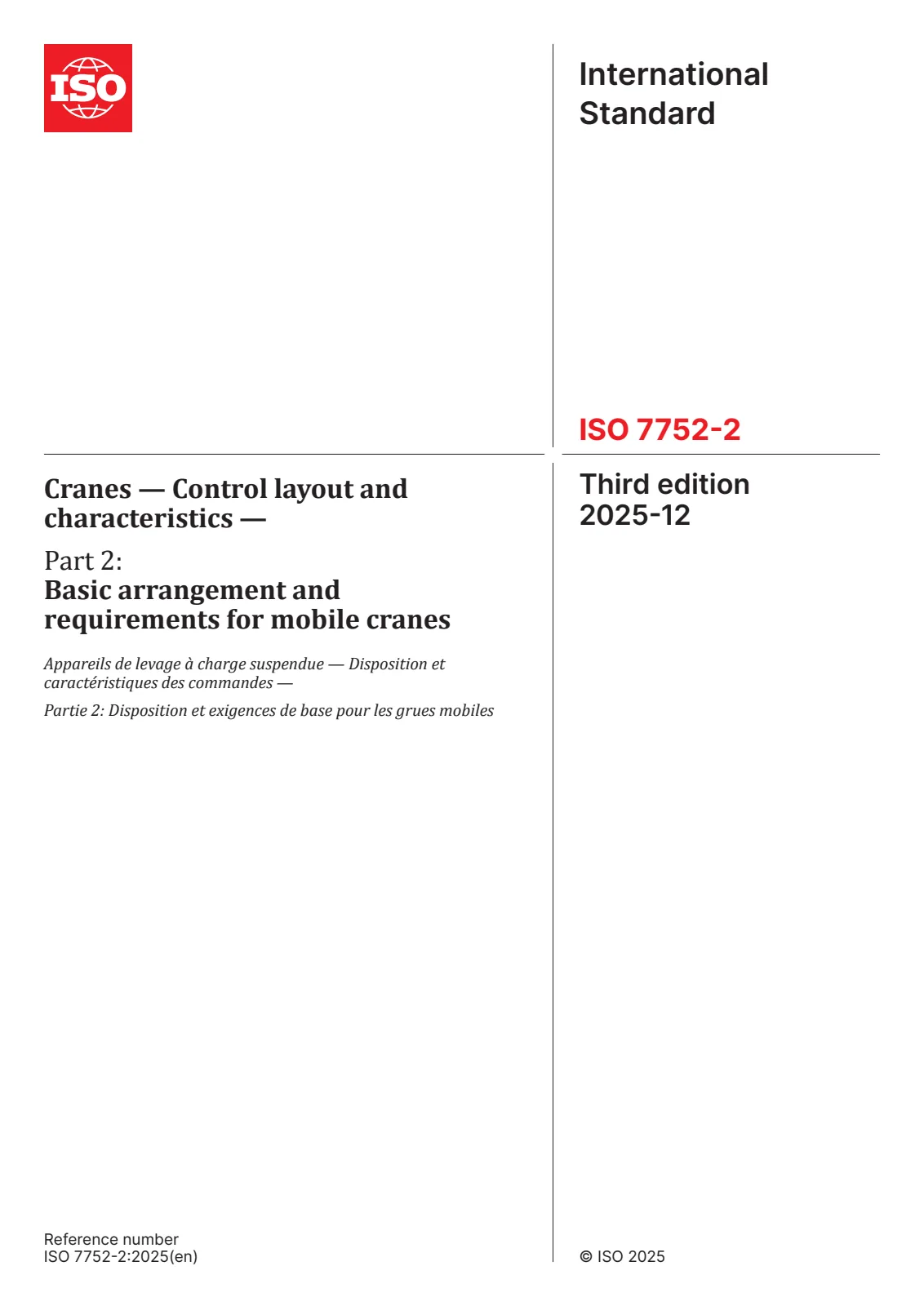

Open preview (PDF)Cranes — Control layout and characteristics — Part 2: Basic arrangement and requirements for mobile cranes
