Overview

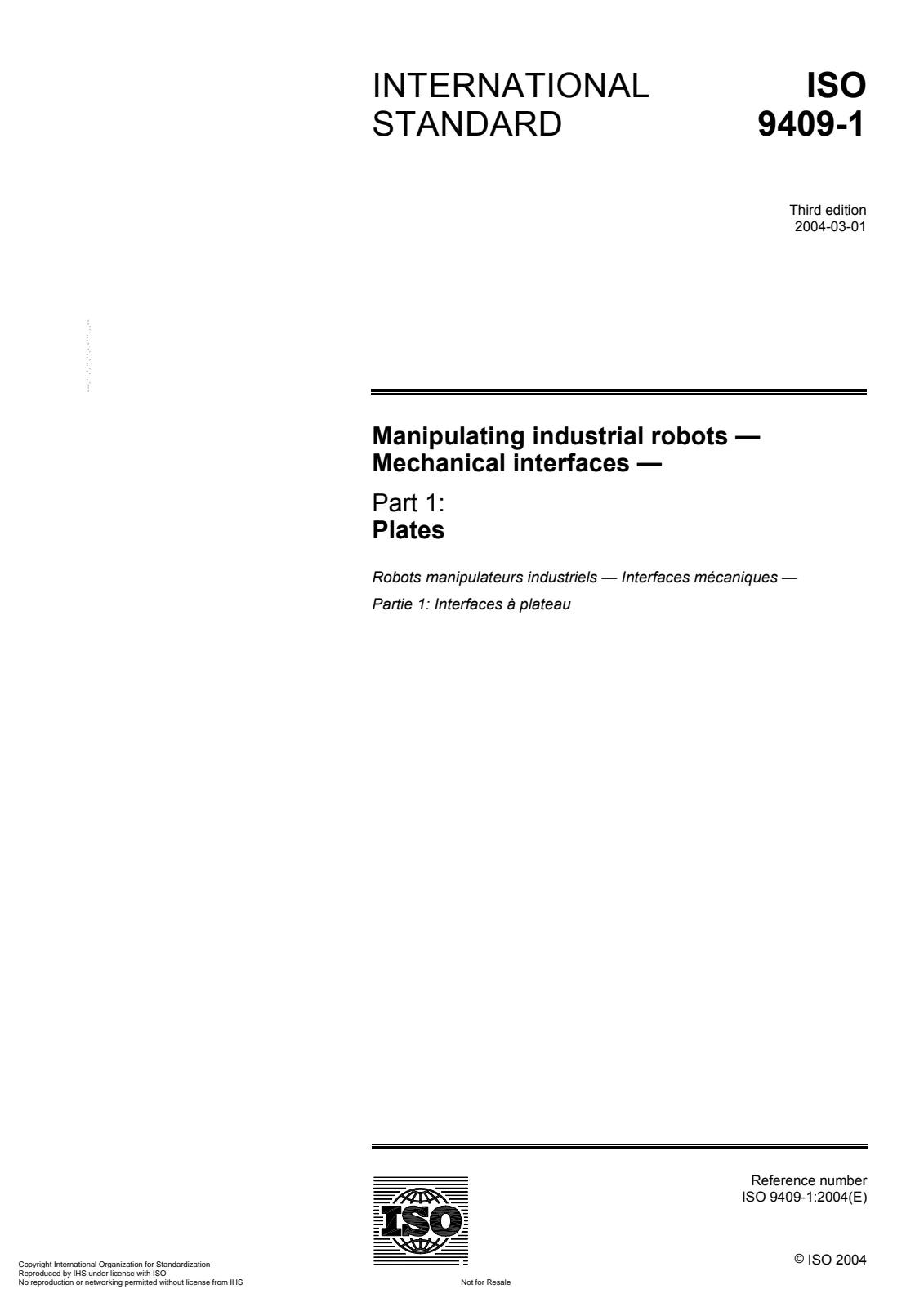

ISO 9409-1:2004 is an international standard established by the International Organization for Standardization (ISO) that defines mechanical interfaces for manipulating industrial robots. Specifically, Part 1 of this standard focuses on circular plates used as mechanical interfaces for mounting end effectors, such as grippers or tools, onto robot arms. This standard aims to ensure interchangeability and maintain the correct orientation of hand-mounted end effectors across different robots and applications.
The standard details the main dimensions, designation system, and marking requirements for these circular plates. Importantly, ISO 9409-1:2004 does not specify load-carrying capacities or other coupling device requirements, as the selection of the appropriate interface and load capacity depends on particular use cases and robot specifications. This promotes flexibility in design while maintaining consistency in interface dimensions.
Key Topics
- Mechanical Interface Dimensions: Defines precise dimensions for circular plates, including pitch circle diameters, hole sizes, and tolerances to guarantee compatibility and reproducibility.
- Designation and Marking: Establishes a coding system for plates based on pitch circle diameter, number of holes, and thread size (e.g., ISO 9409-1–160–6–M10) to facilitate clear identification and traceability.
- Tolerances and Fits: Specifications conform to ISO 286 for limits and fits, and ISO 1101 for geometric tolerancing, ensuring accurate manufacturing and assembly.
- Location and Orientation: Recommends a single centering diameter and location pin hole aligned with the mechanical interface coordinate system for precise positioning of end effectors.
- Threaded Holes: Specifies thread types in accordance with ISO 261, ensuring standardized screw threads for secure attachment.
- Service Line Routing: Addresses design considerations for hollow centers in plates to allow routing of service lines such as electrical cables or pneumatic tubes.
- Compliance with Related Standards: References additional ISO standards for terminology, coordinate systems, and tolerancing to maintain a comprehensive and consistent framework.
Applications
ISO 9409-1:2004 is highly relevant for industries and sectors that rely on industrial automation and robotic manipulation, including:
- Robotics Manufacturing: Facilitates the design of universal and interchangeable end effectors across different robot models and manufacturers.
- Automotive Assembly Lines: Enables quick and reliable swapping of tools or grippers for diverse assembly tasks.
- Material Handling Systems: Supports flexible integration of pick-and-place or master-slave units with standardized interfaces.
- Robotic Research and Development: Provides a foundational mechanical interface reference to ensure prototype compatibility with commercial robotic systems.
- Maintenance and Upgrades: Simplifies the replacement or upgrading of end effectors by standardizing mechanical coupling dimensions.
By adhering to ISO 9409-1:2004, organizations can enhance efficiency, reduce downtime, and lower costs associated with custom interfaces or misaligned tooling.
Related Standards
ISO 9409-1:2004 is part of a series on mechanical interfaces for industrial robots, and it aligns with several other essential ISO standards:
- ISO 9409-2: Mechanical interfaces for shafts, complementing Part 1’s plate interfaces.
- ISO 8373: Vocabulary for manipulating industrial robots, ensuring consistent terminology.
- ISO 9787: Defines coordinate systems and motion nomenclatures used in robotic interfaces.
- ISO 261: General-purpose metric screw threads, providing thread specifications for mounting.
- ISO 286 (Part 1 & 2): System of limits and fits for defining tolerances in manufacturing.
- ISO 1101: Geometrical tolerancing, dictating form, orientation, and position tolerances for mechanical components.
Together, these standards form a cohesive framework facilitating global interoperability and safety in the robotics field.
